TZT12F
MSRP: $3,195.00

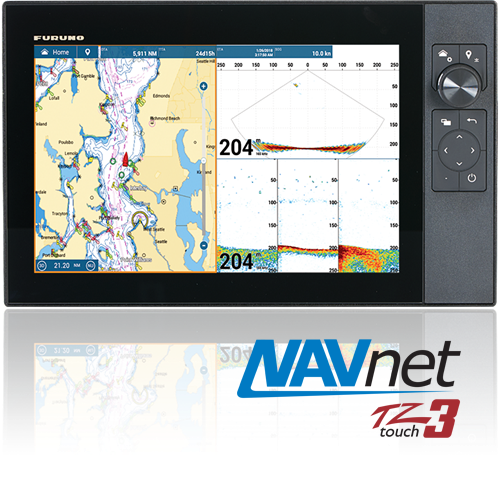

NavNet TZtouch3 Chart Plotter/Fish Finder - 1kW Dual Channel TruEcho CHIRP™, 12" Hybrid Control IPS Display
Chart TypeVector or Raster or Satellite Photo or 3D Data or C-Map or CMOR
Display Size12 inches
Display TypeColor Multi Touch LCD
FrequencyCW 50-200kHz or CHIRP 40kHz to 225kHz
Power Usage12-24 VDC
Power Output300 W or 600 W or 1 kW
Receiver TypeGPS or SBAS or WAAS-GPS
Prices and Specifications Subject to Change Without Notice.
All prices shown are in USD. Prices are valid in US and Canada only.
Frequently Asked Questions
Can't find what you are looking for?
Maybe try the forum or register your product.
Software Downloads
Download our latest drivers, software, and instructional software files for this product view Terms and Conditions
Software for TZT12F
- UHD Digital Radar Sensors
- Cables
- Related Products
- CHIRP Transducers
- Transducers
- Bottom Discrimination Transducers
- Smart Sensors
- Miscellaneous Accessories
UHD Digital Radar Sensors
UHD Digital Radar Sensors
NEW-12V-24V-7A is required for DRS6AX/DRS12AX/12ANXT/25ANXT on 12VDC vessels or DRS6ANXT for cable runs longer than 10M
NEW-12V-24V-16A is required for DRS25AX on 12VDC vessels and can also be used with DRS12ANXT/DRS25ANXT.
24" Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less cable
Cables
Cables
Related Products
Related Products
Self-Learning, Adaptive Autopilot for Outboards, Double-Din Size Display with Furuno Fantum Feedback
Self-Learning, Adaptive Autopilot - Single-Din Size Color Display for Outboards
Digital (FDF) Black Box Fish Finder Module with Bottom Discrimination for NavNet 3D and TZtouch w/5M LAN Cable, Less Transducer (600W or 1kW)
External Black Box Weatherfax & Navtex Receiver w/5M PC Crossover Cable, Less Antenna
Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable
4.3" Color LCD Navigational Data Organizer - NMEA2000 & NMEA0183 compatible, w/6M NMEA2000 Cable
CHIRP Transducers
CHIRP Transducers
Transducers
Transducers
To use 10-pin transducers use 000-197-069-10 (10-pin to 12-pin adapter cable) that is included with your TZtouch 3 MFD.
These transducers enable all standard Fish Finder features including RezBoost, but DO NOT support Bottom Discrimination.
To utilize the Bottom Discrimination mode of the TZTL12F please select a transducer from the "Bottom Discrimination Transducers" list.
Stainless Steel Thru-Hull, Flush Mount Transducer, 600W (10-Pin), 20° Tilted Element
Bronze Thru-Hull Transducer with Temp and High-Speed Fairing Block, 1 kW (10-Pin)
Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 20-degree Tilted Element
Stainless Steel Thru-Hull Transducer with Temp and Fairing Block, 1 kW (10-Pin)
Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element
Bottom Discrimination Transducers
Bottom Discrimination Transducers
To use 10-pin transducers use 000-197-069-10 (10-pin to 12-pin adapter cable) that is included with your TZtouch 3 MFD.
These transducers enable all Fish Finder features noted in the description, INCLUDING Enhanced RezBoost and Bottom Discrimination.
If you will not be using the Bottom Discrimination mode, you can also select a transducer from the standard Transducer List.
Note that the CA50/200-12M and CA50/200-1T require the use of MB1100 Transducer Matching Box.
Bronze Thru-Hull Multisensor with High-Speed Fairing Block, 600W (10-Pin)
Airmar B744V Housing Style Transducer
Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer
Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element
Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element
Bronze Thru-Hull Transducer with Temp, Built-in Diplexer and Hi-Speed Fairing Block, 1kW (10-Pin)
