DRS25ANXT/4
MSRP: $9,270.00
200 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, with 4' antenna
Antenna Size4 ft
Antenna TypeOpen Array
BandX-Band
Beam Width1.9 degrees
Power Usage24 VDC
Power Output200 W
Prices and Specifications Subject to Change Without Notice.
All prices shown are in USD. Prices are valid in US and Canada only.

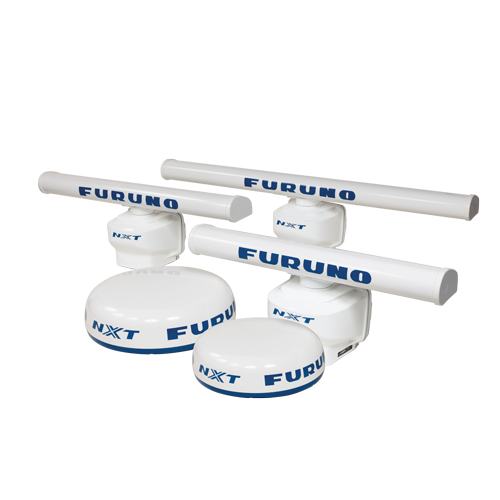

The NXT step with doppler Radar technology
The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.
NXT Radars are compatible with NavNet TZtouch, TZtouch2, TZtouch3, TZtouchXL, and the FR10/FR12 Radar Series.
Target Analyzer function utilizing Doppler technology
NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.
Fast Target Tracking
Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.
RezBoost Beam Sharpening
For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.
Bird Mode gives you the inside scoop on schools of fish!
The DRS-NXT series features an enhanced Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird Mode adjusts the gain and sea settings automatically for optimal visibility.
Take a First Look
Take a First Look at the DRS25ANXT Solid-State Doppler Radar
