DT-800MSF

MSRP: $395.00

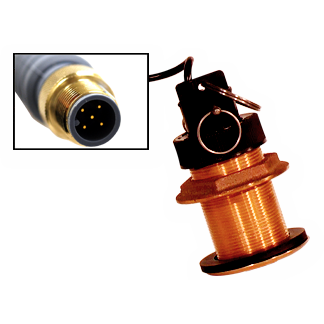

Bronze Thru-Hull, Digital Depth and Temp Sensor, NMEA2000

Data TypeNMEA2000

Frequency235 kHz

Housing TypeBronze

Install TypeThru Hull

Prices and Specifications Subject to Change Without Notice.

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products DT-800MSF

Transducer Features

Airmar B617V Housing Style Transducer

Designed with Airmar’s exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100 W RMS provides spot-on depth readings in as little as 0.45 m (1.4’) of water and can reach depths up to 180 m (600’).

Standard Features

  • Depth and temperature in one compact bronze housing
  • Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
  • Weight: 1.5 kg (3.4 lb)
  • Acoustic Window: Urethane
  • Data Update Rate: 1 per second
  • Minimum Sounding Depth: 0.5 m (1.6’)
  • Maximum Sounding Depth: 180 m (590’)
  • Pressure Rating: 3 m (10’)
  • Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
  • Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
  • Supply Current: 40 mA
  • 6-Meter Cable with NMEA2000 Connector
  • NMEA 2000® Load Equivalency Number (LEN): 4
