MSRP: $2,195.00

Adaptive Autopilot with 4.1" Color LCD and Gesture Controller

Display Size4.1 Inches

Display TypeColor LCD

Power Usage12-24 VDC

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products NAVPILOT 300--PG

NavPilot 300 is not your ordinary Autopilot

The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.

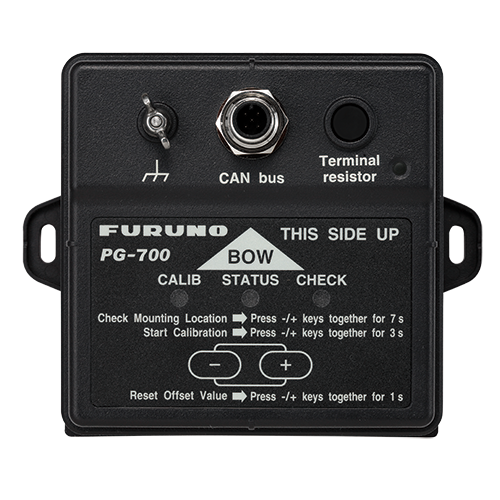

The NavPilot 300/PG includes the PG700 Fluxgate Compass Heading Sensor with magnetic field distortion correction, providing highly accurate and stable heading information.

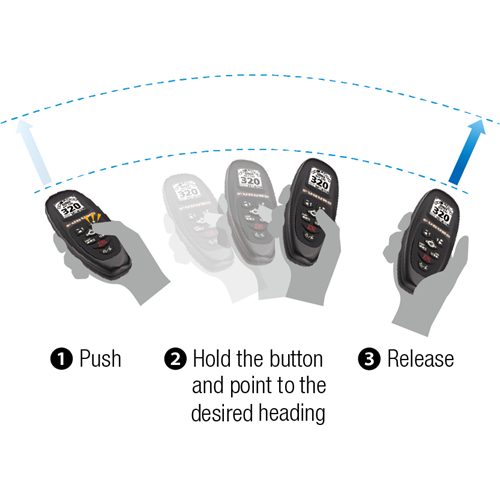

Gesture Control - just push, point and shoot!

The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!

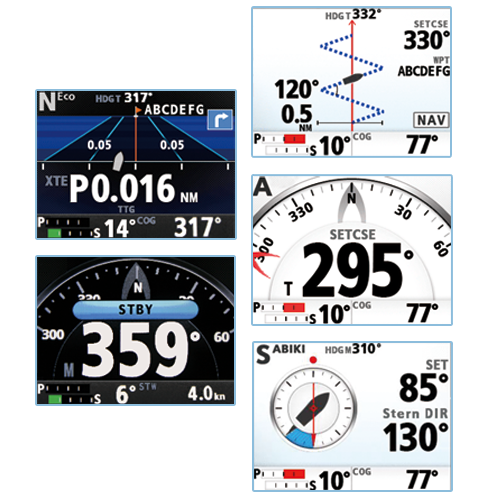

Versatile Display Modes on a vivid 4.1" Color LCD Display

The SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.

Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).

Put more fish in the boat with high-precision FishHunter™ Drive

A Furuno and Suzuki partnership delivers new FishHunter™ Drive features leveraging Suzuki's Precision Control, which automatically adjusts tilt and trim at designated engine RPM. FishHunter™ Drive features are available on the NavPilot 300 with a range of Suzuki outboards outfitted with both hydraulic steering and Dometic Optimus Electronics steering systems, including the DF140BG, DF115BG, DF150AP, DF175AP, DF200AP, DF250AP, DF300AP, DF300B, DF325A, and DF350A.

With Speed Control, the boat will run at a preset speed, adjusting engine RPM as needed to account for changes in wind and tide to maintain a constant speed.

Route Smoothing™ decreases the speed of turns as the boat approaches waypoints while navigating an active route. If the boat speed is too fast when approaching a turn, the boat can overshoot the waypoint, resulting in an undesirable deviation.

Point Lock™ maintains a fixed boat position by controlling the rudder and throttle, countering the effects of wind and current which are constantly working to move the boat. Point Lock™ is an invaluable tool for fishing a wreck or reef, and is also for boaters who occasionally have to wait for a bridge to open so they can pass.*

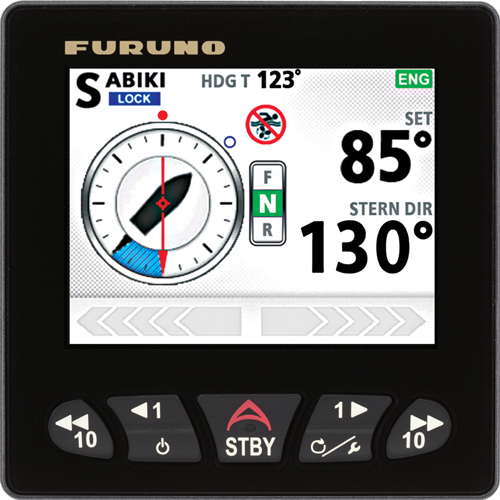

SABIKI™ Lock is designed for fishermen and takes advantage of the SABIKI™ fishing mode available with the NavPilot 300 Autopilot. With Furuno’s SABIKI™ mode, the helm is steered automatically by the NavPilot to maintain vessel position while the angler needs only to adjust the throttle to maintain a fixed position. FishHunter™ Drive's new SABIKI™ Lock expands upon this functionality by controlling both the rudder and throttle to maintain vessel heading, freeing the angler to focus 100% on jigging and other vertical fishing.

 * Point Lock feature requires a Rudder Reference Unit (RRU) or Dometic Steering with built-in RRU

Powerful new tools enhance safety and comfort

The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot. The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.

SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.

Furuno Fantum Feedback

With Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.

NavPilot 300 First Look

Join Capt. Matt Watson as he takes you on a tour of the NAVpilot 300 AutoPilot with Gesture Controller. Learn how easy it is to set and adjust your course and how to easily steer your boat with a click, point, and release of the Gesture Controller. You will also see how to operate the SABIKI™ Mode with the Gesture Controller while standing at the stern of the boat.

Integrate your helm with NavPilot's FishHunter mode

FishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).

 *RRU (Rudder Reference Unit) required to enable Fish Hunter mode on NavPiot 711C/OB models
 *FishHunter mode and NavPilot 300's FishHunter Drive for Suzuki Outboards are different features with their own requirements

  • Product Consists Of
  • Cables
  • Autopilot Pumps
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

Adaptive Autopilot with 4.1" Color LCD and Gesture Controller

Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable



NMEA2000 Heavy Cable, 1 Meter, Male-Female connectors
NMEA2000 Heavy Cable, 2 Meter, Male-Female connectors
NMEA2000 Heavy Cable, 6 Meter, Male-Female connectors
NMEA2000 Micro Cable, 1 Meter, Female Connector + Pigtail
NMEA2000 Micro Cable, 2 Meter, Female Connector + Pigtail

Autopilot Pumps

Autopilot Pumps

600CC/MIN OCTOPUS PUMP, 12V, 0.6 Cubic Inches per second (For Ram sizes less than 8 Cubic Inches in volume)
1,000CC/MIN OCTOPUS PUMP, 12V, 1.0 Cubic Inches per second (For Ram sizes from 7-12 Cubic Inches in volume)
1,600CC/MIN OCTOPUS PUMP, 12V, 1.6 Cubic Inches per second (For Ram sizes from 15.1 - 24 Cubic Inches in volume)
24 0.5 CUBIC INCH P/SEC PUMP 24V (For Ram Sizes less than 8 Cubic Inches in Volume)

Autopilot Pump, 24 VDC, 1.1 Cubic Inches Per Second (For Ram Sizes of Up to 13 Cubic Inches in Volume)

Miscellaneous Accessories

Miscellaneous Accessories

NavPilot 300 Gesture Controller
NMEA2000 T-Connector, Female/Female/Male
NMEA2000 Micro Terminator, Male
NMEA2000 Micro Terminator, Female

Rudder Reference Unit for NAVpilot


Optional interface kit that allows NavPilot 700 series to control Volvo Penta IPS Systems


Junction Box - NMEA2000


NavPilot 700 Series Power Steering Module, for use with HRP-style pumps only

Bracket Kit for NavPilot 300

Recommended Additions

  • GP1971F

    9" Multi Touch GPS/WAAS Chart Plotter with CHIRP and Conventional Fish Finder
  • TZT14


    NavNet TZtouch 14.1" Multi Touch, Multi Function Display W/3M LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)
    Stock of new TZT14 units has been depleted, but Refurbished units are available at a discounted price - see TZT14-REFURB

  • TZTL12F


    NavNet TZtouch2 Chart Plotter/Fish Finder, 12" Touch Screen Display

  • TZTL15F


    NavNet TZtouch2 Chart Plotter/Fish Finder, 15" Touch Screen Display

  • SC33

    Compact Dome Satellite Compass, NMEA2000 (0.4 degree Heading Accuracy) w/6M Cable

NAVpilot 300-711C Brochure

For more information, including dimensions and product specifications, download the brochure.
