NAVPILOT 300-IPS

No Longer Available

MSRP: $0.00

NavPilot 300 Volvo Penta IPS Pack

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products NAVPILOT 300-IPS

Steer By Wire for Volvo-Penta IPS

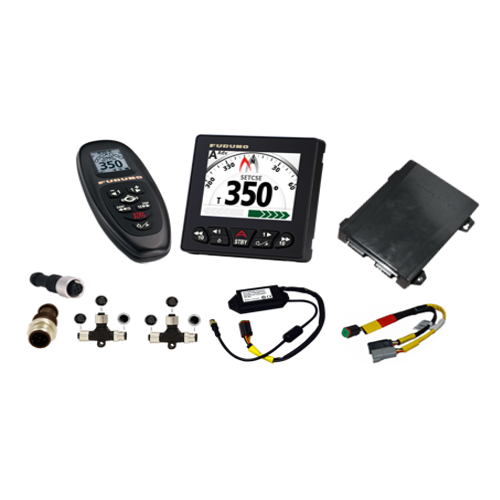

The NavPilot 300-IPS is a complete NavPilot 300 system with all of the necessary components, cables and gateways to connect to a Volvo-Penta IPS system (not included).

NavPilot 300 is not your ordinary Autopilot

The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.

(Note: A Furuno PG700, SC33 or other compatible NMEA2000 vessel heading source is required.)

Gesture Control - just push, point and shoot!

The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!

Versatile Display Modes on a vivid 4.1" Color LCD Display

The SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.

Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).

Put more fish in the boat with high-precision FishHunter™ Drive

A Furuno and Suzuki partnership delivers new FishHunter™ Drive features leveraging Suzuki's Precision Control, which automatically adjusts tilt and trim at designated engine RPM. FishHunter™ Drive features are available on the NavPilot 300 with a range of Suzuki outboards outfitted with both hydraulic steering and Dometic Optimus Electronics steering systems, including the DF140BG, DF115BG, DF150AP, DF175AP, DF200AP, DF250AP, DF300AP, DF300B, DF325A, and DF350A.

With Speed Control, the boat will run at a preset speed, adjusting engine RPM as needed to account for changes in wind and tide to maintain a constant speed.

Route Smoothing™ decreases the speed of turns as the boat approaches waypoints while navigating an active route. If the boat speed is too fast when approaching a turn, the boat can overshoot the waypoint, resulting in an undesirable deviation.

Point Lock™ maintains a fixed boat position by controlling the rudder and throttle, countering the effects of wind and current which are constantly working to move the boat. Point Lock™ is an invaluable tool for fishing a wreck or reef, and is also for boaters who occasionally have to wait for a bridge to open so they can pass.*

SABIKI™ Lock is designed for fishermen and takes advantage of the SABIKI™ fishing mode available with the NavPilot 300 Autopilot. With Furuno’s SABIKI™ mode, the helm is steered automatically by the NavPilot to maintain vessel position while the angler needs only to adjust the throttle to maintain a fixed position. FishHunter™ Drive's new SABIKI™ Lock expands upon this functionality by controlling both the rudder and throttle to maintain vessel heading, freeing the angler to focus 100% on jigging and other vertical fishing.

 * Point Lock feature requires a Rudder Reference Unit (RRU) or Dometic Steering with built-in RRU

NavPilot 300 First Look

Join Capt. Matt Watson as he takes you on a tour of the NAVpilot 300 AutoPilot with Gesture Controller. Learn how easy it is to set and adjust your course and how to easily steer your boat with a click, point, and release of the Gesture Controller. You will also see how to operate the SABIKI™ Mode with the Gesture Controller while standing at the stern of the boat.

  • Product Consists Of
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

THIS PRODUCT CONTAINS QUANTITY 3 AIR-052-531 AND QUANTITY 1 OF ALL OTHER ITEMS
$1,695.00
Adaptive Autopilot with 4.1" Color LCD and Gesture Controller
$795.00

Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable

$22.00
NMEA2000 Micro Terminator, Female
$22.00
NMEA2000 Micro Terminator, Male
$47.00
NMEA2000 T-Connector, Female/Female/Male
$2,295.00
VOLVO-IPS GATEWAY W/O IF UNIT*
$175.00
FAP63XX Y SPLIT MULTILINK CBL
$1.00
NavPilot 300-IPS Document

Miscellaneous Accessories

Miscellaneous Accessories

$1.00
NavPilot 300-IPS Document
