NAVPILOT 711C/OB

MSRP: $2,670.00

Self-Learning, Adaptive Autopilot - Single-Din Size Color Display for Outboards

Display TypeColor LCD

Power Usage12-24 VDC

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products NAVPILOT 711C--OB

Powerful new tools enhance safety and comfort

The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot. The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.

SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.

Integrate your helm with NavPilot's FishHunter mode

FishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).

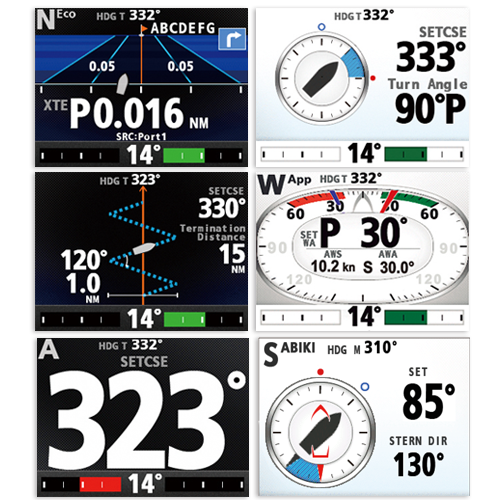

Beautiful & bright color LCD display

The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.

Furuno Fantum Feedback

With Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.

Sabiki Mode for NavPilot 711C

With the brand new SABIKI mode, your NAVpilot 711C has just become even more capable than before. SABIKI mode lets the autopilot control while you are drifting astern so you can focus on fishing instead of steering. Moving astern at a slow pace, the SABIKI mode is uniquely tailored for sabiki fishing, jigging and bottom fishing. Sabiki fishing requires a bit of technique, and no matter if you just started or have considerable experience, the SABIKI mode will help you catch the bait fish needed for the big catch. And the best thing, there is no need to install additional hardware or sensors. Just perform the automated software upgrade, and the SABIKI mode will be added to your NAVpilot 711C. SABIKI mode is only available on vessels with outboard engines.

  • Product Consists Of
  • Cables
  • Related Products
  • Autopilot Pumps
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$850.00

CONTROL UNIT NAVPILOT 711C *

$1,525.00

Processor Unit for NAVpilot 700 Series

$995.00

Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable

Cables

Cables

$105.00
CTRL CBL 10M PIGTAIL FAP7001
$145.00
CTRL PIGTAIL 15M W/CON FAP7001
$165.00
CTRL CBL 20M PIGTAIL FAP7001
$145.00
CTRL CBL 10M W/CONN FAP7001
$150.00
CTRL CBL 20M W/CONN FAP7001

Related Products

Related Products

$1,595.00
Jog-Lever Remote Control (Non Follow-Up Type) with 10-Pin Connector for Connection to the FAP6800
$1,295.00
Handheld, Jog-Lever Remote Control (Non Follow-Up Type) with Bare Wires for Connection to the Processor Junction Box
$295.00
Dodge-Type Remote Control (Non Follow-Up Type) with 10-Pin Connector for Connection to the FAP6800
$295.00
Dodge-Type Remote Control (Non Follow-Up Type) with Bare Wires for Connection to the Processor Junction Box
$245.00

Remote Control Distributor Box, Three Port

$1,250.00

Optional 4.6" LCD Display/Control Unit for Multi-Station System (Six Displays Max). Includes Installation Materials with 10 Meter Interconnect Cable

$850.00

CONTROL UNIT NAVPILOT 711C *

$850.00

2ND CTRL UNIT NAVPILOT 711C *

$850.00

Handheld Control Unit for NAVpilot 720

$850.00

Optional 3.6" LCD Display/Control Unit for Multi-Station System (Six Displays Max). Includes Installation Materials with 10 Meter Interconnect Cable

$1,050.00

Follow Up Lever Controller

$850.00
Non-Follow Up Lever Controller

Autopilot Pumps

Autopilot Pumps

$750.00
0.5 CUBIC INCH P/SEC PUMP 12V (For Ram Sizes less than 8 Cubic Inches in Volume)
$750.00
24 0.5 CUBIC INCH P/SEC PUMP 24V (For Ram Sizes less than 8 Cubic Inches in Volume)
$750.00

Autopilot Pump, 12 VDC, 1.1 Cubic Inches Per Second (For Ram Sizes of Up to 13 Cubic Inches in Volume)

$750.00

Autopilot Pump, 24 VDC, 1.1 Cubic Inches Per Second (For Ram Sizes of Up to 13 Cubic Inches in Volume)

$750.00

Autopilot Pump, 12 VDC, 1.7 Cubic Inches Per Second (For Ram Sizes of 14 Cubic Inches to 25 Cubic Inches in Volume)

$750.00

1.7 CUBIC INCH P/SEC PUMP 24V

$1,350.00

0-3.5 CU IN/SEC ADJ PUMP 12V

$1,350.00

0-3.5 CU IN/SEC ADJ PUMP 24V

$2,250.00
LIN. ACTUATOR PUMP 9" RAM 12V
$3,000.00
Linear Actuator, 9" Ram,12V

Miscellaneous Accessories

Miscellaneous Accessories

$200.00

Mercury Verado Auto Pilot Hydraulic Hose Kit, 3 FT

$275.00

Mercury Verado Auto Pilot Hydraulic Hose Kit, 6 FT

$125.00
Remote Junction Box, FAP7021
$425.00
Teleflex Linear Outboard Rudder Reference Unit, 8 Inch Stroke
$35.00
TERMINATOR NAVPILOT 700
$1,900.00

YAMAHA HM IF KIT NP 700/711

$950.00

NavPilot 700 Series Power Steering Module

$1,500.00

Optional interface kit that allows NavPilot 700 series to control Volvo Penta IPS Systems

Manuals

Manuals

$40.00
INST MNL NAVPILOT 700/711/720
$50.00
OP MANUAL NAVPILOT 700/711/720

Recommended Additions

NavPilot 700 and 711C Brochure

For more information, including dimensions and product specifications, download the brochure.
