165T/275LHW-12P

MSRP: $3,700.00

Pocket Mount Combo Wide Beam Transducer for DFF3D (12 Pin)

Beam Angle120 Degrees and 25 x 16 Degrees and 25 Degrees

Frequency165 kHz and CHIRP 42-65 kHz and 150-250 kHz

Housing TypeUrethane

Install TypeIn Hull

Power Rating1 kW

Prices and Specifications Subject to Change Without Notice.

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products 165T--275LHW-12P

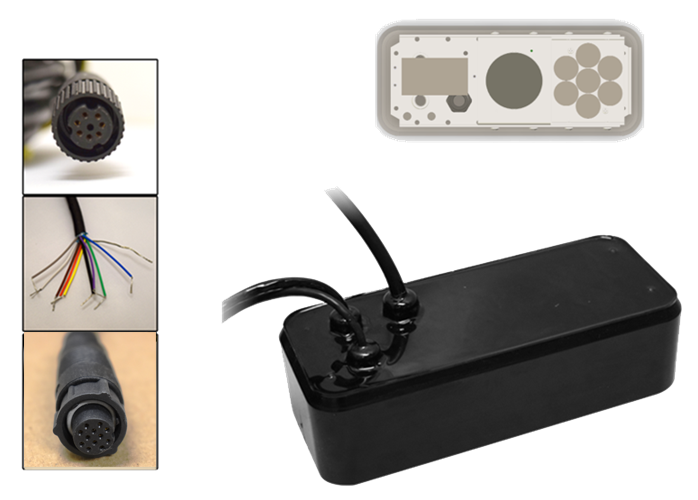

Pocket Mount Combination Transducer

This is a new size housing (12 LX 5 W X 3.5 H) that contains DFF3D elements along with CHIRP elements.

Standard Features

  • DFF3D operating frequency 165 kHz
  • Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
  • High—CHIRPS from 150 kHz to 250 kHz, Beamwidth 25°
  • 12M Cables. Pigtail cable for DFF1-UHD, 7 pin connector and 12 pin connector for DFF3D
  • Recommended for a DFF1-UHD and DFF3D installation
  • Built-in motion sensor
  • Built in temp sensor
