FI70

MSRP: $495.00

4.1" Color LCD Instrument Display

Display TypeColor LCD

Power Usage15 VDC CAN bus

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FI70

All your info - all in one place

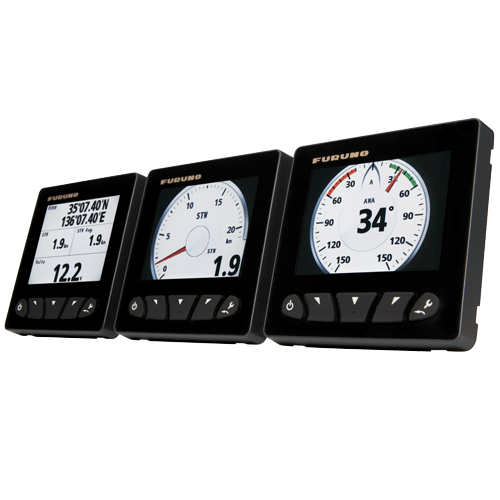

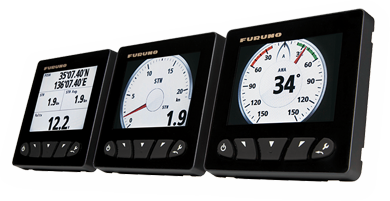

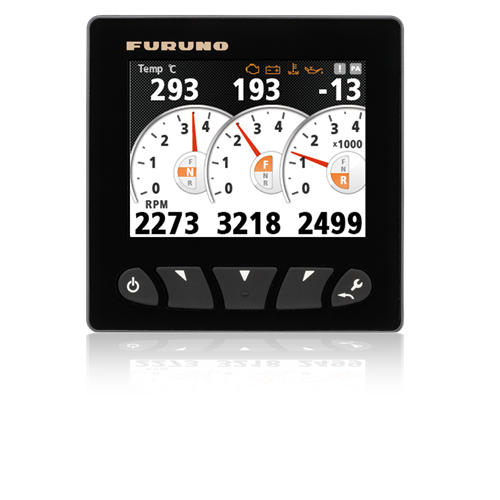

The FI70 is an instrument display that sports a vibrant 4.1" bonded Color LCD screen. The screen is bonded for fog-free performance and is perfectly visible even in bright daylight. A variety of external sensors can be connected via the NMEA 2000 (CAN bus) network for simple and reliable operation. Power is supplied by the NMEA 2000 network. The FI70 features an easy-to-operate graphical user interface, and allows you to customize nearly every display property. Choose the information you want to display, in the way you want to see it!

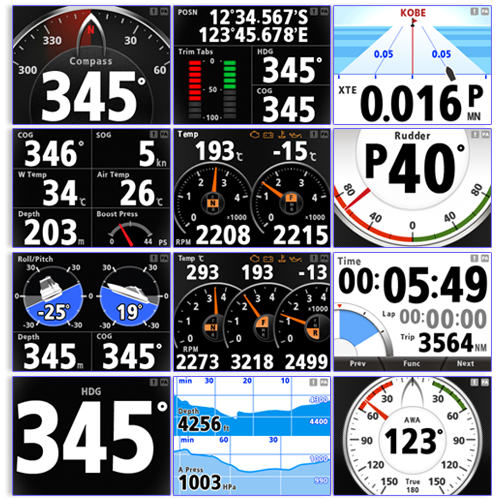

Amazing user interface and customization

With the FI70, almost anything can be customized. Conveniently choose the way you want information to be displayed, in a way that is most relevant to you.

Detailed Satellite Compass Information

The FI70 can be used to set detailed parameters for the SCX20 and SC33 Satellite Compass. You can assign essential parameters such as ship's width, length and height as well as the exact antenna position to allow the Satellite Compass to operate at peak efficiency. The display can also be used as an effective Satellite Compass Indicator, capable of displaying 3-Axis Speed (forward-aft, transverse port-starboard at the bow, and transverse port-starboard astern). This information can be displayed in either graphical or digital numeric format, and is useful in evaluating detailed motion at berth or to see how the vessel has drifted.

Heave, representing the upward and downward motion of the vessel, can also be displayed. This display offers an up or down arrow indicating direction of heave, along with a numeric value to indicate distance.

The FI70 can even be used to to display the status of GPS satellites that the SCX20 and SC33 rely on to operate.

  • Cables
  • Miscellaneous Accessories

Cables

Cables

$86.00
NMEA2000 Micro Cable, 1 Meter, Male-Female connectors (straight)
$100.00
NMEA2000 Micro Cable, 2 Meter, Male-Female Connector
$148.00
NMEA2000 Micro Cable, 6 Meter, Male-Female Connector
$35.00
NMEA2000 Micro Cable, 1 Meter, Female connector (straight) + Pigtail - When 0 Stock, go to 001-507-010-00
$99.00
NMEA2000 Micro Cable, 1 Meter, Female Connector + Pigtail
$113.00
NMEA2000 Micro Cable, 2 Meter, Female Connector + Pigtail
$124.00
CBL NMEA2K MICRO-F 6M S-END

Miscellaneous Accessories

Miscellaneous Accessories

$270.00

Analog - NMEA2000 Converter

$520.00

Wind Transducer - Analog

$67.00
SOFT COVER FI70
$645.00

Wind Transducer w/30m Cable - Analog

$83.00
FRONT MOUNT KIT FI70
$275.00
NMEA2000 STARTER KIT

Recommended Additions

  • FI5001

    $520.00

    Wind Transducer - Analog

    Details
  • TZT10X

    $2,695.00
    NavNet TZtouchXL Chart Plotter, 10" Hybrid Control IPS Display FULL HD (1920x1200)
    Details
  • TZT13X

    $3,695.00
    NavNet TZtouchXL Chart Plotter, 13" Hybrid Control IPS Display FULL HD (1920x1080)
    Details
  • TZT16X

    $5,895.00
    NavNet TZtouchXL Chart Plotter, 16" All-Glass IPS Display FULL HD (1920x1080)
    Details
  • TZT22X

    $10,495.00
    NavNet TZtouchXL Chart Plotter, 22" All-Glass IPS Display FULL HD (1920x1080)
    Details
View All

FI70 Brochure

For more information, including dimensions and product specifications, download the brochure.
