FCV1900

MSRP: $7,495.00

Price Less Transducer

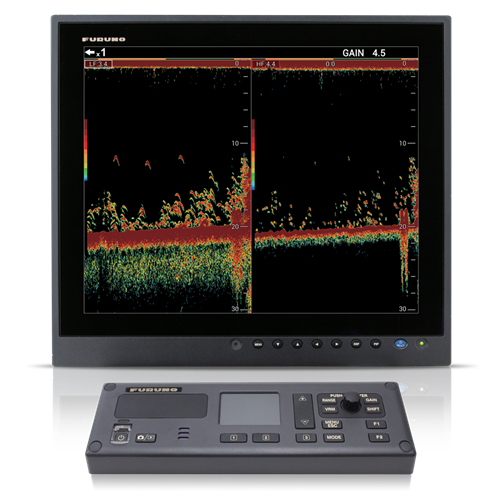

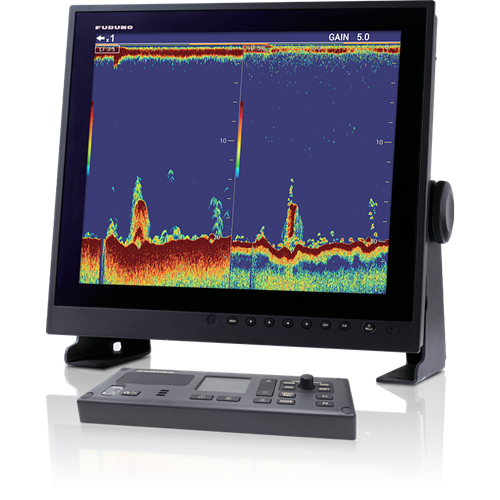

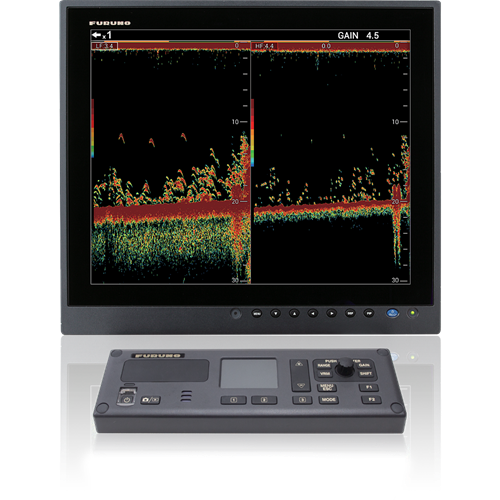

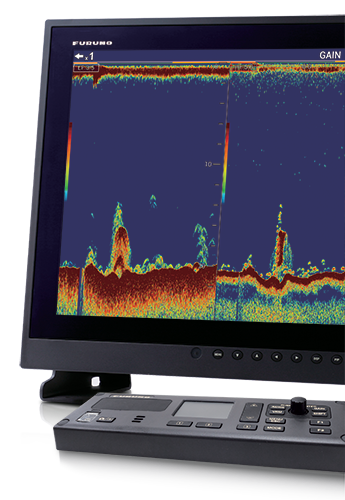

Black Box Hi-Res Dual Frequency Fish Finder

Display SizeSupplied Separately

Display TypeSupplied Separately

FrequencySelectable

Power Usage12-24 VDC

Power Output1 kW or 2 kW or 3 kW

Range3000 m

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FCV1900

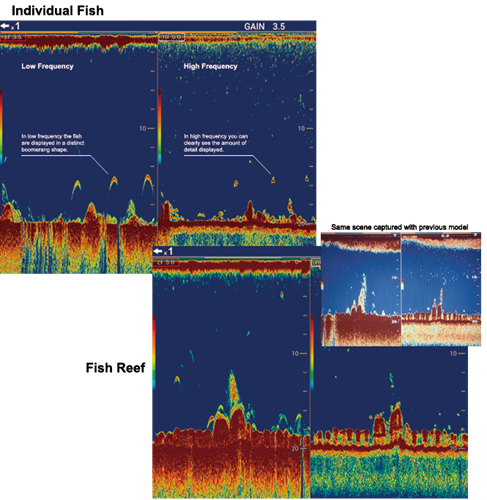

See underwater with incredible high definition echoes

The FCV1900 is a powerful, dual-frequency Fish Finder designed for both commercial and sport fishing boats. It comes with an easily set 1kW, 2kW or 3kW transmitter. It features the Furuno Free Synthesizer (FFS) transceiver, which allows easy selection of a broad range of operating frequencies (15 kHz to 200 kHz).

Retrofitting is made easy with FFS technology. You can easily replace an older FCV1200 processor unit while utilizing the same transducer for convenient installation. Plus we've made the operation of the FCV1900 simple and intuitive with the improved control unit. The control unit features a water resistant touch pad that works even when wearing rubber gloves. You can use the touch pad for setting up VRM and TLL in an instant.

More vivid details due to our increased transmission rate

With a transmission rate that has been increased by up to 1.4 times (200m range), the FCV1900 series ensures excellent target separation and clarity. You will be seeing individual targets and fish reefs like never before.

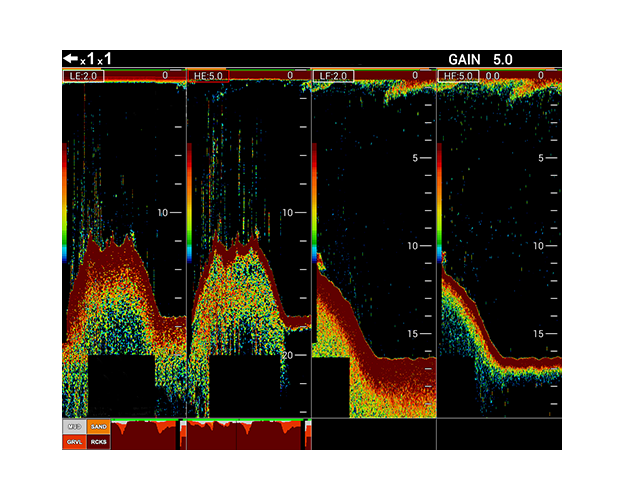

Display up to four different frequencies

Display up to four different frequencies together in a compact and easy way by connecting a required network Fish Finder. Since there is no need to install additional displays, this system is especially useful for small vessels. When connected to the BBDS1 you gain the bottom discrimination function, which indicates whether the bottom is composed mainly of rocks, gravel, sand or mud. This information aids in identifying fish species and minimizing bycatch, which can increase efficiency.

Did you see that? now you can with the scroll back function

With the press of a button you can activate the scroll back function to instantly review past echoes. Up to two previous screens can be viewed.

Instantly see what you've been missing

Use the Simultaneous Gain Setting to increase the visibility of the echo returns on the screen. Display two different gain settings simultaneously for increased visibility in changing water conditions and when changing vessel speed.

Enjoy outstanding shallow water performance

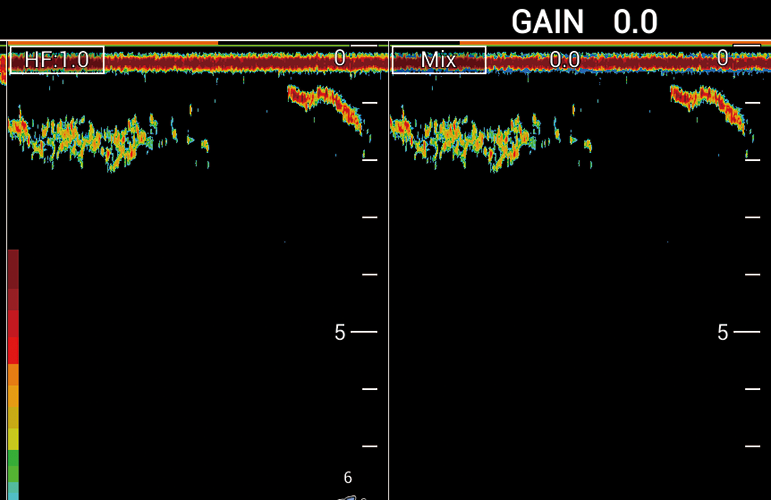

Observe clear echoes from just 3 meters below your vessel with Zero Line Rejection, allowing you to better analyze the water column from near to far.

  • Cables
  • Transducers
  • Marine Monitors
  • Miscellaneous Accessories

Cables

Cables

$80.00
A-TO-D HDMI ADAPTER
$59.00
MJ-A6SPF0003-020C 2M CBL
$99.00
MJ-A6SPF0003-100C 10M CBL
$185.00
WHN 0 STOCK,GO TO 001-594-660-00
$120.00
CABLE HDMI TO DVI 5.3M*

Transducers

Transducers

$3,250.00

FRP Transducer (BLT), Type 28BL-6HR, 2kW (No Plug)

$4,940.00

FRP Transducer (BLT), Type 28BL-12HR, 3kW (No Plug)

$1,110.00

Rubber Coated Transducer, Type 28F-8, 1kW (No Plug)

$3,995.00

FRP Transducer (BLT), Type 38BL-15HR, 3kW (No Plug)

$3,250.00

FRP Transducer (BLT), Type 38BL-9HR, 2kW (No Plug)

$280.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 15m Cable (No Plug)

$450.00

Rubber Coated Transducer, Type 50B-9B, 1kW (No Plug)

$3,250.00

FRP Transducer (BLT), Type 50BL-12HR, 2kW (No Plug)

$3,995.00

FRP Transducer (BLT), Type 50BL-24HR, 3kW (No Plug)

$3,270.00

FRP Tank-Mounted Transducer, 65kHz-110kHz, 2kW (No plug)

$1,030.00

Rubber Coated Transducer, Type 88B-10, 2kW (No Plug)

$3,220.00

Rubber Coated Transducer, Type 88F-126H, 5kW (No Plug)

$4,890.00

Rubber Coated Transducer, Type 100B-10R, 3kW (No Plug)

$300.00

Rubber Coated Transducer, Type 200B-5S, 1kW (No Plug)

$435.00

Rubber Coated Transducer, Type 200B-8B, 2kW, 15m Cable (No Plug)

$1,700.00

Rubber Coated Transducer, Type 200B-12H, 5kW (No Plug)

$980.00

Bronze Thru-Hull Transducer, 1kW (No Plug)

$980.00

Rubber Coated Transducer, 1kW (No Plug)

$1,600.00

Bronze, 1kW Thru-Hull CHIRP Transducer, 42-65kHz and 130-210kHz

$2,500.00

Urethane, 2kW Tank/Cavity/Pocket Mount CHIRP Transducer, 38-75kHz and 130-210kHz

$3,260.00

Urethane, 2kW Tank/Cavity/Pocket Mount CHIRP Transducer, 38-75kHz and 80-130kHz

$1,400.00

Urethane, 1kW Tank/Cavity/Pocket Mount CHIRP Transducer, 42-65kHz and 130-210kHz

$3,290.00

Urethane, 1kW Tank/Cavity/Pocket Mount CHIRP Transducer, 42-65kHz and 85-135kHz

$1,800.00

Urethane, 1kW Tank/Cavity/Pocket Mount CHIRP Transducer, 42-65kHz and 150-250kHz

$3,995.00

Urethane, 2-3kW Tank/Cavity/Pocket Mount CHIRP Transducer, 28-60kHz and 130-210kHz

$7,360.00

Urethane, 2-3kW Tank/Cavity/Pocket Mount CHIRP Transducer, 28-60kHz and 80-130kHz

Marine Monitors

Marine Monitors

$2,395.00
15" Marine Display
$5,295.00

15" Color LCD Monitor w/o Bracket

$6,195.00

19" Color LCD Monitor without bracket

$4,795.00

19" PORTRAIT LCD MONITOR

$5,795.00
15" Color LCD Marine Monitor
$6,795.00
19" Color LCD Marine Monitor

Miscellaneous Accessories

Miscellaneous Accessories

$745.00
CONTROL UNIT FCV1900
$1,100.00
28khz and/or 50khz Booster Box, 5kw
$1,010.00
JUNCTION BOX RJB-002
$60.00
KNOB (W/D SPRING) FCV1900
$15.00
KNOB 03-177-2034-1 FCV1900
$300.00
CABLE ASSY TS-10-066 FCV1900
$4,000.00
Upgrade Key - FCV1900 to FCV1900B
Call For Price
Upgrade Key - FCV1900 to FCV1900G
Call For Price
Upgrade Key - FCV1900B to FCV1900G
$395.00
Video Interface for FCV1900/CH500/CH600 to NavNet TZtouch3 MFD

FCV1900 Brochure

For more information, including dimensions and product specifications, download the brochure.
