CA28BL-12HR

MSRP: $1,895.00

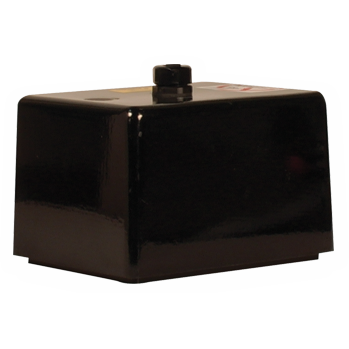

FRP Transducer (BLT), Type 28BL-12HR, 3kW (No Plug)

Beam Angle16 x 21.5 Degrees

Frequency28 kHz

Housing TypeFRP

Install TypeExternal

Power Rating3 kW

Shipping Info29 lbs, 17x17x17

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products CA28BL-12HR

Transducer Features

16° FWD and AFT, 21.5° Port and STB. This transducer can be mounted (turned) 90° for a larger/longer fish arch.

You can also pair this transducer with the CA28F-8. This combination will provide a wide and narrow directional pattern, as well as a combined 4kw of transmitted power into the water. This combination is good for Tuna, Marlin, and Sailfish. Pair with a 150khz Sonar for less interference.

Standard Features

  • 28kHz FRP Transducer
  • 3kW
  • 16 x 21.5 degree Directional Pattern
  • 15m Cable, no connector
  • Weight = 5.4kg
  • 160mm x 210mm x 134.5mm
  • Miscellaneous Accessories

Miscellaneous Accessories

Miscellaneous Accessories

$22.00
Transducer Plug, 4-Pin Round (1 Piece Required for Each Frequency)
