FCV1150

MSRP: $5,195.00

Price Less Transducer

12.1 Inch Color LCD Sounder, Less Transducer

Display Size12.1 inches

Display TypeColor LCD

FrequencySelectable

Power Usage12 VDC or 24 VDC

Power Output1 kW or 2 kW or 3 kW

Range9000 ft

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FCV1150

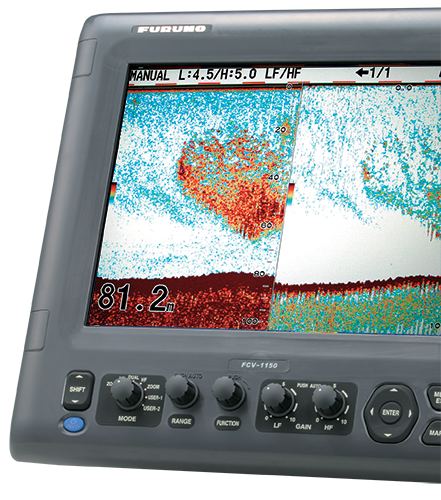

Setting the benchmark for Fish Finder performance

The FCV1150 is a color Fish Finder designed for a variety of professional fishing operations. It features a high-brightness, bonded 12.1" LCD display with AR-coated glass filter and anti-polarized sunglass filter, providing superior viewing even in direct sunlight. You can choose to display the echo presentation in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo. The Furuno Free Synthesizer (FFS) Transceiver allows for a wide selection of operating frequencies. You may choose any two frequencies between 28 and 200 kHz to best suit your fishing operation. Output power is selectable from 1, 2 or 3kW. A wide variety of display modes and functions are available that provide skippers with simple and intuitive information.

Easily identify bottom fish from the seabed

The top of the seabed is displayed in white to easily discern seabed structure from bottom fish returns. While conventional bottom discrimination function called “White Line” applied to the strongest echoes, the White Edge function enhances the discrimination of bottom fish and seabed by painting a very thin line above the bottom contour regardless of gain setting or display color.

Post-processing gain control gives you quick results

With Furuno's post-processing gain control, changes you make to the Gain settings are applied not only to the new echoes, but also to all past echoes on the screen. You can compare past and current echoes using different Gain settings, allowing you to quickly and easily determine the right Gain setting for your conditions. No more waiting for the screen to repaint to see if your settings are the way you want them to look!

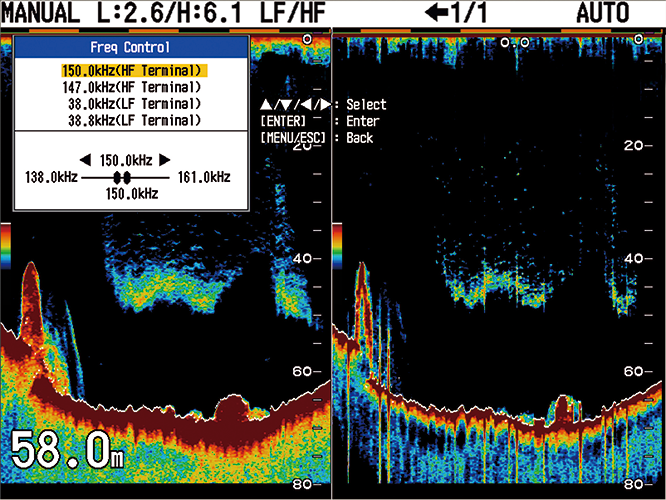

Fine tune your Fish Finder with the operating frequency adjustment

When Furuno transducers are connected and set to the proper Fish Finder model, the operating frequency range will be registered and shown in the menu. You can shift the operating frequency freely between the ranges at any time from the menu. For example, with the Furuno CA82B-35R transducer, you can select any operating frequency from 66 to 109 kHz. This feature is particularly useful for vessels targeting many different species, or when the fish finders of other ships in the area cause interference.

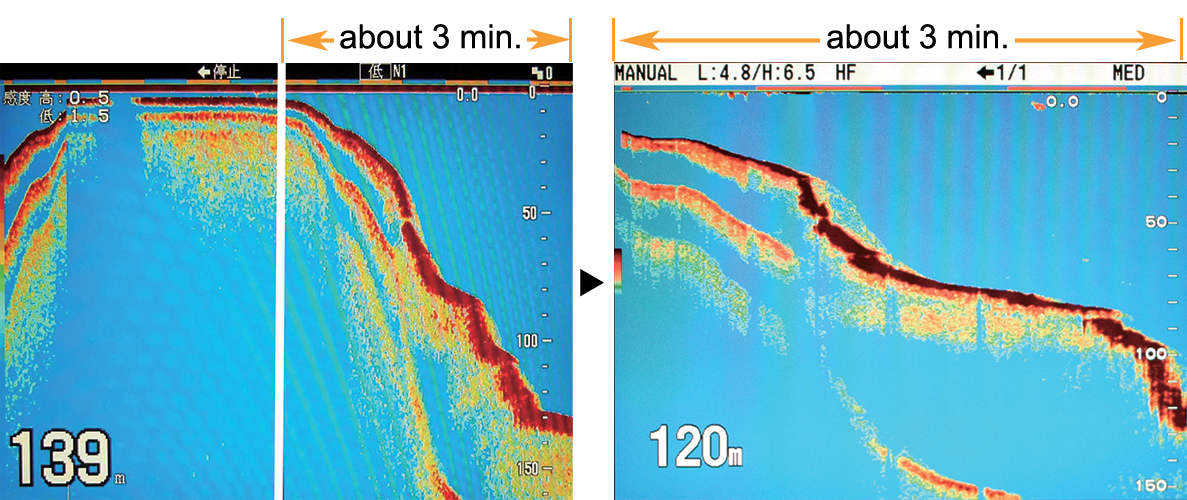

Increased transmission rate for detailed detection

The rate of transmission is increased by more than 30% compared to conventional Fish Finders. As the result, more detailed information about underwater conditions can be gained through the same sounding interval. With the AUTO transmission function, the rate is automatically raised in shallow waters and lowered in deep waters, which provides for detailed detection of seabed targets.

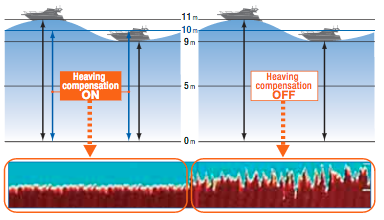

Unwavering, stable detection even in rough seas

Even in rough sea conditions, this unit can compensate for heaving, presenting a display without undulations caused by the sea conditions. A Furuno Satellite Compass is required.

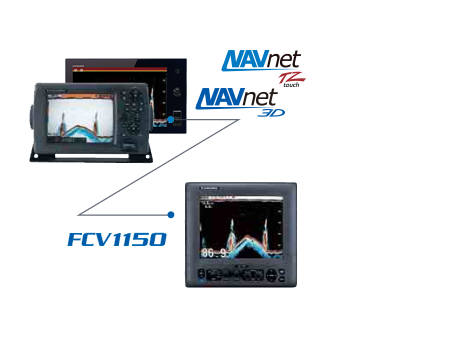

Integrate your FCV1150 with NavNet

Through the Ethernet interface, the FCV1150 brings professional fish finding technologies onto your NavNet TZtouch or 3D network. Auto range, auto gain, shift and zoom controls can be performed from both the NavNet TZtouch/3D MFD and the FCV1150*.
* Manual gain control and mode selection can only be done by the FCV-1150.

  • Cables
  • Related Products
  • Transducers
  • Miscellaneous Accessories
  • Manuals

Cables

Cables

$50.00
CONN ASSY W/2M CBL 6P WP ST

Related Products

Related Products

$895.00

Dual Frequency Booster Box, 5KW

$650.00

Rectifier, 110/220VAC to 24VDC, 2.5 Amps

Transducers

Transducers

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 12° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 20° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 200kHz, 600W/1kW, 12° tilt

$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 200kHz, 600W/1kW, 20° tilt

$1,350.00

FRP Transducer (BLT), Type 28BL-6HR, 2kW (No Plug)

$995.00

Rubber Coated Transducer, Type 28F-8, 1kW (No Plug)

$1,495.00

Rubber Coated Transducer, Type 28F-18, 2kW (No Plug)

$2,365.00

Rubber Coated Transducer, Type 28F-38M, 5kW (No Plug)

$4,995.00

Rubber Coated Transducer, Type 28F-72, 10kW (No Plug)

$1,895.00

FRP Transducer (BLT), Type 28BL-12HR, 3kW (No Plug)

$2,175.00

Go To CA28BL-12HR - Rubber Coated Transducer, Type 28F-24H, 3kW (No Plug)

$1,350.00

FRP Transducer (BLT), Type 38BL-9HR, 2kW (No Plug)

$1,895.00

FRP Transducer (BLT), Type 38BL-15HR, 3kW (No Plug)

$555.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 30m Cable (No Plug)

$275.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 15m Cable (No Plug)

$745.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 50m Cable (No Plug)

$390.00

Rubber Coated Transducer, Type 50B-6G, 1kW (No Plug)

$395.00

Rubber Coated Transducer, Type 50B-9B, 1kW (No Plug)

$1,350.00

FRP Transducer (BLT), Type 50BL-12HR, 2kW (No Plug)

$1,995.00

FRP Transducer (BLT), Type 50BL-24HR, 3kW (No Plug)

$2,095.00

Rubber Coated Transducer, Type 50F-24H, 3kW (No Plug)

$3,190.00

Rubber Coated Transducer, Type 50F-38, 5kW (No Plug)

$3,380.00

Rubber Coated Transducer, Type 50F-70, 10kW (No Plug)

$550.00

Rubber Coated Transducer, Type 88B-8, 1kW (No Plug)

$945.00

Rubber Coated Transducer, Type 88B-10, 2kW (No Plug)

$3,180.00

Rubber Coated Transducer, Type 88F-126H, 5kW (No Plug)

$4,890.00

Rubber Coated Transducer, Type 100B-10R, 3kW (No Plug)

$875.00

Bronze Thru-Hull Transducer, Type 200B-5, 1kW (No Plug)

$275.00

Rubber Coated Transducer, Type 200B-5S, 1kW (No Plug)

$435.00

Rubber Coated Transducer, Type 200B-8B, 2kW, 15m Cable (No Plug)

$745.00

Rubber Coated Transducer, Type 200B-8B, 2KW, 30m Cable (No Plug)

$1,495.00

Rubber Coated Transducer, Type 200B-12H, 5kW (No Plug)

$780.00

Bronze Thru-Hull Transducer, Type 200B-82M, 2kW (No Plug)

$910.00

XDCR 200B-8B W/50M CBL 200KHZ

$2,500.00

Urethane Thru-Hull Transducer with Temp, Fairing Block and Tube, 2kW (No Plug)

$2,500.00

Rubber-Coated In-Hull Transducer, 2kW (No Plug)

$850.00

Rubber Coated Transducer, 1kW (No Plug)

$850.00

Bronze Thru-Hull Transducer, 1kW (No Plug)

$1,100.00

Bronze Thru-Hull Transducer with Temp and Hi-Speed Fairing Block, 1kW (No Plug)

$850.00

Urethane In-Hull Transducer, 1kW, no plug

$1,495.00

Stainless Steel Wide Beam Thru-Hull Transducer with Temp and Fairing Block, 1 kW (No Plug)

$2,695.00
Urethane Thru-Hull Transducer with Temp and High-Speed Fairing Block, 38-75kHz & 130-210kHz, 2/3 kW (No plug)
$3,195.00

Urethane Thru-Hull Transducer with Temp and High-Speed Fairing Block, 33-60kHz & 130-210kHz, 2/3 kW (No plug)

$3,195.00

Urethane Thru-Hull Transducer with Temp and High-Speed Fairing Block, 24-45kHz & 130-210kHz, 2/3 kW (No Plug)

$4,999.00

Urethane, 2-3kW Tank/Cavity/Pocket Mount CHIRP Transducer, 28-60kHz and 130-210kHz

$70.00
Plastic Transom Clip-On Speed and Temp Sensor, 9 Meter Cable with 6-Pin Connect w/Bracket - Airmar P63 Housing Style Transducer
$105.00

Plastic Thru-Hull Speed and Temp Insert, 9 Meter Cable w/6-Pin Connector - Airmar P17 Housing Style Transducer

$165.00

Bronze Thru-Hull Speed and Temp Sensor, 9 Meter Cable w/6-Pin Connector - Airmar B17 Housing Style Transducer

$450.00

Bronze Thru-Hull Temp Sensor, Type T-02MSB (6-Pin)

Miscellaneous Accessories

Miscellaneous Accessories

$55.00
Display, Front Cover
$17.00
MOUNTING KNOB MFD8/MFD12/295
$320.00
BRACKET ASSY FCV1150

Manuals

Manuals

$40.00
INST MANUAL FCV1150

Recommended Additions

  • FAR2117BB

    Call For Price

    12 kW Transmitter, 96 NM Black Box Radar System, less Antenna

    Details
  • TZT14

    $6,195.00

    NavNet TZtouch 14.1" Multi Touch, Multi Function Display W/3M LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)

    Details
  • NAVPILOT 711C

    $2,995.00

    Self-Learning, Adaptive Autopilot - Single-Din Size Color Display

    Details
  • CI68BB

    Call For Price

    Black Box Current Indicator 244 kHz

    Details

FCV1150 Brochure

For more information, including dimensions and product specifications, download the brochure.
