FCV628

MSRP: $695.00

Price Less Transducer

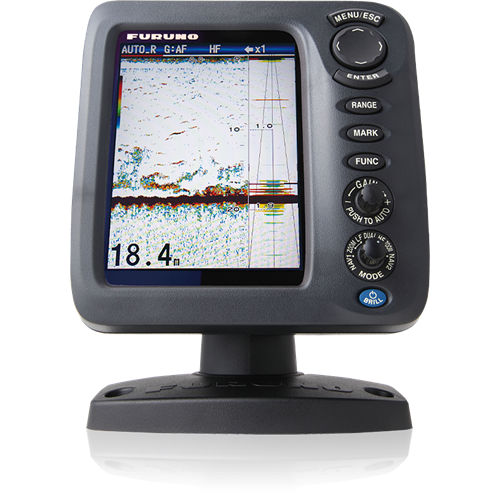

5.7" Color LCD Fish Finder with RezBoost and Accu-Fish

Display Size5.7 inches

Display TypeColor LCD

Frequency50 and 200 kHz

Power Usage12-24 VDC

Power Output600 W

Range1200 m

Prices and Specifications Subject to Change Without Notice.

View Product Features/Accessories Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Support FCV628

Frequently Asked Questions

Topics

Top 5 Results

Can't find what you are looking for?

Maybe try the forum or register your product.

Browse the Forum Ask a Question Register Products

Software Downloads

Download our latest drivers, software, and instructional software files for this product view Terms and Conditions

Software for FCV628

FCV588 and FCV628 Software History (56.860 KB) pdf
  • Cables
  • Transducers
  • Bottom Discrimination Transducers
  • Miscellaneous Accessories

Cables

Cables

AIR-033-204
$70.00
Adapter Cable, 8-Pin Transducer to 10-Pin Sounder

Transducers

Transducers

This unit utilizes a 10-pin Transducer/Multisensor connection. These transducers enable all standard Fish Finder features including RezBoost, but DO NOT support Bottom Discrimination. To utilize the Bottom Discrimination mode of the FCV628, please select a transducer from the "Bottom Discrimination Transducers" list.
SS60-SLD
$400.00

Stainless Steel, Low-Profile Thru-Hull Transducer, 600W, 50/200KhZ

SS264W-50/12
$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 12° tilt

SS264W-50/20
$900.00

Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 20° tilt

SS264N-200/12
$640.00

Stainless Steel Narrow-Beam Low Profile Transducer, 200kHz, 600W/1kW, 12° tilt

SS264N-200/20
$640.00

Stainless Steel Narrow-Beam Low Profile Transducer, 200kHz, 600W/1kW, 20° tilt

520-BLD
$210.00

Bronze Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

520T-BLD
$225.00
Bronze Thru-Hull, Low Profile, Transducer with Temp, 600W (10-Pin)
520-IHD
$200.00

Plastic In-Hull Transducer, 600W (10-Pin)

525T-PPD
$50.00

Plastic Puck Transducer with Temp, for Trolling Motors, 600W (10-Pin)

525STID-MSD7
$550.00
Bronze Thru-Hull Multisensor with 7 Inch Stem, 600W (10-Pin)
525TID-TMD
$775.00

Transom Mount Transducer with Temp, 1kW (10-Pin)

525TID-BHD
$900.00

Bronze Thru-Hull Transducer with Temp and High-Speed Fairing Block, 1 kW (10-Pin)

527ID-IHD
$1,000.00

Urethane In-Hull Transducer, 1kW (10-pin)

556TID-LTD/12
$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element

556TID-LTD/20
$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 20-degree Tilted Element

556TID-HWD
$1,495.00

Stainless Steel Wide Beam Thru-Hull Transducer with Temp and Fairing Block, 1 kW (10-Pin)

ST-01PTB
$90.00
Plastic Transom Clip-On Speed and Temp Sensor, 9 Meter Cable with 6-Pin Connect w/Bracket - Airmar P63 Housing Style Transducer
ST-02PSB
$130.00

Plastic Thru-Hull Speed and Temp Insert, 9 Meter Cable w/6-Pin Connector - Airmar P17 Housing Style Transducer

ST-02MSB
$210.00

Bronze Thru-Hull Speed and Temp Sensor, 9 Meter Cable w/6-Pin Connector - Airmar B17 Housing Style Transducer

Bottom Discrimination Transducers

Bottom Discrimination Transducers

These transducers enable all Fish Finder features noted in the description, INCLUDING Enhanced RezBoost and Bottom Discrimination. If you will not be using the Bottom Discrimination mode, you can also selectin a transducer from the standard Transducer List. Note that the CA50/200-12M and CA50/200-1T require the use of MB1100 Transducer Matching Box.
SS60-SLTD/12
$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

SS60-SLTD/20
$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

520-PLD
$100.00

Plastic Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

520-5PSD
$190.00

Plastic Thru-Hull Transducer, 600W (10-Pin)

520-5MSD
$330.00

Bronze Thru-Hull Transducer, 600W (10-Pin)

525-5PWD
$120.00

Plastic Transom Mount Transducer, 600W (10-Pin)

525T-PWD
$120.00

Plastic Transom Mount Transducer with Temp, 600W (10-Pin)

525T-BSD
$230.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin)

525T-LTD/12
$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

525T-LTD/20
$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

525STID-PWD
$195.00

Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer

525STID-MSD
$450.00

Bronze Thru-Hull Multisensor with High-Speed Fairing Block, 600W (10-Pin)
Airmar B744V Housing Style Transducer

Miscellaneous Accessories

Miscellaneous Accessories

100-329-393-10
$14.00
HARD COVER FCV620 FCV627
100-329-371
$15.00
Knob for Display Bracket FCV585 and FCV620
585-RAM-MNT
$55.00

Overhead Display Mount for FCV585, FCV587, FCV588, FCV620, FCV627, FCV628

100-332-651
$7.00
LCD SCREEN CLEANING CLOTH
IF-NMEA2K2
$320.00

Interface Converter NMEA2000-NMEA0183
