FAR3210BB

MSRP: Call For Price

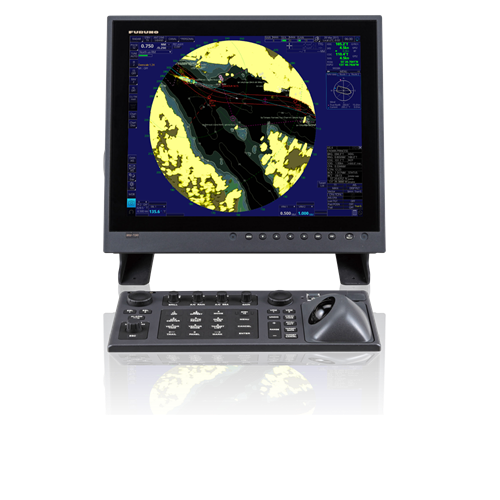

FAR3000 Series Black Box Chart Radar with Performance Monitor, 12kw X-Band, 96 NM

Antenna Size4 ft or 6.5 ft or 8 ft

Antenna TypeOpen Array

BandX-Band

Chart TypeVector

Data TypeNMEA0183 and IEC61162-450

Display SizeSupplied Separately

Display TypeSupplied Separately

Power Usage100-115-120-220-230 VAC

Power Output12 kW

Range96 nm

Prices and Specifications Subject to Change Without Notice.

View Product Features/Accessories Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Support FAR3210BB

Can't find what you are looking for?

Maybe try the forum or register your product.

Browse the Forum Ask a Question Register Products
  • Product Consists Of
  • Choose an Antenna Array
  • Cables
  • Marine Monitors
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

EC3000-R32XBB
Call For Price
Processor Unit For FAR32X0BB X-Band
RCU025
$1,480.00

Chart Radar Keyboard w/ 5 meter cable

RSB128-105N
$10,300.00
Gearbox Unit X-Band 12kW with Performance Monitor
PSU014
$1,995.00

Power Supply Unit For FAR32X0

001-259-860-00
$795.00
Antenna Cable RW-00135-L30M

Note: List Price Credit for Standard Signal Cable Assembly is $325.00.

Choose an Antenna Array

Choose an Antenna Array

XN12CF/4
$2,695.00
4' Open Array Antenna, X-Band
XN20CF/6.5
$3,295.00
6.5' Open Array Antenna, X-Band
XN24CF/8
$3,950.00

8' Open Array Antenna, X-Band

Cables

Cables

001-259-830-00
$490.00
ANTENNA CABLE RW-00135-L15M*
001-259-860-00
$795.00
Antenna Cable RW-00135-L30M

Note: List Price Credit for Standard Signal Cable Assembly is $325.00.

001-259-870-00
$1,195.00
CABLE ASSY RW-00135-L40M
001-259-880-00
$1,520.00
ANTENNA CABLE RW-00135-L50M*
001-259-890-00
$650.00
SUB MON CBL ASSY RW-00136 15M
001-259-900-00
$975.00
SUB MON CBL ASSY RW-00136 30M
001-259-910-00
$1,195.00
SUB MON CBL ASSY RW-00136 40M
001-259-920-00
$1,395.00
SUB MON CBL ASSY RW-00136 50M
001-365-900-00
$55.00
J872 TO J806 CABLE FAR3K
001-365-910-00
$35.00
J873 TO J807 CABLE FAR3K
001-365-920-00
$45.00
J881 TO J808 CABLE FAR3K
001-365-930-00
$15.00
SW TO J874 CABLE FAR3K
001-522-690-00
$145.00
CBL ASSY TET-16-045A-2(L5M) RCU024/5 SCU003
001-522-700-00
$295.00
CBL ASSY TET-16-045A-2(L10M) RCU024/5 SCU003
001-522-710-00
$740.00
Cable Assembly TET-16-045A-4(L20M)
001-522-720-00
$1,140.00
CBL ASSY TET-16-045A-2(L30M) RCU024/5 SCU003
001-186-310-10
$125.00
CABLE 5M STD RCU026/5
001-186-320-10
$325.00
CBL 6TPSH-XH12X2 10M RCU026
001-186-330-10
$665.00
CBL 6TPSH-XH12X2 20M RCU026
001-186-340-10
$1,055.00
CBL 6TPSH-XH12X2 30M RCU026

Marine Monitors

Marine Monitors

MU270W
$7,495.00

27" Widescreen Monitor

HD24T22FUDMA4FOGA
$4,495.00
24" LCD Monitor
HD27T22FUDMA4FOGA
$5,995.00
27" LCD Monitor

Miscellaneous Accessories

Miscellaneous Accessories

The fee to install the de-icer kit is two hours at the current labor rate.
F3K-HSC-UPG
$395.00
FAR3000 HIGH SPEED DONGLE*
F3KCONUPG
$5,710.00
FAR3000 Conning Upgrade Dongle
F3K-CBL-BTM
$250.00
COVER/HARDWARE FAR3K KIT*
FHLCOMMPED
$2,700.00
Universal Pedestal for FAR22x8BB, FAR3x00 and FAR2xx7
FHLCOMMTT
$2,000.00
Table Top Mount for FAR Series Radars and FMD Series ECDIS
MC3000S
$1,650.00

SENSOR ADAPTER SERIAL FMD3200

MC3010A
$1,125.00
SENSOR ADAPTER ANALOG
MC3020D
$995.00
SENSOR ADAPTER DIGITAL-IN
MC3030D
$1,075.00
SENSOR ADAPTER DIGITAL-OUT
EG4000
$1,860.00
Radar Moving Target Simulator
OME-361-60Z
$50.00
FAR3000 OPERATOR MANUAL
IME-361-60Z
$40.00
INSTALLATION MANUAL FAR3000
000-178-138-11
$115.00
GO TO 000-197-637-10
000-162-814-10
$10.00
HEX HEAD SCREW M12X70 SUS304
001-254-320-00
$3,195.00

De-Icer Kit RSB128

001-491-920-00
$190.00
RSTR FXG PLT ASSY RTR-105/6/8
001-254-380-00
$4,860.00
LAN SIGNAL CONVERTER RSB128
001-254-410-00
Call For Price
CABLE EXTENSION KIT RSB128
