GP1871F

MSRP: $895.00

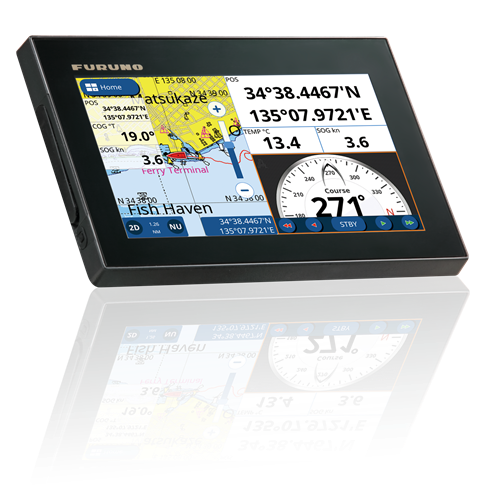

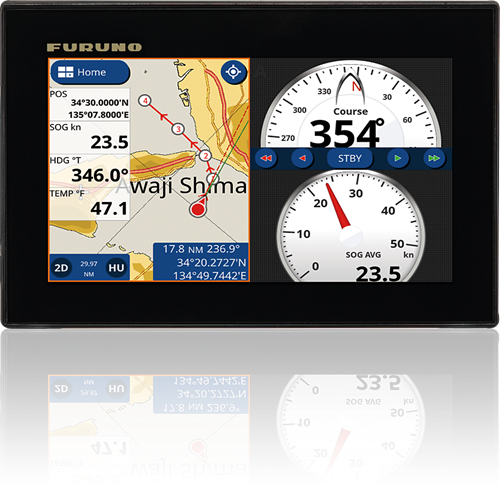

7" Multi Touch GPS/WAAS Chart Plotter with CHIRP and Conventional Fish Finder

Chart TypeC-Map or Navionics

Display Size7 inches

Display TypeColor Multi Touch LCD

FrequencyVariable

Power Usage12-24 VDC

Power Output300 W or 600 W or 1 kW

Range1500 ft

Prices and Specifications Subject to Change Without Notice.

View Product Features/Accessories Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Support GP1871F

Frequently Asked Questions

Topics

Top 5 Results

Can't find what you are looking for?

Maybe try the forum or register your product.

Browse the Forum Ask a Question Register Products

Software Downloads

Download our latest drivers, software, and instructional software files for this product view Terms and Conditions

Software for GP1871F

GP1871F GP1971F Software History (401.879 KB) pdf
GP1871F GP1971F Software Update Procedure (3.466 MB) pdf
GP1971F GP1971F v5.3.0R Update Software (0.067 KB) txt
How to update the GP1871F GP1971F VIDEO (0.042 KB) txt
  • Cables
  • 50 200 kHz Transducers
  • 50 200 kHz Bottom Discrimination Transducers
  • Single Band Chirp Transducers
  • Transducers
  • Miscellaneous Accessories

Cables

Cables

001-533-060-00
$50.00
NMEA2000 Micro Cable, 1 Meter, Male-Female connectors (straight)
001-533-070-00
$60.00
NMEA2000 Micro Cable, 2 Meter, Male-Female Connector
001-533-080-00
$80.00
NMEA2000 Micro Cable, 6 Meter, Male-Female Connector
001-105-780-10
$35.00
NMEA2000 Micro Cable, 1 Meter, Female connector (straight) + Pigtail - When 0 Stock, go to 001-507-010-00
001-507-010-00
$55.00
NMEA2000 Micro Cable, 1 Meter, Female Connector + Pigtail
001-507-030-00
$80.00
NMEA2000 Micro Cable, 2 Meter, Female Connector + Pigtail
001-507-040-00
$70.00
CBL NMEA2K MICRO-F 6M S-END
AIR-033-270
$80.00
Transducer Y-Cable, 10-Pin (F) to 10-Pin (M) and 6-Pin (M)
001-533-250-00
$100.00
GP1871F GP1971F Power Cable, 1.5 meters

50 200 kHz Transducers

50 200 kHz Transducers

These transducers enable all standard Fish Finder features, but DO NOT support Bottom Discrimination. To utilize the Bottom Discrimination mode please select a transducer from the "Bottom Discrimination Transducers" list.
SS60-SLD
$400.00

Stainless Steel, Low-Profile Thru-Hull Transducer, 600W, 50/200KhZ

520-IHD
$200.00

Plastic In-Hull Transducer, 600W (10-Pin)

520-BLD
$210.00

Bronze Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

520T-BLD
$225.00
Bronze Thru-Hull, Low Profile, Transducer with Temp, 600W (10-Pin)
525T-PPD
$50.00

Plastic Puck Transducer with Temp, for Trolling Motors, 600W (10-Pin)

525TID-BHD
$900.00

Bronze Thru-Hull Transducer with Temp and High-Speed Fairing Block, 1 kW (10-Pin)

525TID-TMD
$775.00

Transom Mount Transducer with Temp, 1kW (10-Pin)

527ID-IHD
$1,000.00

Urethane In-Hull Transducer, 1kW (10-pin)

556TID-HDD
$1,250.00

Stainless Steel Thru-Hull Transducer with Temp and Fairing Block, 1 kW (10-Pin)

556TID-LTD/0
$1,350.00
Stainless Steel Thru-Hull Transducer, 1kW (10 Pin)
556TID-LTD/12
$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element

556TID-LTD/20
$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 20-degree Tilted Element

50 200 kHz Bottom Discrimination Transducers

50 200 kHz Bottom Discrimination Transducers

CA50/200-1T
$980.00

Rubber Coated Transducer, 1kW (No Plug)

CA50/200-12M
$980.00

Bronze Thru-Hull Transducer, 1kW (No Plug)

520-5MSD
$330.00

Bronze Thru-Hull Transducer, 600W (10-Pin)

525STID-MSD
$450.00

Bronze Thru-Hull Multisensor with High-Speed Fairing Block, 600W (10-Pin)
Airmar B744V Housing Style Transducer

525T-LTD/12
$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

525T-LTD/20
$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

526TID-HDD
$1,400.00

Bronze Thru-Hull Transducer with Temp, Built-in Diplexer and Hi-Speed Fairing Block, 1kW (10-Pin)

SS60-SLTD/12
$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

SS60-SLTD/20
$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

520-PLD
$100.00

Plastic Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

520-5PSD
$190.00

Plastic Thru-Hull Transducer, 600W (10-Pin)

525T-BSD
$230.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin)

525T-PWD
$120.00

Plastic Transom Mount Transducer with Temp, 600W (10-Pin)

525-5PWD
$120.00

Plastic Transom Mount Transducer, 600W (10-Pin)

525STID-PWD
$195.00

Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer

Single Band Chirp Transducers

Single Band Chirp Transducers

B75L
$725.00
Low-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 300W
SS75L
$750.00
Low-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull, 300W
B175L
$1,400.00
Low-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 1kW
B175L/12
$1,400.00
GP1X71F BR TH 40/60KHZ 1KW
B175L/20
$1,400.00
GP1X71F BR TH 40/60KHZ 1KW
TM150M
$350.00
Medium-Frequency CHIRP Transducer with Temperature - Plastic Transom Mount, 300W
B150M
$475.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 300W
B75M
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 600W
B785M
$900.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block
SS75M
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull
SS75M/12
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 12° Tilt
SS75M/20
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 20° Tilt
TM185M
$1,000.00
Medium-Frequency CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless Bracket
B175M
$1,300.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull
B175M/12
$1,300.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with 12° Tilt
B175M/20
$1,600.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with 20° Tilt
B285M
$1,300.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block
B75H
$750.00
High-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull
SS75H
$750.00
High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull
SS75H/12
$750.00
High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 12° Tilt
SS75H/20
$750.00
High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 20° Tilt
TM165HW
$500.00
High-Frequency, Wide-Beam CHIRP Transducer - Plastic Transom Mount
TM185HW
$1,200.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless Bracket
B175H
$1,100.00
High-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull
B175HW
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull
B175HW/12
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with 12° Tilt
B175HW/20
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with 20° Tilt
B285HW
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block

Transducers

Transducers

520T-BLD
$225.00
Bronze Thru-Hull, Low Profile, Transducer with Temp, 600W (10-Pin)
520-IHD
$200.00

Plastic In-Hull Transducer, 600W (10-Pin)

Miscellaneous Accessories

Miscellaneous Accessories

001-077-830
$30.00
NMEA2000 Micro Inline Terminator, Female
AIR-052-531
$47.00
NMEA2000 T-Connector, Female/Female/Male
AIR-335-791
$22.00
NMEA2000 Micro Terminator, Male
AIR-335-792
$22.00
NMEA2000 Micro Terminator, Female
IF-NMEA2K2
$320.00

Interface Converter NMEA2000-NMEA0183

FI5002
$210.00

Junction Box - NMEA2000

MB1100
$400.00

Transducer Matching Box with 10pin Connector.

For Furuno Transducers only. Use Airmar Matching box for Airmar transducers.
AIR-033-745
$275.00
NMEA2000 STARTER KIT
100-418-430-10
$18.00
MOUNTING BRACKET KNOB GP1971F*
71F-UPG-SOF
$30.00
Software upgrade for GP1871F on SD Card
001-550-450-00
$65.00
Flush Mount Gasket for GP1871F
IME-449-80Z
$50.00
Installation Manual for GP1871
001-546-660-00
$70.00
External Bracket Kit K12CJ2015A
OME-449-80Z
$50.00
Operator's Manual for GP1871F/GP1971F
001-546-660-00
$70.00
External Bracket Kit K12CJ2015A
001-546-670-00
$75.00
MOUNTING BRACKET GP1971F*
