GP1971F

MSRP: $1,295.00

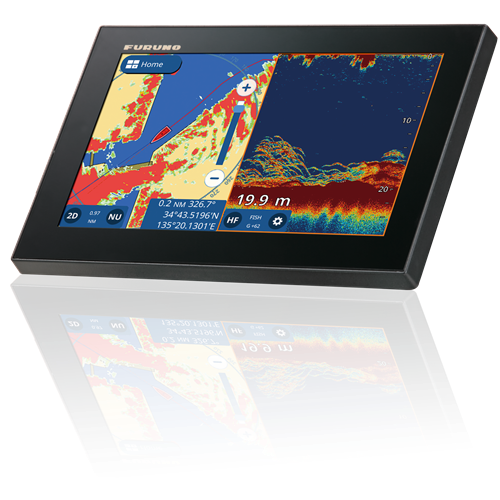

9" Multi Touch GPS/WAAS Chart Plotter with CHIRP and Conventional Fish Finder

Chart TypeC-Map or Navionics

Display Size9 inches

Display TypeColor Multi Touch LCD

FrequencyVariable

Power Usage12-24 VDC

Power Output300 W or 600 W or 1 kW

Range1500 ft

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products GP1971F

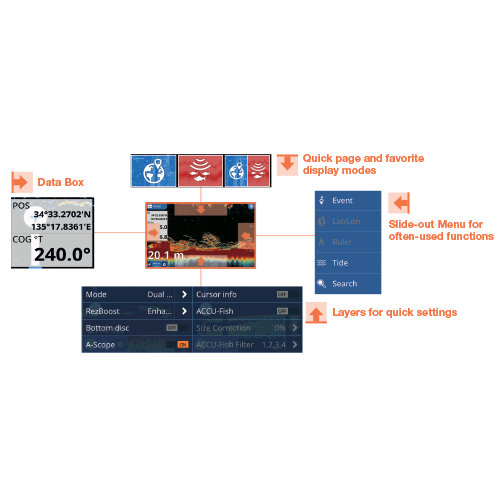

Multi Touch Interface

The all-glass, multi touch display gives you access to every feature via convenient and intuitive slide-out menus. Slide your finger down from the top of the display to select Quick Pages, including your favorite custom display modes, with a single tap. Slide out from the left to view customized Data Boxes. Slide up from the bottom to quickly adjust your layer settings. Finally, slide your finger out from the right side to instantly access the menu functions you use the most. Tap or double tab the display with two fingers to capture a screen shot or perform other customized functions. Everything in the menu is intuitive and contextual, so the content relates to the current display mode.

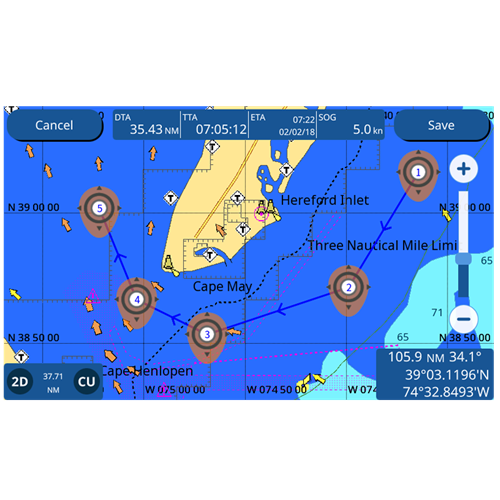

Powerful Chart Plotter with Internal GPS Antenna

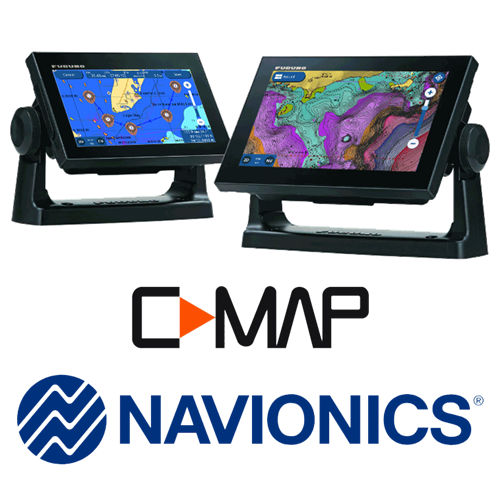

The Chart Plotter utilizes full-featured Navionics or C-Map 4D charts.

C-Map 4D empowers you with plenty of useful data that you can overlay onto a rich vector chart, such as relief vectors, tidal streams and marine plans, significantly boosting situational awareness. Creating routes and waypoints is as simple as touch-and-go. When connected to an AIS receiver, you can see valuable AIS data on the display.

With the new Version 4.0 software, Navionics charts with features such as refined depth contouring and relief shading, and enhanced viewing angles, including 3D and Panoramic modes, can be utilized. Plus, users can quickly and easily update the chart content using the Navionics Chart Installer app for PC!

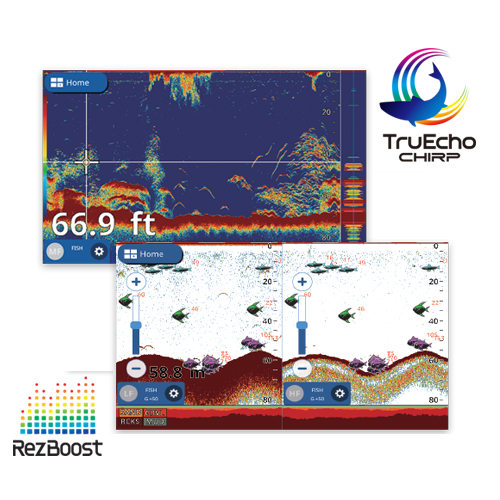

Built-In CHIRP and Conventional Fish Finders

The unit includes a built-in TruEcho CHIRP, as well as a conventional Fish Finder, transmitting at 300W, 600W or 1kW. Simply tell the unit what transducer you are using and it will select the type of Fish Finder to use. The TruEcho CHIRP transmits across a spectrum of frequencies, delivering an incredible amount of detail and clearly marking individual game fish and bait fish. The conventional Fish Finder includes RezBoost data processing for an ultra-crisp, high-resolution picture. Other features include ACCU-FISH fish size assessment, and the highly useful Bottom Discrimination function to help you find the most productive fishing grounds.

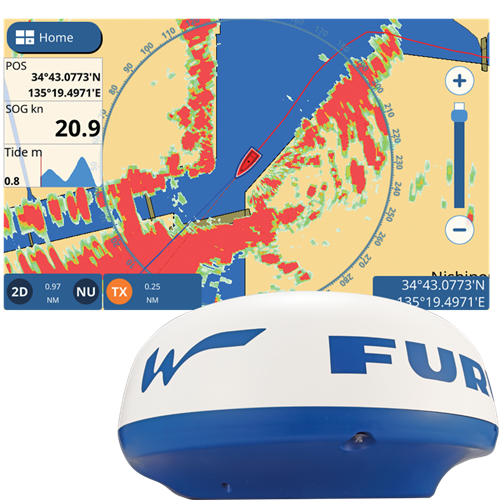

Wireless Radar Connectivity

Radar can be overlayed onto the Chart Plotter display via wireless connection to the Furuno DRS4W 1st Watch Wireless Radar. The DRS4W’s wireless configuration makes it a breeze to add the compact 19" Radar dome to any vessel. The DRS4W can also display the Radar presentation on a connected smart phone or tablet, offering a major upgrade in safety and versatility.

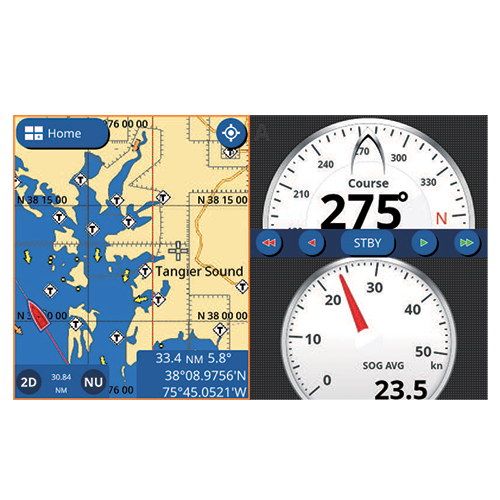

Autopilot Control

Via the CAN bus network interface, The NAVpilot 300 and NAVpilot 711C can be connected to the GP1871F and GP1971F and controlled directly from the Chart Plotter.

GP1871F/GP1971F First Look

Take a First Look at the GP1871F/GP1971F Combo Units!

  • Cables
  • 50 200 kHz Transducers
  • 50 200 kHz Bottom Discrimination Transducers
  • Single Band Chirp Transducers
  • Miscellaneous Accessories

Cables

Cables

$50.00
NMEA2000 Micro Cable, 1 Meter, Male-Female connectors (straight)
$60.00
NMEA2000 Micro Cable, 2 Meter, Male-Female Connector
$80.00
NMEA2000 Micro Cable, 6 Meter, Male-Female Connector
$35.00
NMEA2000 Micro Cable, 1 Meter, Female connector (straight) + Pigtail - When 0 Stock, go to 001-507-010-00
$55.00
NMEA2000 Micro Cable, 1 Meter, Female Connector + Pigtail
$80.00
NMEA2000 Micro Cable, 2 Meter, Female Connector + Pigtail
$70.00
CBL NMEA2K MICRO-F 6M S-END
$70.00
Adapter Cable, 8-Pin Transducer to 10-Pin Sounder
$80.00
Transducer Y-Cable, 10-Pin (F) to 10-Pin (M) and 6-Pin (M)
$100.00
GP1871F GP1971F Power Cable, 1.5 meters

50 200 kHz Transducers

50 200 kHz Transducers

These transducers enable all standard Fish Finder features, but DO NOT support Bottom Discrimination. To utilize the Bottom Discrimination mode please select a transducer from the "Bottom Discrimination Transducers" list.
$400.00

Stainless Steel, Low-Profile Thru-Hull Transducer, 600W, 50/200KhZ

$200.00

Plastic In-Hull Transducer, 600W (10-Pin)

$210.00

Bronze Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

$225.00
Bronze Thru-Hull, Low Profile, Transducer with Temp, 600W (10-Pin)
$50.00

Plastic Puck Transducer with Temp, for Trolling Motors, 600W (10-Pin)

$900.00

Bronze Thru-Hull Transducer with Temp and High-Speed Fairing Block, 1 kW (10-Pin)

$775.00

Transom Mount Transducer with Temp, 1kW (10-Pin)

$1,000.00

Urethane In-Hull Transducer, 1kW (10-pin)

$1,250.00

Stainless Steel Thru-Hull Transducer with Temp and Fairing Block, 1 kW (10-Pin)

$1,000.00
Stainless Steel Thru-Hull Transducer, 1kW (10 Pin)
$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element

$1,000.00

Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 20-degree Tilted Element

50 200 kHz Bottom Discrimination Transducers

50 200 kHz Bottom Discrimination Transducers

$980.00

Rubber Coated Transducer, 1kW (No Plug)

$980.00

Bronze Thru-Hull Transducer, 1kW (No Plug)

$330.00

Bronze Thru-Hull Transducer, 600W (10-Pin)

$450.00

Bronze Thru-Hull Multisensor with High-Speed Fairing Block, 600W (10-Pin)
Airmar B744V Housing Style Transducer

$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$1,400.00

Bronze Thru-Hull Transducer with Temp, Built-in Diplexer and Hi-Speed Fairing Block, 1kW (10-Pin)

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$100.00

Plastic Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

$190.00

Plastic Thru-Hull Transducer, 600W (10-Pin)

$230.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin)

$120.00

Plastic Transom Mount Transducer with Temp, 600W (10-Pin)

$120.00

Plastic Transom Mount Transducer, 600W (10-Pin)

$195.00

Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer

Single Band Chirp Transducers

Single Band Chirp Transducers

$725.00
Low-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 300W
$750.00
Low-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull, 300W
$1,400.00
Low-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 1kW
$1,400.00
GP1X71F BR TH 40/60KHZ 1KW
$1,400.00
GP1X71F BR TH 40/60KHZ 1KW
$350.00
Medium-Frequency CHIRP Transducer with Temperature - Plastic Transom Mount, 300W
$475.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 300W
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 600W
$900.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 12° Tilt
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 20° Tilt
$1,000.00
Medium-Frequency CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless Bracket
$1,300.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull
$1,300.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with 12° Tilt
$1,600.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with 20° Tilt
$1,300.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block
$750.00
High-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull
$750.00
High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull
$750.00
High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 12° Tilt
$750.00
High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 20° Tilt
$500.00
High-Frequency, Wide-Beam CHIRP Transducer - Plastic Transom Mount
$1,200.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless Bracket
$1,100.00
High-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with 12° Tilt
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with 20° Tilt
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block

Miscellaneous Accessories

Miscellaneous Accessories

$30.00
NMEA2000 Micro Inline Terminator, Female
$47.00
NMEA2000 T-Connector, Female/Female/Male
$22.00
NMEA2000 Micro Terminator, Male
$22.00
NMEA2000 Micro Terminator, Female
$320.00

Interface Converter NMEA2000-NMEA0183

$210.00

Junction Box - NMEA2000

$400.00

Transducer Matching Box with 10pin Connector.

For Furuno Transducers only. Use Airmar Matching box for Airmar transducers.
$275.00
NMEA2000 STARTER KIT
$5.00
MOUNTING BRACKET KNOB GP1971F*
$75.00
MOUNTING BRACKET GP1971F*
$65.00
Flush Mount Gasket for GP1971F
$50.00
Installation Manual for GP1871
$50.00
Operator's Manual for GP1871F/GP1971F

Recommended Additions

  • DRS4W

    $1,195.00

    1st Watch Wireless Radar (DRS4W) - 4kW Output - Access from iOS devices, GP1971F or GP1871F and19 inch Radome, less cable

    Details
  • FM4800

    $695.00
    Marine VHF Radiotelephone with Class D DSC, GPS Receiver, AIS Receiver, and Simplified Loud Hailer
    Details
  • NAVPILOT 300

    $1,695.00
    Adaptive Autopilot with 4.1" Color LCD and Gesture Controller
    Details
  • GP330B

    $425.00

    GPS/WAAS Sensor - NMEA2000/NMEA0183

    Details
  • FM4850

    $795.00
    Black Box Marine VHF Radiotelephone with Class D DSC, AIS Receiver, and Simplified Loud Hailer
    Details

GP1871F/GP1971F Brochure

For more information, including dimensions and product specifications, download the brochure.
