FAR2837S/12

MSRP: Call For Price

30 kW Transmitter, 96 NM ARPA Radar System with 23.1 Inch Color LCD Display and 12 Foot Open Array

Antenna Size10 ft or 12 ft

Antenna TypeOpen Array

BandS-Band

Display Size23.1 inches

Display TypeColor LCD

Beam Width2.3 degrees or 1.8 degrees

Power Usage100-115 VAC or 220 VAC

Power Output30 kW

Range96 nm

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FAR2837S--12

Legendary Furuno Radar solutions

The revolutionary FAR28x7 series of X- and S-band Radars are the result of FURUNO's 50 years experience in marine electronics and advanced computer technology. This series of equipment is designed to meet the exacting standards of the International Maritime Organization (IMO) for ships of 10,000 GT and above.

Beautiful color displays

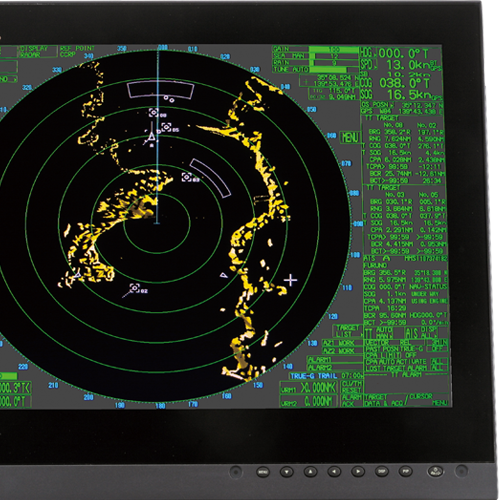

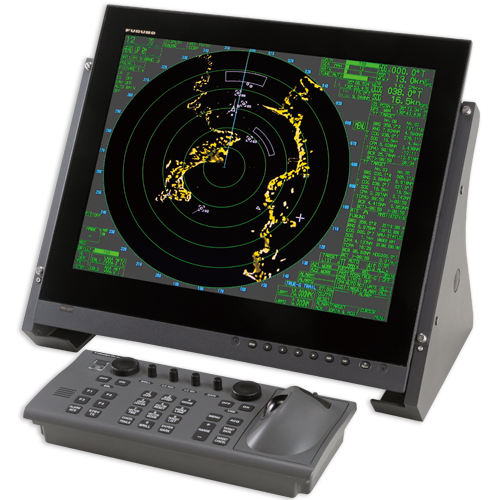

The display unit employs a 23.1" LCD. It provides an effective picture diameter of larger than 340 mm. The SXGA monitor provides crisp Radar echoes, which are presented in a selected color with a day or night background color for easy observation in all lighting conditions. Different colors are assigned for marks, symbols and texts for user-friendly operations.

Unparallelled target detection

Target detection is enhanced by sophisticated signal processing techniques such as multi-level quantization (MLQ), echo stretch, echo average, and Radar interference rejecter. Two guard zones can be set at required ranges in any sector. Other ship's movements are assessed by advanced target tracking software and alerted by CPA/TCPA data readouts. The FAR28x7 series provide ARPA and AIS (transponder unit is required) function as a standard. A variety of antenna is selectable, from 4', 6.5' or 8' radiator. The rotation speed is selectable from 24 rpm for standard Radars or 42 rpm for HSC. The S-band Radar FAR2837S assures target detection in adverse weather where X-band Radar are heavily affected by sea or rain clutter.

  • Product Consists Of
  • Cables
  • Related Products
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$9,195.00
PROCESSOR FAR2X37S 30KW S-BAND
$1,095.00

Keyboard Control Unit with Trackball & 10m Cable

Call For Price
24 RPM Gearbox with 30 kW Transceiver, 220VAC (60Hz) or 200VAC (50Hz)
$6,495.00

23.1" Color LCD Monitor w/o Bracket

$12,575.00
Antenna, 12 Foot Open Array
$395.00
Power Supply Unit
$695.00

CABLE 30M RW9600 14C FAR2XX7

Note: List Price Credit for Standard Signal Cable Assembly is $325.00

$710.00
MU231 MOUNTING BRACKET

Cables

Cables

The FAR2XX7 series radar maximum signal cable length using standard cable (RW9600) is 100M. For cable runs of between 101M and 200M, use P/N CBL-2X7-200 (200 meter cable). For cable runs of between 201M and 300M, use P/N CBL-2X7-300 (300 meter cable). Installation should include two optionally available junction boxes, P/N CBL-2X7-BOX.
$695.00

CABLE 30M RW9600 14C FAR2XX7

Note: List Price Credit for Standard Signal Cable Assembly is $325.00

$39.00
CABLE RW9600 14C FAR28X7/21X7*, PRICED PER METER
Call For Price
200M FAR2XX7 ANT CBL,100M+ RUN*
Call For Price
300M FAR2XX7 ANT CBL,201-300M*
$1,995.00

Junction Box for FAR2XX7 100M+ Antenna Cable Run

$150.00
DVI-D Cable Assembly, 5 Meters
$125.00

DVI-D Cable Assembly, 10 Meters

$125.00
Cable Assembly, Control Unit to Processor, 10 Meters (6-Pair - For Newly Installed Radars)
$105.00
Cable Assembly, Control Unit to Processor, 10 Meters (For Pre-2007 Radars)
$195.00
Cable Assembly, Control Unit to Processor, 30 Meters (For Pre-2007 Radars)
$105.00
Cable Assembly, Control Unit to Control Unit, 10 Meters
$145.00
Cable Assembly, Control Unit to Control Unit, 20 Meters
$250.00
Cable Assembly, Control Unit to Control Unit, 30 Meters
$225.00
6 PAIR CONN CBL 20M CONT/PRCSR*
$350.00
6 PAIR CONN CBL 30M CONT/PRCSR
$225.00
CBL LAN FR-FTPC-CY 10M W/O CON*
$430.00
CBL LAN FR-FTPC-CY 20M W/O CON*
$470.00
CBL LAN FR-FTPC-CY 30M W/O CON*
$350.00
LAN Cable Kit with Connector, 30 Meters
$115.00
Interconnect Cable for EG3000/FAR2XX7 Simulator, 1.5 Meters
$25.00
NULL MODEM CABLE 9P F TO 9P F

Related Products

Related Products

$11,995.00

FAR2XX7 CHART RADAR OPTION *

$2,495.00

Compact Dome Satellite Compass, NMEA2000 (1.0 degree Heading Accuracy) w/6M Cable

$5,295.00

High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

$11,095.00

4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy)

Miscellaneous Accessories

Miscellaneous Accessories

$695.00

Memory Card Reader Interface

$1,095.00

Keyboard Control Unit with Trackball & 10m Cable

$850.00

Trackball Control Unit & 10m Cable with Power Switch

$975.00
Trackball Control Unit w/attached 10m Cable without Power Switch
$11,575.00

Antenna, 10 Foot Open Array

$1,495.00

Deck Pedestal for FAR2XX7 Radar Series

$2,250.00
UNIVERSAL PED FAR2XX7 FAR3X00
$1,350.00
DECK PEDESTAL FAR2XX7
$795.00
Step-Down Transformer, 110/220VAC to 100VAC (For Use with Optional De-Icer)
$695.00
Step-Down Transformer, 220VAC to 110VAC
$1,000.00
Step-Down Transformer, 440VAC to 220VAC
$825.00
Step-Up Transformer, 110VAC to 220VAC
$675.00
Step-Down Transformer, 380/440VAC to 110VAC
$595.00

Gyro Converter

$595.00
Interswitch Hub
$2,995.00

Performance Monitor, S-Band

$31.60
WAGO Plug, 14-Pin TB801 O3P9349
$27.50
WAGO Plug, 12-Pin TB803 03P9349
$3.00
WAGO Tool, Small
$3.00
WAGO TOOL BIG
$350.00
GOTO - 000-177-146-10 - Mini RAM Card
$125.00

Display Handles for FAR2XX7 Displays MU190 and MU231, 2 each.

$185.00
Display Dust Cover
$1,495.00

DVI-RGB Converter Kit for FAR2XX7 Series Radar

$1,295.00
Factory Installed De-Icer Kit
$695.00
Display and Keyboard Combining Kit, MU231

Manuals

Manuals

$40.00
Installation Manual, FAR2X37S & BB S-Band
$50.00
Operator's Manual, FAR2XX7 Series

Recommended Additions

  • SC130

    $11,095.00

    4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy)

    Details
  • GP170D

    $3,295.00

    GPS Navigator with DGPS Installed

    Details
  • FA170

    $3,995.00

    Class A AIS Transponder w/ 4.3" Color LCD Display

    Details
  • DS80

    $10,495.00

    1 mHz, IMO Compliant Doppler Speed Log with Transducer and Flush Mounting Tank

    Details
  • FAR2XX7PED

    $1,495.00

    Deck Pedestal for FAR2XX7 Radar Series

    Details
View All

FAR28x7 Brochure

For more information, including dimensions and product specifications, download the brochure.
