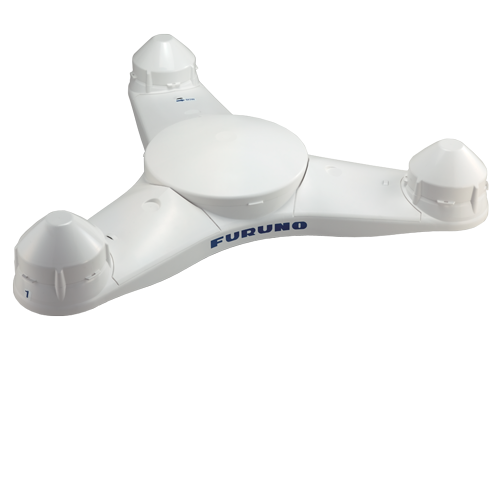

4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy)
Display Size4.3 inches
Display TypeColor LCD
Power Usage12-24 VDC
Receiver Type33 inch Tri-Antenna
Prices and Specifications Subject to Change Without Notice.
All prices shown are in USD. Prices are valid in US and Canada only.
Precise and accurate Heading
The SC70 and SC130 are the latest satellite compasses built on FURUNO’s commercial-grade technology platform. These satellite compasses prove their value by increasing the accuracy of other devices, such as Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. They provide a highly accurate heading input to these other technologies by utilizing the very latest GNSS (Global Navigation Satellite System). This satellite system is comprised of GPS, Galileo and GLONASS to ensure the highest precision and a continuous coverage.
Bow and Stern monitoring for safe berthing
The Satellite Compass provides a variety of data, including GPS Positioning, SOG (Speed Over Ground), COG (Course Over Ground), ROT (Rate Of Turn) and 3-axis speed (bow, stern and longitudinal). All of these data assist with critical maneuvers, such as berthing. The Compass is maintenance-free - a great asset for any vessel - and connects easily into the existing shipboard network via Ethernet connection.
IMO Type Approved as THD, GPS and ROTI
The SC130 provides highly accurate heading data of 0.25° for autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. It is ideal for medium to large vessels navigating in crowded ports and making precise maneuvers, such as berthing and docking, and is IMO Type-approved as THD, GPS and ROTI, complying with the IEC/ISO requirements. It features a rapid follow-up rate 40°/s, twice the IMO high-speed craft requirement of 20°/s.
- Product Consists Of
- Choose an Antenna Cable
- Miscellaneous Accessories
Product Consists Of
Choose an Antenna Cable
Choose an Antenna Cable
GOTO - 001-524-100-00 - 15m cable with pre-molded connectors for connection to antenna and processor
30m cable with pre-molded connectors for connection to antenna and processor
30m cable - connector kits are included for both ends of the antenna cable (to be attached by installer)
40m armored cable - connector kits are included for both ends of the antenna cable (to be attached by installer)
50m armored cable - connector kits are included for both ends of the antenna cable (to be attached by installer)
