FR8065

No Longer Available

MSRP: $9,395.00

PRICE LESS ANTENNA

6kW, 72NM UHD Radar System with 12.1" Color Display, Less antenna

Antenna Size4 ft or 6 ft

Antenna TypeOpen Array

BandX-Band

Display Size12.1 inches

Display TypeColor LCD

Beam Width1.9 degrees or 1.4 degrees

Power Usage24 VDC

Power Output6 kW

Range72 nm

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FR8065

UHD™ digital Radar technology

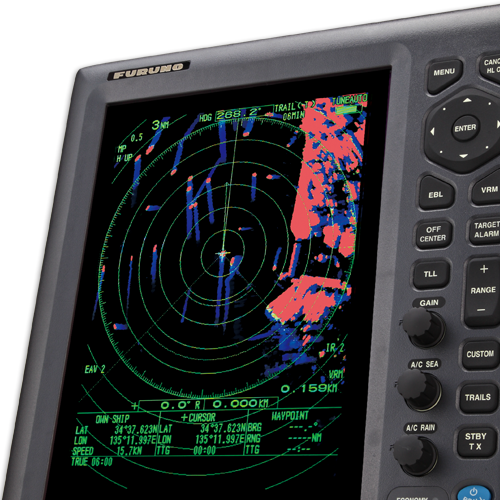

The 12.1” color radar FR8005 series features state of the art signal processing, which makes it easier to identify targets in heavy rain and poor visibility. The FR8005 radar can discern between rain and surface reflections, providing the ability to find and track the movement of rain clouds as well as removing unnecessary echoes. For tracking the movement of other vessels at sea, “True Motion Trails” can be displayed as well as AIS/TT target-tracking with a zoom display function. When the vessel is in motion, the radar echoes move smoothly on the main display thanks to the “True View Mode.”

State-of-the-art digital signal processing

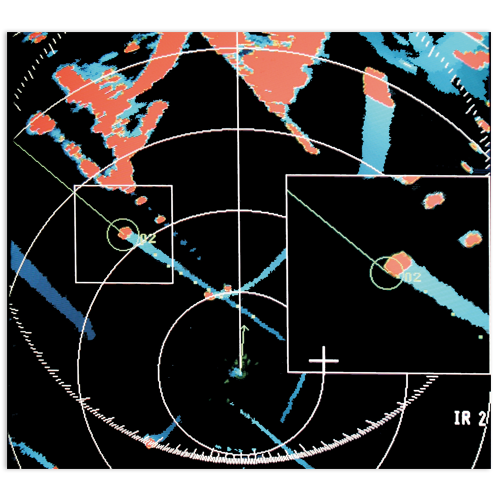

Even during rainfalls or severe weather conditions, radar echoes are clearly displayed, and unnecessary echoes can be removed instantly with ease. The technology for removing sea, rain and snow clutter has been greatly enhanced utilizing FURUNO’s state of the art knowledge in digital signal processing. When using the Target mode, vessels close by and vessels on intersecting courses are automatically displayed zoomed in. These targets will remain displayed for as long as they pose any concern. Target Trails are also displayed, making it easy for the user to determine the movements of individual vessels.

All-new modes of operation including True Trail & True View modes

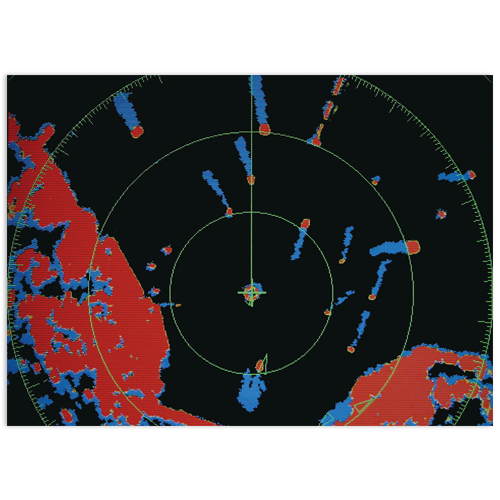

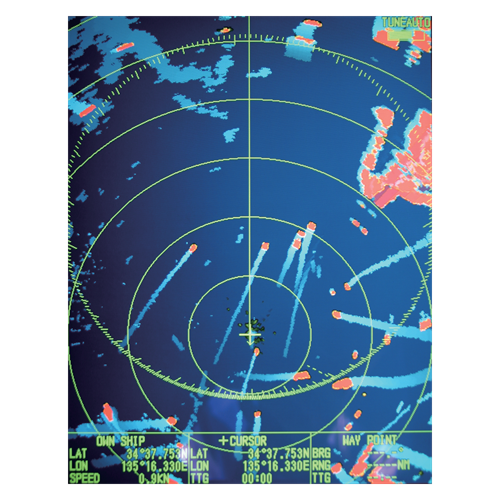

When using the True Trail Mode, moving objects will show up on the main screen with a colorful trail. These trails make it possible to see the movement of nearby vessels in the blink of an eye. The radar echoes move smoothly on the main display thanks to the “True View Mode”. The True View Mode is based on the head-up mode. During the radar sweep, the echoes move according to the heading of your ship. Since the echoes move in real-time, the discrepancy between an observed target and what is displayed on the radar screen is greatly reduced.

Target Tracking and AIS display

The Target Tracking (TT) feature continously tracks and provides positional information for up to ten targets. An AIS device-equipped FR8005 series radar can track target heading, name, speed and direction of movement. With AIS it is possible to identify and track the movement of other vessels in heavy fog, during nighttime and otherwise difficult conditions. Another benefit is that with AIS you can identify obscured targets that the radar signals cannot reach, giving you more time to act. AIS can display up to 100 targets simultaneously, TT can display up to 10 different targets simultaneously.

  • Product Consists Of
  • Choose an Antenna Array
  • Cables
  • Related Products
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

$7,500.00

12.1" CLR LCD RDR DISP FR8XX5

$4,070.00
ANT GEARBOX 6KW 24RPM FR8065
$390.00
CBL/SIGNAL 15M FR8062/FR8122

Choose an Antenna Array

Choose an Antenna Array

$1,095.00

Antenna, 4 Foot Open Array

$1,695.00

Antenna, 6 Foot Open Array

Cables

Cables

$275.00
CBL/SIGNAL 10M FR8062/FR8122
$390.00
CBL/SIGNAL 15M FR8062/FR8122
$425.00
CBL/SIGNAL 20M FR8062/FR8122
$610.00
CBL/SIGNAL 30M FR8062/FR8122
$99.00
Fluxgate Cable, 2 x 6 Pin Connector, 10 Meters (Straight Through)
$110.00
NMEA Cable, 1 x 7 Pin Connector, 5 Meters
$55.00

NMEA Cable, 1 x 6 Pin Connector, 5 Meters

$200.00
Power Cable Assembly, Shielded, 5 Meters, 10A Fuse

Related Products

Related Products

$1,075.00
Rectifier 110/220VAC to 24VDC, 7 Amps
$995.00

Rate Compensated Heading Sensor

$3,100.00

10.4" LCD REMOTE RADAR DISPLAY*

$1,510.00

Gyro Analog to Digital Converter, Digital Heading Repeater (External)

$4,995.00

High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

$9,995.00

4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy)

$2,495.00
Compact Dome Satellite Compass, NMEA2000 (0.4 degree Heading Accuracy) w/6M Cable

Miscellaneous Accessories

Miscellaneous Accessories

Converting a FR8XX5 24RPM gearbox to 48RPM: 1.) Remove 000-169-460 24RPM motor (List credit $200). 2.) Add 000-173-455 48 RPM motor. 3.) Add 100-109-985-10 Turning Gear. 4.) Add 100-264-551 Fixing Plate. 5.) Add 2 hours of labor at current labor rate.
$620.00
24 RPM MTR RM8025 1930/40 *
$20.00
METAL FIXING FR8XX2 RSB0073
$920.00
MTR RM8711 48RPM FR7041 FR8XX2*
$245.00
FLUSH MOUNT KIT FR8065
$370.00
ANTENNA TURNING GEAR HI-SPEED
$650.00
10 Target Auto Plotter

Recommended Additions

  • FA170

    $3,795.00

    Class A AIS Transponder w/ 4.3" Color LCD Display

    Details
  • NAVPILOT 711C

    $2,895.00

    Self-Learning, Adaptive Autopilot - Single-Din Size Color Display

    Details
  • LH5000

    $995.00
    30 Watt Loudhailer with LCD
    Details
  • GP33

    $745.00

    GPS/WAAS Navigator with 4.3" Color LCD, w/6M NMEA2000 Cable

    Details
  • SC70

    $4,995.00

    High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

    Details

FR8xx5 Brochure

For more information, including dimensions and product specifications, download the brochure.
