FAR2228BB

MSRP: Call For Price

25 kW Transmitter, 96 NM Black Box Radar, less Performance Monitor, Antenna, and Cable

Antenna Size4 ft or 6.5 ft or 8 ft

Antenna TypeOpen Array

BandX-Band

Data TypeIEC61162-450

Display SizeSupplied Separately

Display TypeSupplied Separately

Beam Width1.9 degrees or 1.23 degrees or 0.95 degrees

Power Output25 kW

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FAR2228BB

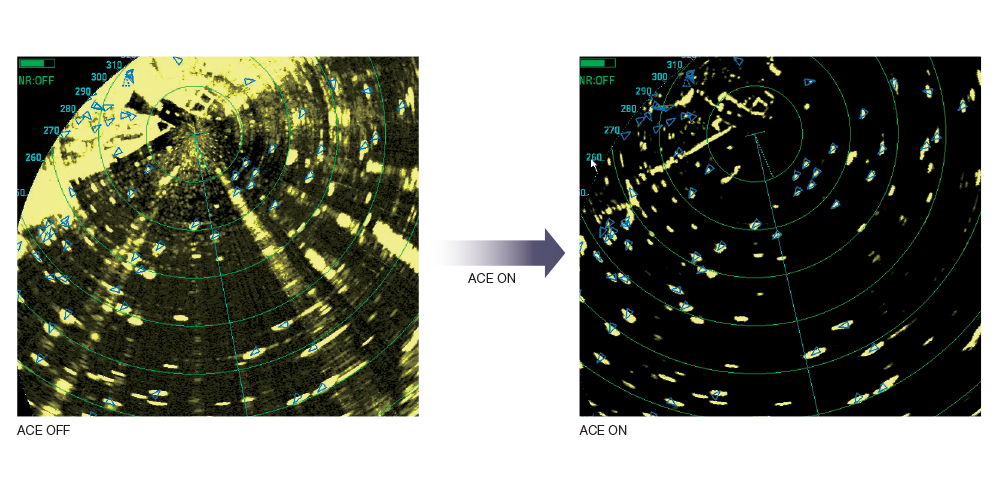

Unprecedented Echo Clarity With Automatic Clutter Elimination (ACE)

The FURUNO FAR22x8BB series is characterized by its state-of-the-art antenna design and innovative signal processing techniques. FURUNO latest and finest technologies and intuitive design will increase situational awareness and enable safer than ever navigation

Quickly adjusts the Radar image with a single button press. When the ACE function is activated, the system automatically adjusts clutter reduction filters and gain control according to the sea and weather conditions.

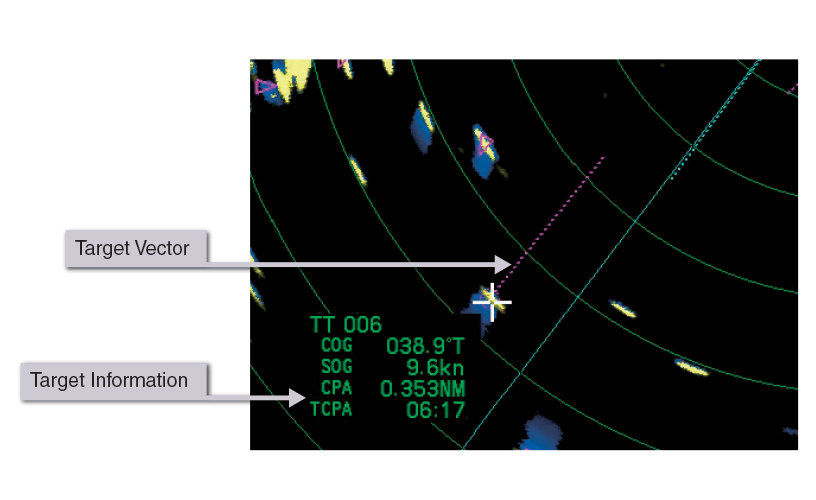

Prevent Collision At An Early Stage With The Fast Target TrackingTM Function

With Fast Target Tracking™, the FAR22x8BB series provides accurate tracking information; speed and course vectors are displayed in mere seconds allowing operators to take action and avoid incidents at a very early stage.

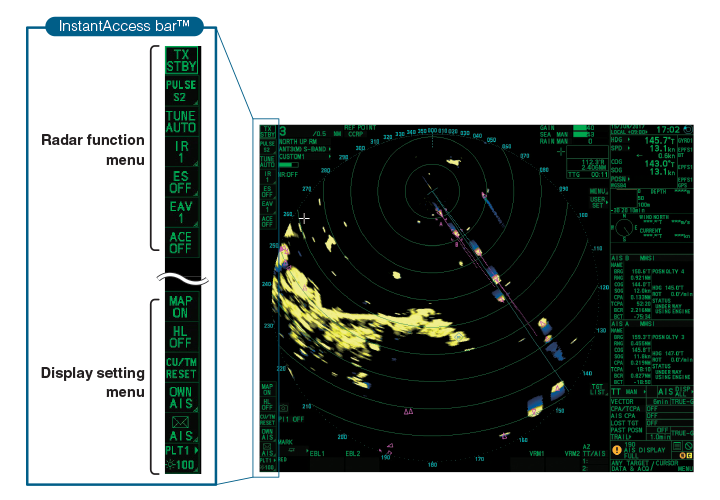

Experience A User Interface Designed For The Ultimate Intuitive Operation

InstantAccess barTM give you immediate access to the function you need. The InstantAccess barTM contains shortcut menus of tasks (functions/actions) that operators frequently use, so they can quickly access necessary tasks.

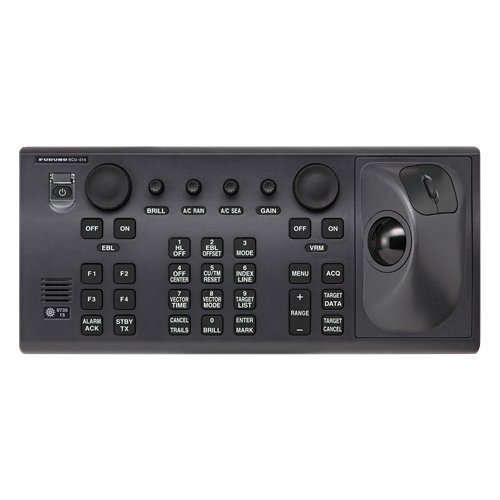

Well-designed Controllers For Stress-Free Operation

Comfortable usability is very important on long voyages. With that in mind, these control units are designed based on ergonomics to fit the operator’s hand. All operations can be controlled with the trackball. An optional Trackball Control Unit is also available.

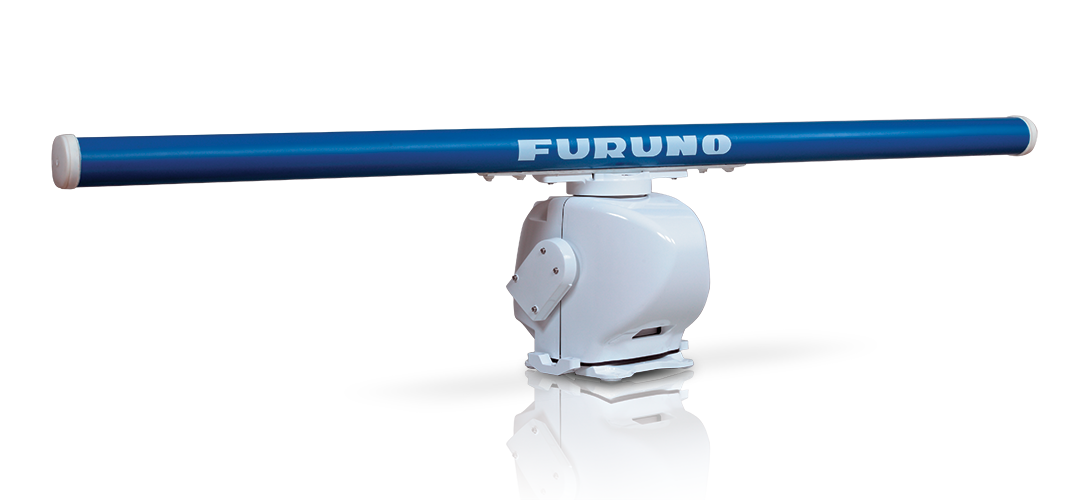

Refined Antennas With High Signal Accuracy And Excellent Reliability

The FAR22x8 Series Radars are designed to provide clearer and more accurate radar images of the surroundings while increasing reliability and decreasing overall cost of ownership with easy maintenance.

High image quality is achieved by the signal processor inside the X-Band antenna unit directly converting analog to digital signals before sending them to the main processor unit. Signals are safely transported though the Ethernet network between the antenna and below deck processing unit.

The gearbox itself has been redesigned to reduce aerodynamic drag that lightens the environmental burden on the gearbox. This, along with an all new brushless DC motor, results in a very durable gearbox that can be used for prolonged periods.

Installation and maintenance are now easier than ever. All components of the gear box are integrated into one block that can easily be removed from the gear box when maintenance is required. The cable to the gear box can be connected from the side of the gear box.

  • Product Consists Of
  • Choose an Antenna Array
  • Cables
  • Marine Monitors
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

$6,700.00
Processor Unit for FAR22x8BB
$1,095.00

Keyboard Control Unit with Trackball & 10m Cable

$12,605.00
Gearbox Unit X-Band 25kW w/o Performance Monitor

Choose an Antenna Array

Choose an Antenna Array

$2,695.00
4' Open Array Antenna, X-Band
$3,295.00
6.5' Open Array Antenna, X-Band
$3,950.00

8' Open Array Antenna, X-Band

Cables

Cables

$490.00
ANTENNA CABLE RW-00135-L15M*
$795.00
Antenna Cable RW-00135-L30M
$1,195.00
CABLE ASSY RW-00135-L40M
$1,520.00
ANTENNA CABLE RW-00135-L50M*
$2,460.00
LAN SIGNAL CONV/OP03-247-3*
$39.00
CABLE RW9600 14C FAR28X7/21X7*, PRICED PER METER
$650.00
SUB MON CBL ASSY RW-00136 15M
$975.00
SUB MON CBL ASSY RW-00136 30M
$1,195.00
SUB MON CBL ASSY RW-00136 40M
$1,395.00
SUB MON CBL ASSY RW-00136 50M
$55.00
J872 TO J806 CABLE FAR3K
$35.00
J873 TO J807 CABLE FAR3K
$45.00
J881 TO J808 CABLE FAR3K
$15.00
SW TO J874 CABLE FAR3K
$40.00
RAW CABLE RW-00135

Marine Monitors

Marine Monitors

$7,495.00

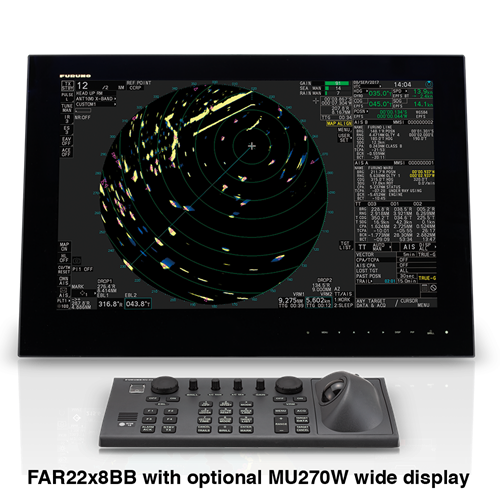

27" Widescreen Monitor

$5,995.00
27" LCD Monitor
$4,495.00
24" LCD Monitor

Miscellaneous Accessories

Miscellaneous Accessories

The fee to install the de-icer kit is two hours at the current labor rate.
$1,150.00

Trackball Control Unit & 10m Cable with Power Switch

$1,350.00
Trackball Control Unit w/attached 10m Cable without Power Switch
$1,600.00
FAR2xx8 Control Unit with Trackball, non-SOLAS
$810.00
Interswitch Hub
$2,850.00
Interswitch/Hub
$1,510.00

Gyro Analog to Digital Converter, Digital Heading Repeater (External)

$1,695.00
Performance Monitor Installation Kit RSB128 (OP03-254-3)
$2,700.00
Universal Pedestal for FAR22x8BB, FAR3x00 and FAR2xx7
$250.00
COVER/HARDWARE FAR3K KIT*
$2,430.00
Cable Junction Box RJB-001
$1,395.00
MG5436 25kW FAR1528/2127/3220
$10.00
HEX HEAD SCREW M12X70 SUS304
$3,195.00

De-Icer Kit RSB128

$1,650.00
RP Board Chart Plotter Installation Kit

Recommended Additions

  • FA170

    $3,795.00

    Class A AIS Transponder w/ 4.3" Color LCD Display

    Details
  • FELCOM250

    $11,995.00

    Inmarsat FleetBroadband System

    Details
  • FM8900S

    $2,195.00

    25W VHF Semi Duplex Radiotelephone w/DSC, GMDSS Compliant

    Details
  • SC70

    $4,995.00

    High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

    Details
  • SC130

    $9,995.00

    4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy)

    Details
View All

FAR22x8BB Brochure

For more information, including dimensions and product specifications, download the brochure.
