FAR2157BB

MSRP: Call For Price

PRICE LESS ANTENNA

50 kW Transmitter, 96 NM Black Box ARPA Radar System, less Antenna

Antenna Size8 ft or 10 ft

Antenna TypeOpen Array

BandX-Band

Display SizeBlack Box

Display TypeSupplied Separately

Beam Width0.75 degrees or 0.95 degrees

Power Usage100-115 VAC or 220 VAC

Power Output50 kW

Range96 nm

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FAR2157BB

Legendary Furuno Radar performance

The revolutionary FAR21x7 series of X-band radars are the result of FURUNO's 50 years of experience in the marine electronics and advanced computer technology. This series of equipment is designed to meet the exacting standards of the International Maritime Organization (IMO) for ships of 1000 GT and more but less than 10000 GT. (NOTE:300 GT ships can carry this series of radars)

Unparalleled target detection from Furuno

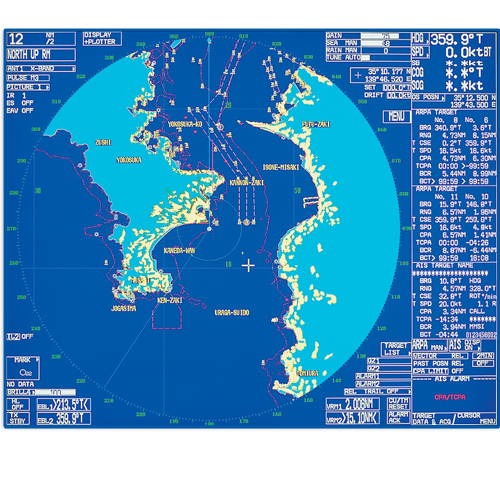

Target detection is enhanced by sophisticated signal processing techniques such as multi-level quantization (MLQ), echo stretch, echo average, and radar interference rejecter. Two guard zones can be set at required ranges in any sector. Other ship's movements are assessed by advanced target tracking software and alerted by CPA/TCPA data readouts. The FAR21x7 series provide ARPA and AIS (transponder unit is required) function as a standard.

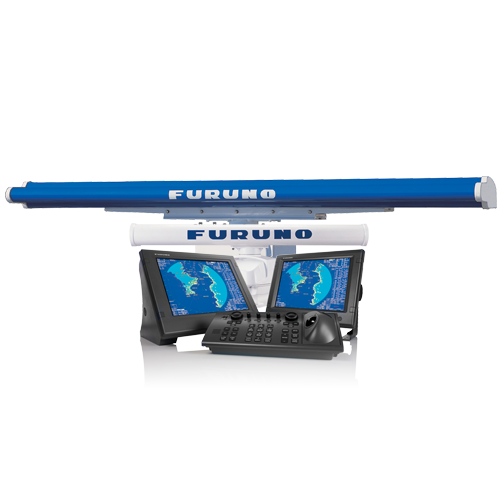

A variety of antenna options

For X-band models, a variety of antenna is selectable from; 4, 6.5, 8 foot radiator, and antenna rotation speed is selectable from 24 rpm for standard radars or 42 rpm for HSC. The S-band radar FAR2137S is also available with the antenna radiator 10 or 12 feet. The S-band radar assures target detection in adverse weather where X-band radar are heavily affected by sea or rain clutter. When pedestal mounting the standard FAR21x7 display unit MU190, the FAR2XX7PED requires use of the optional display mounting kit FAR-190-BKT, which includes the 008-535-560 bracket and 001-139-360 mounting assembly. Please note that the FAR-190-BKT kit is NOT supplied with the MU190 when the monitor is purchased as an individual component. When retrofitting for an older FAR21x7 monitor installation with an existing 008-535-560 bracket, the use of the 001-139-360 mounting assembly only is required.

  • Product Consists Of
  • Choose an Antenna Array
  • Cables
  • Related Products
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$9,595.00
PROCESSOR FAR2157 50KW
$1,095.00

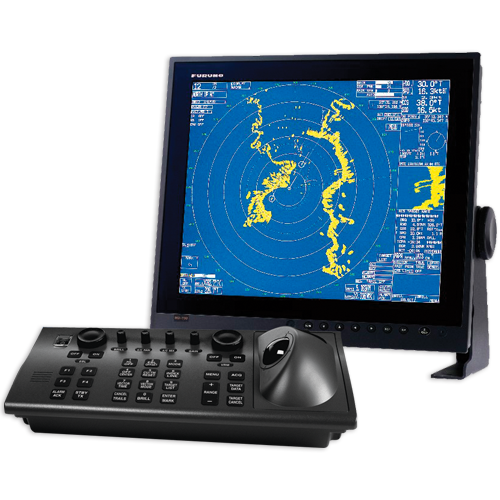

Keyboard Control Unit with Trackball & 10m Cable

Call For Price
GEARBOX 50KW 220VAC 3PH
$3,000.00
POWER SUPPLY FAR2157
$1,950.00
SIGNAL CABLE ASSY 50M FAR2XX7*

Note: List Price Credit for Standard Signal Cable Assembly is $725.00

Choose an Antenna Array

Choose an Antenna Array

$4,170.00

Antenna, 8 Foot Open Array

$6,150.00

Antenna, 10 Foot Open Array (Oval Face)

Cables

Cables

The FAR2XX7 series radar maximum signal cable length using standard cable (RW9600) is 100M. For cable runs of between 101M and 200M, use P/N CBL-2X7-200 (200 meter cable). For cable runs of between 201M and 300M, use P/N CBL-2X7-300 (300 meter cable). Installation should include two optionally available junction boxes, P/N CBL-2X7-BOX.
$695.00

CABLE 30M RW9600 14C FAR2XX7

Note: List Price Credit for Standard Signal Cable Assembly is $325.00

$39.00
CABLE RW9600 14C FAR28X7/21X7*, PRICED PER METER
Call For Price
200M FAR2XX7 ANT CBL,100M+ RUN*
Call For Price
300M FAR2XX7 ANT CBL,201-300M*
$1,995.00

Junction Box for FAR2XX7 100M+ Antenna Cable Run

$150.00
DVI-D Cable Assembly, 5 Meters
$125.00

DVI-D Cable Assembly, 10 Meters

$125.00
Cable Assembly, Control Unit to Processor, 10 Meters (6-Pair - For Newly Installed Radars)
$105.00
Cable Assembly, Control Unit to Processor, 10 Meters (For Pre-2007 Radars)
$195.00
Cable Assembly, Control Unit to Processor, 30 Meters (For Pre-2007 Radars)
$105.00
Cable Assembly, Control Unit to Control Unit, 10 Meters
$145.00
Cable Assembly, Control Unit to Control Unit, 20 Meters
$195.00
GO TO 001-247-710-00
$225.00
6 PAIR CONN CBL 20M CONT/PRCSR*
$350.00
6 PAIR CONN CBL 30M CONT/PRCSR
$225.00
CBL LAN FR-FTPC-CY 10M W/O CON*
$430.00
CBL LAN FR-FTPC-CY 20M W/O CON*
$470.00
CBL LAN FR-FTPC-CY 30M W/O CON*
$350.00
LAN Cable Kit with Connector, 30 Meters
$115.00
Interconnect Cable for EG3000/FAR2XX7 Simulator, 1.5 Meters
$25.00
NULL MODEM CABLE 9P F TO 9P F

Related Products

Related Products

$11,995.00

FAR2XX7 CHART RADAR OPTION *

$2,495.00

Compact Dome Satellite Compass, NMEA2000 (1.0 degree Heading Accuracy) w/6M Cable

$5,295.00

High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

$11,095.00

4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy)

Miscellaneous Accessories

Miscellaneous Accessories

$695.00

Memory Card Reader Interface

$1,095.00

Keyboard Control Unit with Trackball & 10m Cable

$850.00

Trackball Control Unit & 10m Cable with Power Switch

$975.00
Trackball Control Unit w/attached 10m Cable without Power Switch
$595.00
Step-Down Transformer, 220VAC to 200VAC
$675.00
Step-Down Transformer, 380/440VAC to 110VAC
$1,000.00
Step-Down Transformer, 440VAC to 220VAC
$825.00
Step-Up Transformer, 110VAC to 220VAC
$1,075.00
Rectifier 110/220VAC to 24VDC, 7 Amps
$4,495.00

19" Color LCD Monitor without bracket

$595.00

Gyro Converter

$595.00
Interswitch Hub
$1,395.00

Gyro Analog to Digital Converter, Digital Heading Repeater (External)

$31.60
WAGO Plug, 14-Pin TB801 O3P9349
$27.50
WAGO Plug, 12-Pin TB803 03P9349
$3.00
WAGO Tool, Small
$135.00
Display Dust Cover
$515.00
Display Desktop Mounting Bracket
$75.00
Control Unit Flush Mounting Kit
$625.00
Display and Keyboard Combining Kit, MU190
$125.00

Display Handles for FAR2XX7 Displays MU190 and MU231, 2 each.

$1,495.00

DVI-RGB Converter Kit for FAR2XX7 Series Radar

$580.00
GO TO 000-177-146-12

Manuals

Manuals

$40.00
Installation Manual, FAR2XX7 Series
$50.00
Operator's Manual, FAR2XX7 Series

Recommended Additions

  • GP170D

    $3,295.00

    GPS Navigator with DGPS Installed

    Details
  • FA170

    $3,995.00

    Class A AIS Transponder w/ 4.3" Color LCD Display

    Details
  • SC70

    $5,295.00

    High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

    Details
  • MFDBB

    $9,795.00

    NavNet 3D Black Box Multi Function Display Processor W/O LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)

    Details
  • MU190HD

    $7,295.00

    19" Color LCD Monitor without bracket

    Details
View All

FAR2157 and FAR2167DS Brochure

For more information, including dimensions and product specifications, download the brochure.
