FCV800

MSRP: $1,495.00

8.4" TruEcho CHIRP™ and/or CW Fish Finder

Display Size8.4 inches

Display TypeColor LCD

FrequencyCW 50-200kHz or CHIRP 40kHz to 225kHz

Power Usage12-24 VDC

Power Output600 W or 1 kW

Range1200 m

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FCV800

Versatile Fish Finder for any vessel!

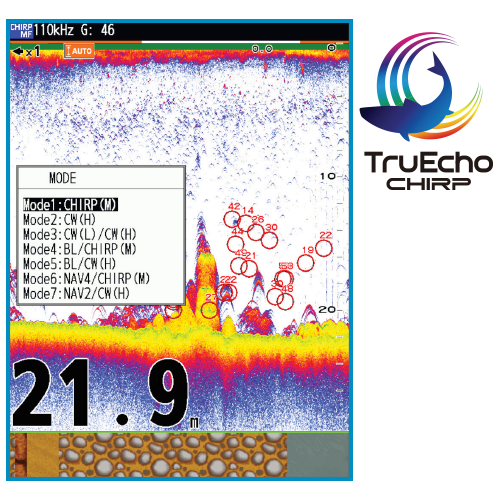

Furuno’s new stand-alone Fish Finders introduce all-new features that fishermen will love, built on the foundation of award-winning Furuno features that fishermen rely on. The 8.4” FCV800 can drive either a CHIRP or dual-frequency CW (Continuous Wave) transducer, allowing fishermen to configure the Fish Finder to suit their needs. Furuno’s TruEcho CHIRP™ delivers greater detail and target separation for baitfish, game fish, and structure by transmitting across a spectrum of frequencies.

Better still, the FCV800 features dual transducer ports, allowing for the simultaneous use of CHIRP and CW channels and unlocking amazing features for the CHIRP environment, such as Bottom Discrimination and Furuno’s Accu-Fish fish size assessment tool. With the FCV800’s ability to drive both TruEcho CHIRP™ and CW options simultaneously, these sought-after CW-only features can be combined with TruEcho CHIRP’s frequency-modulated signal to deliver those Furuno features while providing better resolution for targets on the screen.

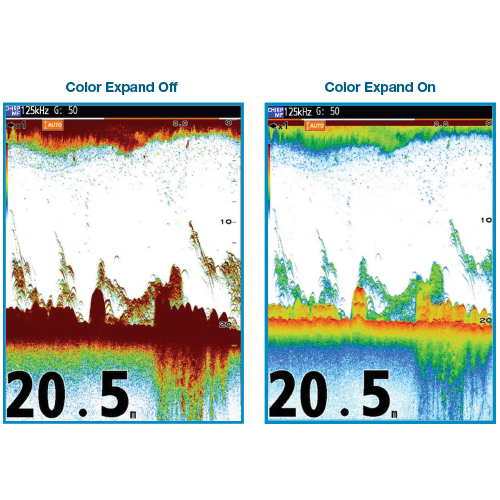

Color Range Expansion shows you what you've been missing!

With the conventional color ranges, echoes from the seabed and a large fish are shown in a similar color, making it challenging to distinguish large fish from the bottom. With Color Range Expansion, the range of identifiable echoes is expanded so you can intuitively identify bottom fish from the seabed. Reefs, structure, and fish near the seabed are shown in slightly separated colors, making it easy to tell structure from fish at a glance.

Feature-packed Fish Finder with legendary Furuno quality

  • TruEcho CHIRP™- Operates across a wide range of frequencies using a broadband transducer for better signal clarity & target definition RezBoost™ Signal Processing - Improved clarity & resolution for conventional CW transducers
  • ACCU-FISH™ - A unique fish size and depth assessment function
  • Bottom Discrimination - Provides recognition of bottom composition with 4 types of graphic displays (Rock/Sand/Gravel/Mud)
  • NEW! Bottom Hardness Output - for external plotters such as TZ Professional and Olex (FCV800 only)
  • NEW! Color Expansion - Expands echo colors to easily identify fish from seabed
  • White Line Feature - Finds fish lying near the bottom by displaying the top edge of the bottom in white to clearly show bottom structure
  • Configurable Alarm Function - Depth, Fish echo, Speed, Arrival, and more!
  • TLL (Target Lat/Lon) Output - Interface with your Furuno Chart Plotter to mark fishing grounds with various information such as Depth, Water Temp, Fish Size, and Bottom Type (FCV800 only, requires a Chart Plotter)
  • Fast Transmission Rate- 3,000 PRR (Pulse Repetition Rate) per minute
  • NEW! Colors - Sunlight and Yellow color palettes
  • NEW! Wireless Connectivity – Wireless second display for simple installation

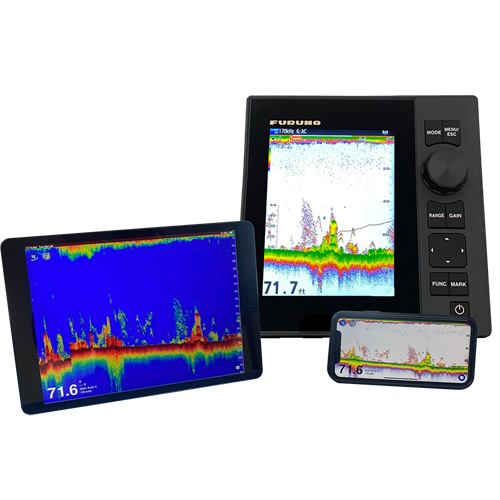

Wireless Connection to TZ iBoat

The FCV600 and FCV800 are compatible with the TZ iBoat App from TIMEZERO, offering anglers control of their Fish Finder from anywhere on the boat, welcome news for anglers who want to utilize their Fish Finder while managing the reels, or from anywhere on the boat. A one-time purchase of the dedicated Fish Finder module from within the TZ iBoat app puts control of your FCV600 or FCV800 right in your pocket!

Dual transducer ports offer the best of both worlds!

The FCV800 features dual transducer ports that offer the best of both worlds. Furuno features such as Bottom Discrimination, a feature that displays what kind of material the bottom is composed of, and Furuno’s Accu-Fish fish size assessment tool, require a dual-frequency CW transducer. At the same time, Furuno’s TruEcho CHIRP™ delivers greater detail and target separation for baitfish, game fish, and structure by transmitting across a spectrum of frequencies. With the FCV800’s ability to drive both TruEcho CHIRP™ and CW options simultaneously, these sought-after CW-only features can be combined with TruEcho CHIRP’s frequency-modulated signal to deliver those Furuno features while providing better resolution for targets on the screen.

  • Cables
  • Single Band Chirp Transducers
  • Dual Band Chirp Transducers
  • 50 200 kHz Bottom Discrimination Transducers
  • 50 200 kHz Transducers
  • Miscellaneous Accessories

Cables

Cables

$350.00
Transducer Extension Cable 02S4167-0
$89.00
12-Pin Transducer Extension Cable, 10 Meter
$120.00
FCV800 Y-Cable for multi-channel CHIRP Transducer
$50.00
NMEA2000 Micro Cable, 1 Meter, Male-Female connectors (straight)
$60.00
NMEA2000 Micro Cable, 2 Meter, Male-Female Connector
$80.00
NMEA2000 Micro Cable, 6 Meter, Male-Female Connector
$55.00
NMEA2000 Micro Cable, 1 Meter, Female Connector + Pigtail
$80.00
NMEA2000 Micro Cable, 2 Meter, Female Connector + Pigtail
$70.00
CBL NMEA2K MICRO-F 6M S-END

Single Band Chirp Transducers

Single Band Chirp Transducers

$475.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 300W
$350.00
Medium-Frequency CHIRP Transducer with Temperature - Plastic Transom Mount, 300W
$725.00
Low-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 300W
$750.00
Low-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull, 300W
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 600W
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 12° Tilt
$750.00
Medium-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 20° Tilt
$900.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block
$750.00
High-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull
$750.00
High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull
$750.00
High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 12° Tilt
$750.00
High-Frequency CHIRP Transducer with Temperature - Stainless Steel Thru-Hull with 20° Tilt
$500.00
High-Frequency, Wide-Beam CHIRP Transducer - Plastic Transom Mount
$1,400.00
Low-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull, 1kW
$1,400.00
GP1X71F BR TH 40/60KHZ 1KW
$1,400.00
GP1X71F BR TH 40/60KHZ 1KW
$1,300.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull
$1,300.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with 12° Tilt
$1,600.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with 20° Tilt
$1,000.00
Medium-Frequency CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless Bracket
$1,300.00
Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block
$1,100.00
High-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with 12° Tilt
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with 20° Tilt
$1,200.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless Bracket
$1,400.00
High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block

Dual Band Chirp Transducers

Dual Band Chirp Transducers

$1,600.00

Bronze, Thru-Hull CHIRP Transducer, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz

$1,400.00

Urethane, 1kW Tank/Cavity/Pocket Mount CHIRP Transducer, 42-65kHz and 130-210kHz

$2,100.00

Bronze, Thru-Hull CHIRP Transducer w/Temp, Low-Freq: 42-65 kHz, High-Freq: 150-250 kHz

$1,800.00
Plastic, Transom Mount CHIRP Transducer w/Temp, Low Freq: 42-65 kHz, High Freq: 150-250 kHz
$2,670.00
Urethane, 1kW Tank/Cavity/Pocket Mount CHIRP Transducer, 42-65kHz and 150-250kHz

50 200 kHz Bottom Discrimination Transducers

50 200 kHz Bottom Discrimination Transducers

$190.00

Plastic Thru-Hull Transducer, 600W (10-Pin)

$330.00

Bronze Thru-Hull Transducer, 600W (10-Pin)

$120.00

Plastic Transom Mount Transducer, 600W (10-Pin)

$195.00

Plastic Transom Mount Multisensor, 600W (10 Pin) ID
Airmar P66 Housing Style Transducer

$450.00

Bronze Thru-Hull Multisensor with High-Speed Fairing Block, 600W (10-Pin)
Airmar B744V Housing Style Transducer

$100.00

Plastic Thru-Hull, Low Profile, Transducer, 600W (10-Pin)

$120.00

Plastic Transom Mount Transducer with Temp, 600W (10-Pin)

$230.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin)

$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$275.00

Bronze Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 12° Tilted Element

$400.00

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element

$980.00

Rubber Coated Transducer, 1kW (No Plug)

$1,400.00

Bronze Thru-Hull Transducer with Temp, Built-in Diplexer and Hi-Speed Fairing Block, 1kW (10-Pin)

50 200 kHz Transducers

50 200 kHz Transducers

$875.00

Bronze Thru-Hull Transducer, Type 200B-5, 1kW (No Plug)

$0.00

GO TO CA50B-6B

$280.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 15m Cable (No Plug)

$555.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 30m Cable (No Plug)

$810.00

Rubber Coated Transducer, Type 50B-6B, 1kW, 50m Cable (No Plug)

Miscellaneous Accessories

Miscellaneous Accessories

$100.00
FLUSH MOUNT KIT OP02-88 FCV800
