DFF1-UHD

MSRP: $1,695.00

Price Less Transducer

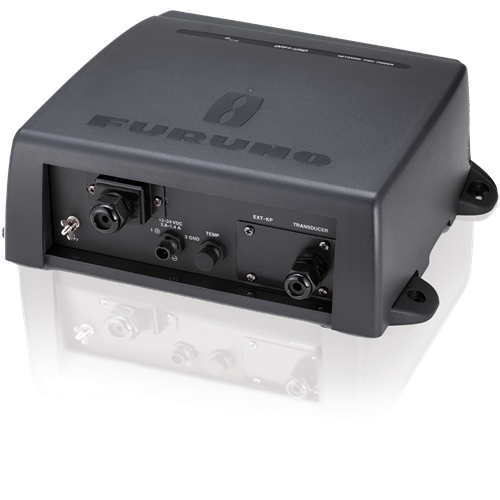

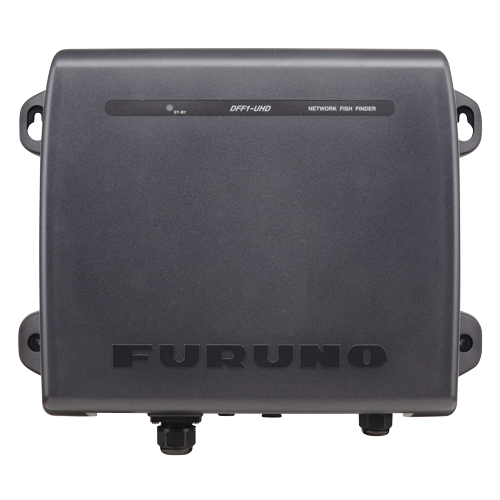

TruEcho CHIRP Black Box Fish Finder Module for NavNet TZtouch2, TZtouch and NavNet 3D w/5M LAN Cable, Less Transducer

Display SizeSupplied Separately

Display TypeSupplied Separately

FrequencyCHIRP 30-70 kHz and 175-225 kHz

Power Usage12-24 VDC

Power Output1 kW

Range4000 ft

Prices and Specifications Subject to Change Without Notice.

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products DFF1-UHD

TruEcho CHIRP™ sweeps across 90 frequencies

Designed to operate over a wide range of frequencies utilizing a broadband transducer, the DFF1-UHD TruEcho CHIRP™ network sounder for NavNet TZtouch2, TZtouch and NavNet 3D delivers significant advancements in signal clarity and target definition. Standard, non-CHIRP Fish Finders operate at one or two individual frequencies and are generally capable of detecting targets and displaying them only within those narrow frequency bands. CHIRP Fish Finders transmit pulses across a wide range of frequencies, allowing Furuno’s superior digital signal processing (DSP) to display fish and structure targets with unparalleled clarity, accuracy and resolution. The DFF1-UHD uses a precise sweep pattern across 90 frequencies (50 kHz +/- 20 kHz, 200 kHz +/- 25 kHz) within a long-duration transmission. The equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional Fish Finder, resulting in more energy on target. The results are up to 5x greater resolution and depth capability than comparably powered, standard Fish Finders due to the advanced signal processing of the return echo.

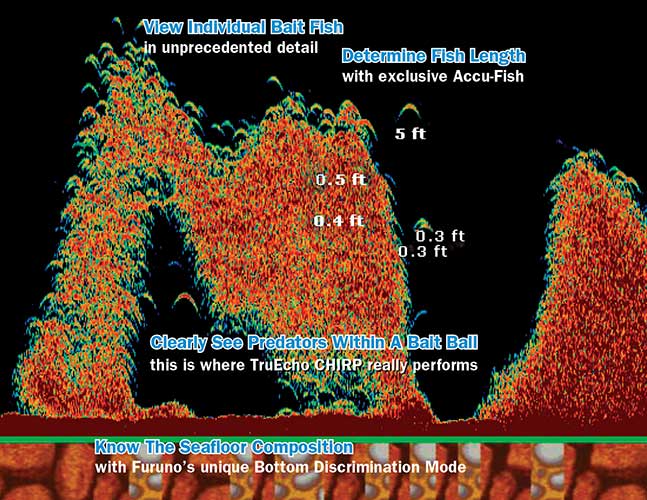

Enjoy eye-popping target definition

The clear presentation of the DFF1-UHD marks individual game fish and bait fish, even when tightly schooled together or very near the sea floor. The sound energy transmitted by the DFF1-UHD into the water is up to 1,000 times greater than a conventional Fish Finder, resulting in more energy on the target. Utilizing our Furuno Digital Filter (FDF) signal processing results in up to 5x greater resolution and depth capability than comparably powered standard Fish Finders. Furuno is evolving CHIRP technology to the next level by adding unique capabilities, such as Bottom Discrimination and Accu-Fish.

Furuno Digital Filter (FDF™) Fish Finder

Furuno Digital Filter (FDF™) Fish Finders feature advanced filtering capabilities and digital auto tuning, which eliminates noise. Furuno FDF Fish Finders deliver the ability to spot individual fish with clarity, accuracy and detail. Whether in shallow or deep water, Furuno FDF Fish Finders give you what you would expect from a Fish Finder at all times.

Know more about the fish under your boat

Furuno’s award winning network Fish Finders offer a unique fish size analyzer function, ACCU-FISH™. The ACCU-FISH™ algorithm analyzes echo returns to compute individual fish size and display it on the screen.

Classify the seafloor with Bottom Discrimination Mode

Utilizing input from the Network Fish Finders BBDS1 or DFF1-UHD, the bottom discrimination display will be shown in the following four categories; "Rocks", "Gravel", "Sand" and "Mud", either in dedicated graphics or colors with corresponding probability. This information is helpful in spotting rich fishing grounds where you can boost your catch of the day.

  • Cables
  • Transducers
  • Bottom Discrimination Transducers
  • Miscellaneous Accessories

Cables

Cables

000-157-939-10
$95.00
POWER CABLE ASSY 3.5M DFF3D
001-167-880-10
$55.00
LAN CBL ASSY 2M RJ45XRJ45 4P
001-167-900-10
$100.00
LAN CBL ASSY 10M RJ45XRJ45 4P
000-176-984-10
$50.00
CONN ASSY W/2M CBL 6P WP ST
001-205-780-00
$150.00
DFF1-UHD KP KIT for use with assorted sounders or DFF3D to DI-FFAMP

Transducers

Transducers

TM275LHW
$1,800.00
Plastic, Transom Mount CHIRP Transducer w/Temp, Low Freq: 42-65 kHz, High Freq: 150-250 kHz
B275LHW
$2,100.00

Bronze, Thru-Hull CHIRP Transducer w/Temp, Low-Freq: 42-65 kHz, High-Freq: 150-250 kHz

PM275LHW
$1,900.00
Bronze, Pocket Mount CHIRP Transducer w/Temp, Low-Freq: 42-65 kHz, High-Freg: 150-250kHz

Bottom Discrimination Transducers

Bottom Discrimination Transducers

B265LH
$1,600.00

Bronze, Thru-Hull CHIRP Transducer, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz

PM265LH
$1,600.00

Bronze, Pocket Mount CHIRP Transducer w/Temp, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz

Miscellaneous Accessories

Miscellaneous Accessories

HUB101
$860.00

Dedicated Interswitch Hub for NavNet 3D

HUB102
$395.00
5-Port Ethernet Hub for NavNet

Recommended Additions

  • HR-TZTBB-reflection.png

    TZTBB

    $2,995.00

    NavNet TZtouch Black Box System less Multi Touch Display

    Details
  • MFDBB-Front-Reflection.png

    MFDBB

    $9,795.00

    NavNet 3D Black Box Multi Function Display Processor W/O LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)

    Details
  • HR-TZT14-reflection.png

    TZT14

    $5,695.00

    NavNet TZtouch 14.1" Multi Touch, Multi Function Display W/3M LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)

    Details
  • HR-RD33-reflection.png

    RD33

    $695.00

    4.3" Color LCD Navigational Data Organizer - NMEA2000 & NMEA0183 compatible, w/6M NMEA2000 Cable

    Details

NavNet TZtouch Brochure

For more information, including dimensions and product specifications, download the brochure.

Download TZtouch Brochure

DFF1-UHD Brochure

For more information, including dimensions and product specifications, download the brochure.

Download DFF1-UHD Brochure

NavNet TZtouch2 Brochure

For more information, including dimensions and product specifications, download the brochure.

Download TZtouch2 Brochure
