PM265LH

MSRP: $1,500.00

Bronze, Pocket Mount CHIRP Transducer w/Temp, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz

Beam Angle25 x 16 Degrees and 10 x 6 Degrees

FrequencyCHIRP 42-65 kHz and 130-210 kHz

Housing TypeBronze

Install TypeIn Hull

Power Rating1 kW

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products PM265LH

Transducer Features

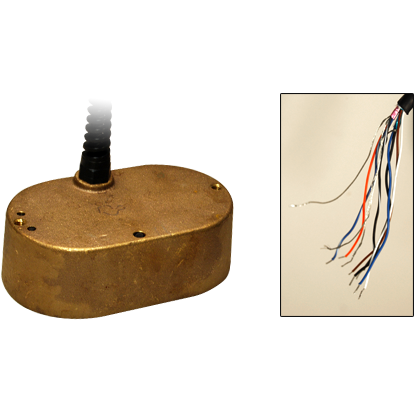

The PM265LH is a bronze CHIRP transducer with Temp for use with Furuno's CHIRP broadband Fish Finders.Its flat-faced design is ideal for pocket/keel-mount installations.

Traditional marine Fish Finders operate at discrete frequencies such as 50 kHz and 200 kHz, use relatively short-duration transmit pulses, and use narrowband sonar transducers. In contrast, CHIRP (Compressed High-Intensity Radar Pulse) uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer. The equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine Fish Finder. The echo energy returning to the transducer is likewise superior to that generated by a conventional transducer. The combination of CHIRP, a broadband transducer, and Furuno’s superior Digital Signal Processing, results in dramatically increased fish and bottom detection.

The PM265LH CHIRPS across the following bandwidths:



  • Low-Frequency: 42-65 kHz
  • High-Frequency: 130-210 kHz
