CSH10

MSRP: Call For Price

MUST ADD SONAR HOIST, SONAR SHAFT, AND INTERFACE CABLES

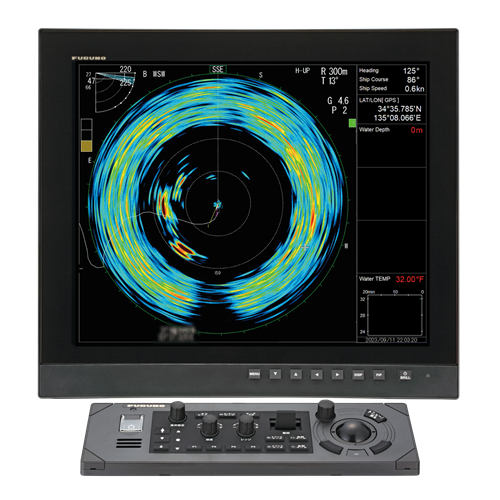

Black Box Full-Circle Scanning Sonar with Motion Sensor, 85kHz, less shaft and cables

Display SizeBlack Box

Display TypeBlack Box

Frequency85 kHz

Power Usage24 VDC

Range2000 m

Prices and Specifications Subject to Change Without Notice.

View Product Features/Accessories Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Support CSH10

Can't find what you are looking for?

Maybe try the forum or register your product.

Browse the Forum Ask a Question Register Products
  • Product Consists Of
  • Choose Sonar Hoist
  • Cables
  • Sonar Shafts And Hull Tubes
  • Marine Monitors
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

MUST ADD SONAR HOIST AND SONAR SHAFT
CSH1003
$6,825.00
Processor Unit for CSH10
SCU002/5
$1,470.00
Control Unit less Bracket with 5M cable for CSH10
CSH101
Call For Price
Transceiver Unit for CSH10
000-824-033
$80.00
Sonar Soundome Oil, 4 Liters
CSH1070
Call For Price
Transducer for CSH10
CSH1042
$1,220.00
Motion sensor for CSH10
CSH1080
$955.00
Dome for CSH10
001-656-390-00
$490.00
MAIN BODY FLANGE CSH104
001-656-400-00
$385.00
TANK GUIDE CSH10

Choose Sonar Hoist

Choose Sonar Hoist

***MUST ADD SONAR HOIST***
CSH1040
$8,265.00
Hoist Unit 400MM Travel for CSH10
CSH1041
$8,265.00
Hoist Unit 600MM Travel for CSH10

Cables

Cables

MUST ADD one of the following 5 pair cables: 001-196-330-10, 001-196-340-10, 001-196-350-10, or 001-196-370-10
CBL-LAN-LSM
$15.00
24 4PR CAT 5E LSZH LAN CBL
RJ4-5CN-CON
$8.00
RJ45 LAN CONNECTOR*
001-186-310-10
$125.00
CABLE 5M STD RCU026/5
001-186-320-10
$325.00
CBL 6TPSH-XH12X2 10M RCU026
001-186-330-10
$665.00
CBL 6TPSH-XH12X2 20M RCU026
001-186-340-10
$1,055.00
CBL 6TPSH-XH12X2 30M RCU026
001-196-330-10
$275.00
CBL VV-BB-CJ .3SQX5P 10M FSV
001-196-340-10
$535.00
CBL VV-BB-CJ .3SQX5P 20M FSV
001-196-350-10
$795.00
CBL VV-BB-CJ .3SQX5P 30M FSV
001-196-370-10
$1,325.00
CBL VV-BB-CJ .3SQX5P 50M FSV
001-522-690-00
$145.00
CBL ASSY TET-16-045A-2(L5M) RCU024/5 SCU003
001-522-700-00
$295.00
CBL ASSY TET-16-045A-2(L10M) RCU024/5 SCU003
001-522-710-00
$740.00
Cable Assembly TET-16-045A-4(L20M)
001-522-720-00
$1,140.00
CBL ASSY TET-16-045A-2(L30M) RCU024/5 SCU003

Sonar Shafts And Hull Tubes

Sonar Shafts And Hull Tubes

***MUST ADD SONAR SHAFT***
USE 001-656-510-00 WHEN SHAFT IS CUT TO LENGTH
CSH10SHAFT/1.2M
$1,470.00
3.9ft shaft for CSH10
CSH10SHAFT/2.5M
$2,640.00
8.2ft shaft for CSH10
CSH10SHAFT/3.5M
$3,750.00
11.5ft shaft for CSH10
001-656-510-00
$500.00
WATERPROOF ATTACHMENT OP10-63
TUBE/S1901
$1,700.00
Steel Hull Tube, 190mm ID x 1.0m L.O.A.
TUBE/S1918
$1,950.00
Steel Hull Tube, 190mm ID x 1.8m L.O.A.
TUBE/S1935
$4,350.00
Steel Hull Tube, 190mm ID x 3.5m L.O.A.
TUBE/A1901
$6,000.00
Aluminum Hull Tube, 190mm ID x 1.0m L.O.A.
TUBE/F1901
$2,200.00
FRP Hull Tube, 190mm ID x 1m L.O.A.
TUBE/F1918
$2,400.00
FRP Hull Tube, 190mm ID x 1.8m L.O.A.

Marine Monitors

Marine Monitors

MU152HD
$5,795.00
15" Color LCD Marine Monitor
MU192HD
$6,795.00
19" Color LCD Marine Monitor

Miscellaneous Accessories

Miscellaneous Accessories

***MUST ADD CABLE for SCU003***
SCU001
$435.00
Remote Controller
SCU002/5
$1,470.00
Control Unit less Bracket with 5M cable for CSH10
SCU003
$430.00
Small Switch Box less Cable
001-656-490-00
$232.00
TABLE MOUNT EXT FXG BRACKET SCU002
FSV854MK2/5
$1,750.00
REMOTE CONT 5M FSV85/25MK2
FSV854MK2/10
$1,900.00
REMOTE CONT 10M FSV85/25MK2
