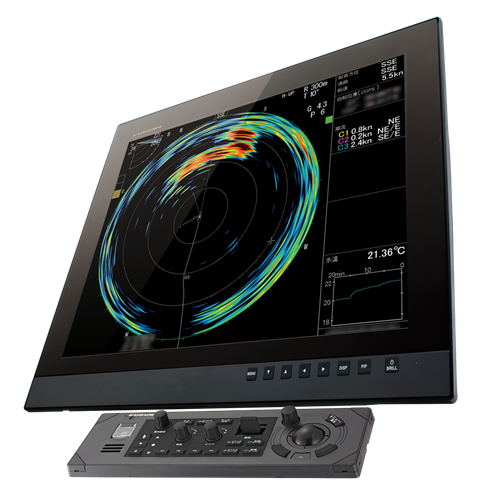

CSH10
MSRP: Call For Price
Must add Sonar hoist, shaft, & interface cables
Black Box Full-Circle Scanning Sonar with Motion Sensor, 85kHz, less shaft and cablesDisplay SizeBlack Box
Display TypeBlack Box
Frequency85 kHz
Power Usage24 VDC
Range2000 m
Prices and Specifications Subject to Change Without Notice.
All prices shown are in USD. Prices are valid in US and Canada only.
Instantly scan in all directions to reveal the underwater world!
The CSH10 360-degree Scanning Sonar instantly captures the underwater conditions in all directions, making it easy to instantly understand the situation beneath the vessel, such as schools of fish, the seabed, and dropped lines. The 85 kHz frequency detection delivers excellent performance to distinguish between shoals of fish and bottom-trawling fish, and the sharp beam width is effective for detecting schools of fish near the surface. Equipped with a motion sensor as standard supply, Furuno's unique beam stabilization technology enables stable image display even in rough weather.
Because a Full-Circle Scanning Sonar emits ultrasonic waves in all directions 360 degrees around the ship, instantly detecting and displaying images, its detection speed is much faster than that of a Searchlight Sonar. the CSH10 can instantly detect the entire periphery, capturing the same school of fish multiple times, making it suitable for detecting fast-moving bonito and tuna.
Beam Stabilization for accurate detection
In rough weather, the vessel’s motion causes distortion in the display of fish echoes and target images. The CSH10 comes equipped with a motion sensor as standard supply, and Furuno's unique beam stabilization technology automatically adjusts the beam to the specified angle, correcting for ship’s motion in heavy seas. Transmission and reception beams can be stabilized independently, allowing stable detection of shallows and schools of fish even in rough seas.

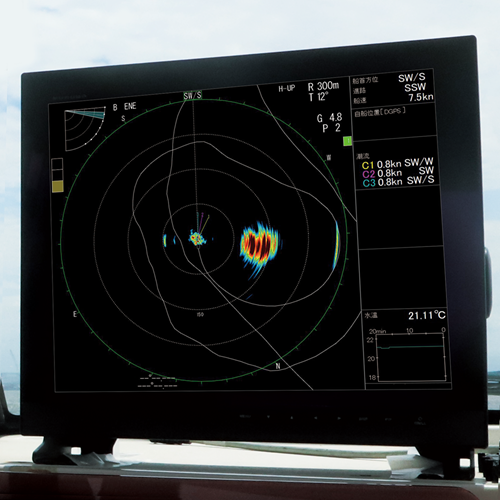

Furuno's unique signal processing technology provides clearer images than ever. Not only does the beam stabilization function provide stable capture, but the excellent resolution of the image helps you identify schools of fish as well as underwater topography and structure.
Target Lock and Fish Quantity Mark
Target Lock provides two modes: Position tracking and School of Fish tracking. When using position tracking mode, you can track the target reef or other area as a fixed position. Or, automatically track schools of fish, calculating and displaying the distance and depth from your ship, as well as the speed and direction of the school. When you add a Fish Quantity Mark, the fish school information will be displayed in the data display, showing the length, width, area, and fish quantity index value of the school of fish. The fish quantity index value is calculated from the area of the fish school echo displayed within the fish quantity mark.
Additionally, a tilt indicator has been added to the top left of the display screen. Tilt angle, linear/horizontal/vertical distance to cursor, beam detection range, and beam width top/bottom depth are displayed, allowing intuitive echo position recognition.

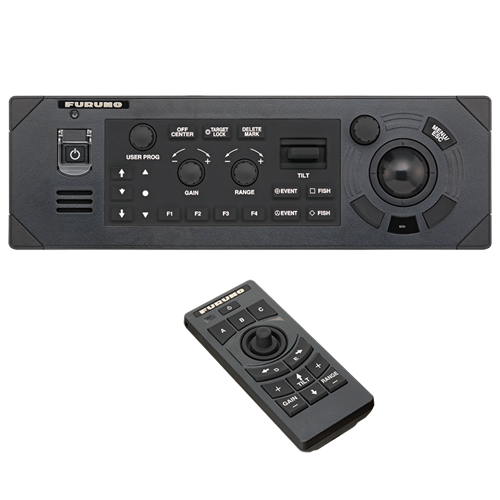

Redesigned Control Unit and Remote Control options
The new control unit is more compact than previous models, making it easy to install. Our popular function keys, tilt lever, sensitivity/range knob, and a large trackball are all available, and Furuno's phenomenal RotoKey™ is now included. With the new optional wired or wireless remote control units, you can easily set your range, tilt angle, and sensitivity from a distance. The wireless remote control can be used with up to four units via Bluetooth® connection.
Compatible with NavNet TZtouchXL
The CSH10 360° Scanning Sonar is fully compatible with NavNet TZtouchXL, allowing seamless integration and total control. Once connected, the CSH10 is recognized as a native sensor, automatically unlocking a dedicated Sonar display on the MFD. Easily control CSH10 settings, adjust key parameters like tilt and gain, monitor system status, and create event marks to track important underwater targets.
With Furuno's unique Sonar Overlay, you can display real-time Sonar echoes directly on your chart, allowing you to see fish targets in relation to charted objects, structure, and underwater topography. Understanding where fish are located relative to wrecks, reefs, drop-offs, and other key underwater features enhances situational awareness and helps you make more informed decisions when fishing or navigating complex environments.
Watch the video to learn more
Learn more about the next-generation CSH10 Sonar.
- Product Consists Of
- Choose Sonar Hoist
- Cables
- Sonar Shafts And Hull Tubes
- Marine Monitors
- Miscellaneous Accessories
Product Consists Of
Product Consists Of
Choose Sonar Hoist
Cables
Cables
Sonar Shafts And Hull Tubes
Sonar Shafts And Hull Tubes
USE 001-656-510-00 WHEN SHAFT IS CUT TO LENGTH
Marine Monitors
Miscellaneous Accessories
Miscellaneous Accessories
