MSRP: $1,495.00

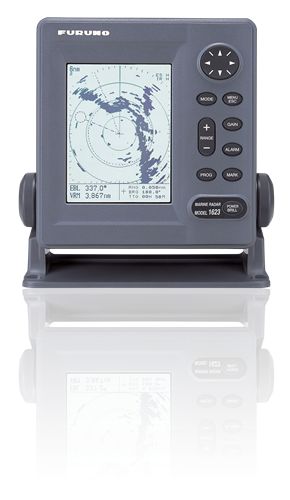

2.2 kW Transmitter, 16 NM Radar System with 6" Monochrome LCD Display and 15" Radome

Antenna Size15 inches

Antenna TypeRadome

BandX-Band

Display Size6 inches

Display TypeMono LCD

Beam Width6.2 degrees

Power Usage12-24 VDC

Power Output2.2 kW

Range16 nm

Prices and Specifications Subject to Change Without Notice.

View Product Features/Accessories Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Support 1623

Frequently Asked Questions

Topics

Top 5 Results

Can't find what you are looking for?

Maybe try the forum or register your product.

Browse the Forum Ask a Question Register Products
  • Product Consists Of
  • Cables
  • Related Products
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

1623DISP
$825.00

6 Inch Monochrome LCD Display, with Standard Accessories

RSB0093-074
$1,275.00

15 Inch Radome with 2.2 kW Transceiver

001-122-790
$210.00
10 Meter Signal Cable Assembly

Cables

Cables

The Maximum Signal Cable Length is 20 Meters for 12VDC. The 30 Meter Signal Cable is usable with 24VDC Power Input Only.
001-122-780
$145.00
5 Meter Signal Cable Assembly
001-122-790
$210.00
10 Meter Signal Cable Assembly
001-122-870-10
$490.00
15 Meter Signal Cable Assembly
001-122-880-10
$550.00
20 Meter Signal Cable Assembly
001-122-810-10
$475.00
30 Meter Signal Cable Assembly (24 VDC USE ONLY)
000-147-564
$65.00
Power Cable Assembly
000-145-690
$50.00
Data Y-Cable, 7P(F) TO 7P(M) and 6P(M), .5 Meters
001-260-690-00
$60.00
NMEA CBL 2M 7P(F)-7P(F) NULL
000-154-028
$110.00
NMEA Cable, 1 x 7 Pin Connector, 5 Meters

Related Products

Related Products

PR62
$850.00

Rectifier, 110/220VAC to 24VDC, 2.5 Amps

BBWGPS
$400.00

Black Box WAAS/GPS Receiver

Miscellaneous Accessories

Miscellaneous Accessories

AUMOUNT-2
$395.00

Radome Mast Mount Bracket

000-790-409
$40.00
Display Mounting Bracket
100-298-472
$8.00
Display Mounting Knob, Two Pieces Required
100-298-434
$15.00
Display, Snap-on Front Cover
100-298-436-10
$15.00
Display Snap On Cover For LS6100/1623
001-203-340-10
$90.00
BUZZER ALARM NAVNET BB 1623

Manuals

Manuals

OME-351-00Z
$50.00
Operator's Manual, 1623
