1623

MSRP: $1,595.00

2.2 kW Transmitter, 16 NM Radar System with 6" Monochrome LCD Display and 15" Radome

Antenna Size15 inches

Antenna TypeRadome

BandX-Band

Display Size6 inches

Display TypeMono LCD

Beam Width6.2 degrees

Power Usage12-24 VDC

Power Output2.2 kW

Range16 nm

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products 1623

Small in size, big on power, clarity and advanced radar features

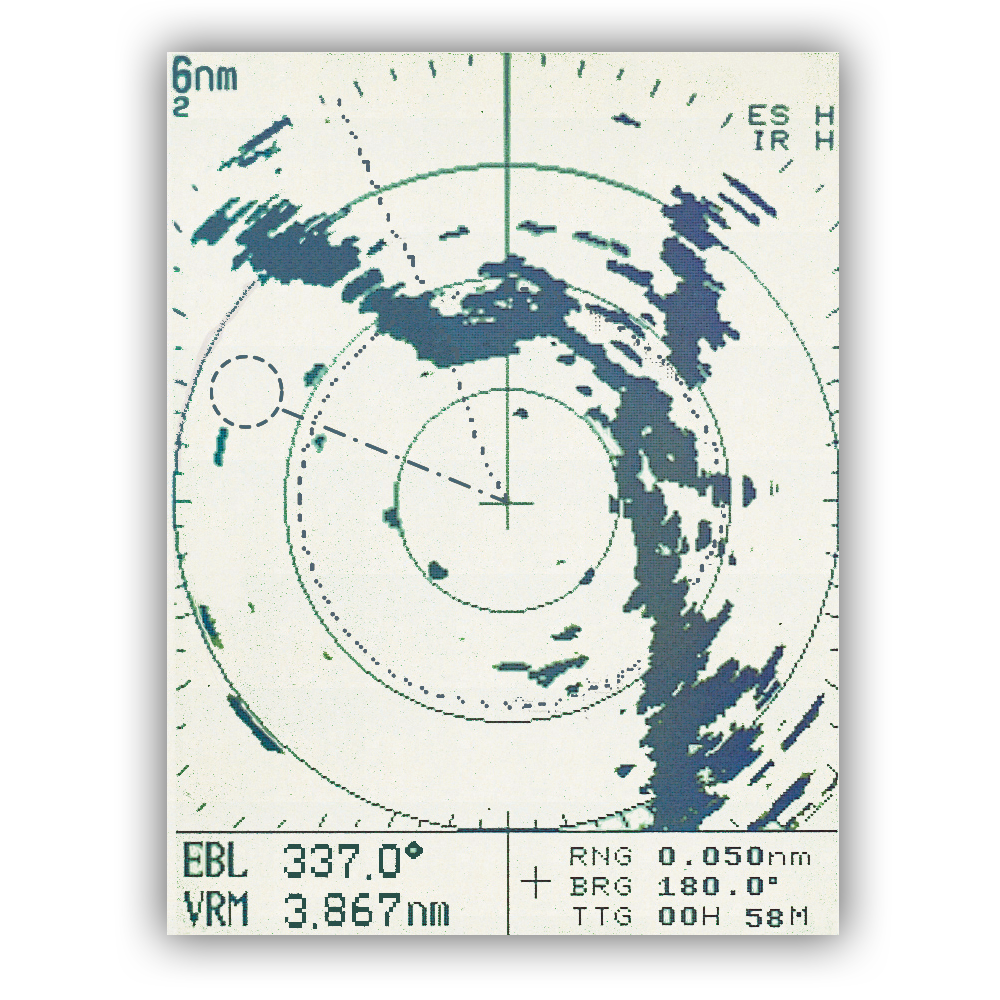

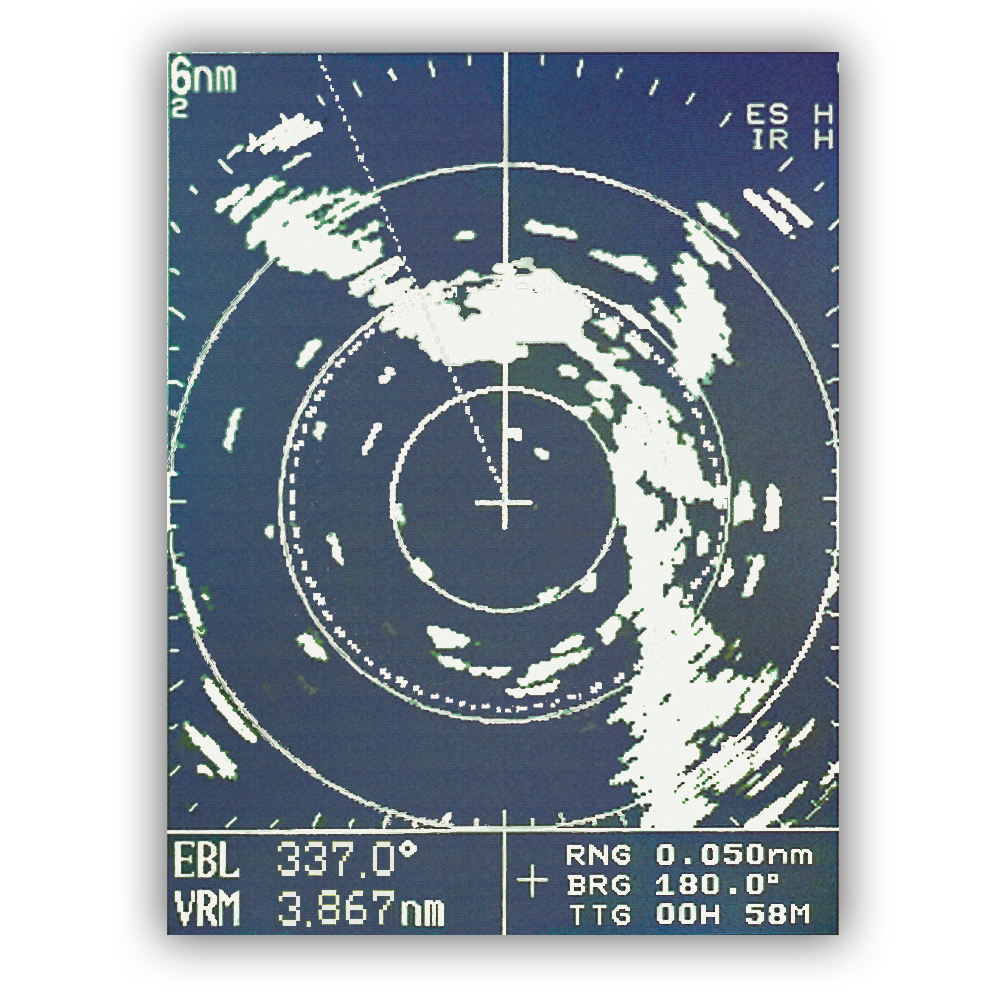

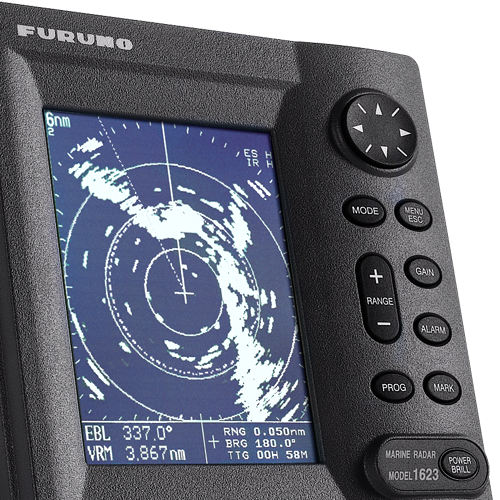

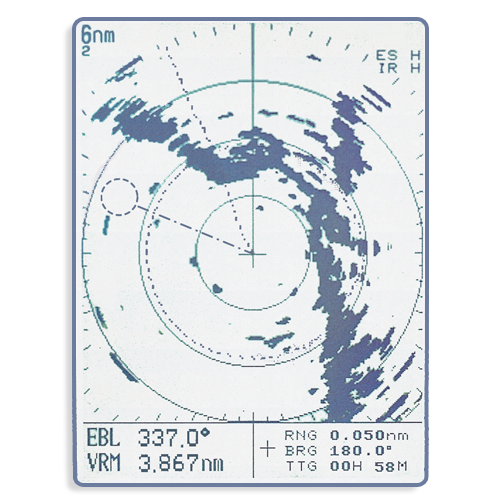

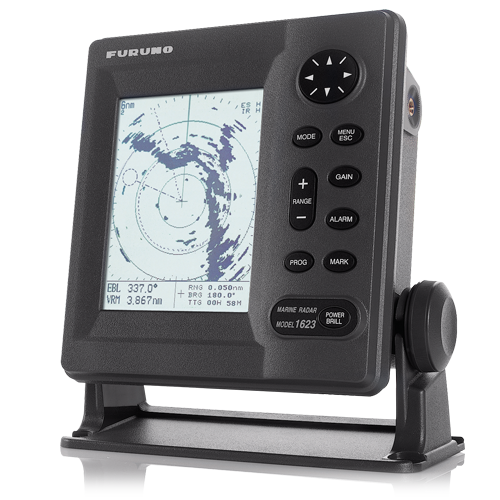

The slim-line monochrome LCD display and lightweight radome antenna make it ideal for power or sail boats as small as 17 feet. This 2.2kW radar has a 16 nautical mile range, yet will zoom down to 1/8 nautical mile for tight navigation in harbors and inlets. The 1623 radar lets you readily identify objects, thanks to a high definition 6" Silver Bright LCD screen that clearly separates targets. Plus, the four-tone target display lets you easily differentiate between stronger and weaker echoes, helping to alert you of any danger.

User-friendly operating modes

The 1623 features many user-friendly operating modes, including normal, Off-center, Zoom, and Watchman mode. In Watchman, mode, the antenna is stopped and transmission is off, while the screen displays useful navi data only. The Radar wakes up at specified time intervals (5, 10, or 20 minutes) and operates for one minute. If a target enters the Guard Zone, an audible alarm sounds and the Radar goes into normal operating mode, cancelling the Watchman mode. The alarm may also be set to work for a target leaving the Guard Zone.

Big Radar features in a compact display

Standard features include EBL's (Electronic Bearing Lines), EVRM's (Electronic Variable Range Markers), TLL (Target Latitide/Longitude) output, Echo Trail, Guard Zone Alarm, Ran Clutter rejection, and automatic control of tuning sensitivity. These features ensure optimum performance in detecting and ranging targets of interest. You can also set a waypoint mark, or 'lollipop,' to show the location of a destination waypoint that you've set on a connected GPS Navigator or Chart Plotter.

  • Product Consists Of
  • Cables
  • Related Products
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$825.00

6 Inch Monochrome LCD Display, with Standard Accessories

$1,275.00

15 Inch Radome with 2.2 kW Transceiver

$175.00
10 Meter Signal Cable Assembly

Cables

Cables

The Maximum Signal Cable Length is 20 Meters for 12VDC. The 30 Meter Signal Cable is usable with 24VDC Power Input Only.
$125.00
5 Meter Signal Cable Assembly
$175.00
10 Meter Signal Cable Assembly
$400.00
15 Meter Signal Cable Assembly
$450.00
20 Meter Signal Cable Assembly
$475.00
30 Meter Signal Cable Assembly (24 VDC USE ONLY)
$65.00
Power Cable Assembly
$50.00
Data Y-Cable, 7P(F) TO 7P(M) and 6P(M), .5 Meters
$40.00
NMEA Cable, 7P(F) to 7P(F) Null, 2 Meters
$85.00
NMEA Cable, 1 x 7 Pin Connector, 5 Meters

Related Products

Related Products

$650.00

Rectifier, 110/220VAC to 24VDC, 2.5 Amps

$400.00

Black Box WAAS/GPS Receiver

Miscellaneous Accessories

Miscellaneous Accessories

$8.00
Display Mounting Knob, Two Pieces Required
$15.00
Display, Snap-on Front Cover
$40.00
Display Mounting Bracket
$90.00
BUZZER ALARM NAVNET BB 1623
$395.00

Radome Mast Mount Bracket

Manuals

Manuals

$50.00
Operator's Manual, 1623

Recommended Additions

  • BBWGPS

    $400.00

    Black Box WAAS/GPS Receiver

    Details
  • RD33

    $695.00

    4.3" Color LCD Navigational Data Organizer - NMEA2000 & NMEA0183 compatible, w/6M NMEA2000 Cable

    Details
  • GP33

    $695.00

    GPS/WAAS Navigator with 4.3" Color LCD, w/6M NMEA2000 Cable

    Details

1623 Brochure

For more information, including dimensions and product specifications, download the brochure.
