RC1825

MSRP: Call For Price

250 Watt GMDSS Compliant Communications Console for use in Sea Areas A1, A2 and A3

Power Usage110 VAC or 220 VAC

Power Output250 W

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products RC1825

Proven solutions for INMARSAT MINI-C service

The FELCOM19 is an Inmarsat MINI-C Mobile Earth Station terminal, compatibile with LRIT applications. It features SSAS capability with optional SSAS alert units. A wide variety of communication schemes available, including telex, FAX, e-mail, EGC (non-GMDSS), and Data reporting/polling. A GPS receiver is incorporated, and its black-box configuration allows for flexible installation.

Inmarsat-C Mobile Earth Station terminal for GMDSS application

The FELCOM18 is FURUNO's new Inmarsat-C Mobile Earth Station. It provides a high quality two-way telex and data link between ships and other parties at sea or on land. All functions and services of the Inmarsat-C system are provided: EGC (Safety NET/FleetNET), distress message handling, two-way digital store-and-forward messaging including polling, data reporting, E-mail, etc. Distress alert are initiated by the remote distress alert unit. The distress message including own ship's position is easily edited. A PC can be used for editing the message via Ethernet when it is supplied with dedicated software.

Fully meets GMDSS requirements for SOLAS vessels

The Furuno FM8900S is a Semi-duplex 25-Watt VHF Radiotelephone with a built-in Class-A DSC and CH70 watch Receiver. It features an easy-to-read, high-contrast 4.3" bright color LCD, enhanced noise reduction and speaker for superb voice quality, and quick-access CH16 key. Channel selection is simplified with the inclusion of both a rotary control and direct keypad input. Automatic entry of own ship position and time is accomplished through interfaced GPS receiver. The FM8900S can also connect to an office or home via an existing PSTN (Public Switched Telephone Network).

The FM8900S scans all channels in the selected region as well as watches CH16 in alternate shifts.In the menu, all tasks are assigned numbers, and the operator can access each of the menu items either by turning and pressing PUSH TO ENTER knob or simply pressing the corresponding numbers on the numeric keypad for simplified operation. It features a Replay function that records the latest 120 seconds of incoming communication on the currently set channel. By simply pressing the “REPLAY” button on the numeric keypad, the last-received message will be played back on the spot.

The FM8900S fully meets GMDSS carriage requirements for SOLAS ships, as well as new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-13. ATIS signal transmission is available for inland waterways.

Reliable MF/HF radiotelephone with integrated DSC/DSC watch receiver

The 250 Watt FS2575 MF/HF Radiotelephone with DSC capability facilitates both general and GMDSS communication. It can operate as a DSC transceiver and as a DSC Watch Receiver on all distress and safety frequencies in MF and HF bands. An optional IB585 NBDP terminal can be connected to the transceiver unit for maritime telex operation and distress message/maritime safety information handling. It features a bright, high-contrast 4.3" color LCD (480x272 pixels). Multiple display configurations are available, as well as a Night Mode (white text on black background display) for wheelhouse operation. Instant selection of 256 user-specified channels is provided with a rotary knob or direct keypad input. Quick access to DSC message composition is available by dedicated keys on the control unit. The FS2575 fully meets GMDSS carriage requirements for SOLAS ships operating in A3 and A4 sea areas, as well as ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-13.

Space-saving GMDSS solution minimizes installation time

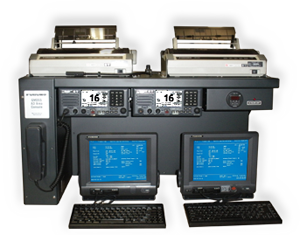

The RC18x5 is a pre-wired GMDSS Console that meets all of the carriage requirements for ships navigating in Sea Area A1/A2/A3. This simple and reliable package consists of the FM8900S DSC-VHF/FM Radiotelephone, FS1575 (150 Watt) or FS2575 (250 Watt) MF/HF Radiotelephone/DSC Watch Receiver/Telex, Felcom18 Standard-C Satcom System (DF version includes dual Felcom packages), IB585 Terminal Unit and PP520 Printer. Because the RC18x5 comes as a pre-wired kit, it offers a flexible and space-saving solution which helps to minimize installation time on both existing vessels and new builds.

Easy operation with included file management, text editor and utility programs

The IB585 is a 10.4" color LCD display for use with RC1800 series GMDSS consoles. The IB585 displays messages at 72 characters/line with 25 lines/screen. File management, text editor and utility programs ensure easy operation. The terminal also comes with a disk drive.

designed to meet the rigorous demands of the marine environment

The PP520 is a GMDSS compliant dot matrix printer. It prints navigation information fed from the ship's radio communications system.

  • Product Consists Of
  • Related Products
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$5,020.00
GMDSS Console, Less Equipment. Not available for sale as a standalone item.
$195.00
GMDSS Console Shipping Crate
$3,295.00

External Rectifier Unit with Automatic AC to Battery Switching

$9,995.00

250 Watt MF/HF GMDSS Compliant Radiotelephone with DSC

$5,295.00

Inmarsat-C Ship Earth Station terminal for GMDSS applications. Full GMDSS compliance with optional printer and AC/DC power supply.

$2,195.00

25W VHF Semi Duplex Radiotelephone w/DSC, GMDSS Compliant

$2,995.00

NBDP Telex Terminal Unit

$1,495.00

PRINTER 24VDC GMDSS

Related Products

Related Products

$1,895.00

NAVTEX Receiver without printer GMDSS

$2,695.00

NAVTEX receiver with printer for SOLAS ships complying with the NAVTEX performance standard MSC.148(77)

Miscellaneous Accessories

Miscellaneous Accessories

$1,200.00

Remote Unit for VHF/FM Radiotelephone

$1,245.00

Multiple Remote Station Distribution Box

$395.00
Active Coupler with 0.6 Meter Interconnect Cable. Pre-Tuned at 518kHz
$630.00

Active Coupler with 15 Meter Interconnect Cable. Range: 80kHz to 30mHz

$1,390.00

Multi-Port Data Distribution Unit, with Eight Outputs

$1,145.00
Full Function, Waterproof Remote Handset with Display, FM8900.
$1,045.00
REMOTE UNIT W/ 1.5MCBL
$1,095.00

Rectifier, 110/220VAC to 24VDC, 20 Amps, with Automatic AC to Battery Power Changeover

$2,830.00

DISTRESS ALARM PANEL GMDSS

Manuals

Manuals

$25.00
Daily Test Manual, RC1800 Series
$40.00
Console Installation Manual, RC1800 Series
$7.00
Dealer Manual, RC1800 Series

Recommended Additions

  • GP170D

    $2,895.00

    GPS Navigator with DGPS Installed

    Details
  • FMD3200

    Call For Price

    Electronics Chart Display and Information System (ECDIS) w/19" Display

    Details
  • FAR3220BB

    Call For Price
    FAR3000 Series Black Box Chart Radar with Performance Monitor, 25kw X-Band, 96 NM
    Details
  • GS100

    $8,620.00

    Satellite Speed Log less antenna cable

    Details

GMDSS Guide Brochure

For more information, including dimensions and product specifications, download the brochure.
