NX700

MSRP: $1,895.00

NAVTEX Receiver without printer GMDSS

Display Size5 inches

Display TypeMono LCD

Power Usage12 VDC or 24 VDC

Receiver TypeNAVTEX

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products NX700

Enhance navigation safety by monitoring international and local channels

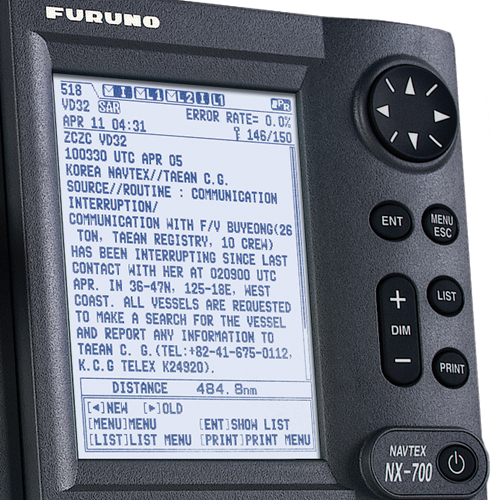

FURUNO NX700 is a dual-channel NAVTEX receiver for SOLAS ships complying with the new NAVTEX performance standard MSC.148(77) which is implemented on and after 1 July 2005. The NX700 can receives two channels simultaneously. One is set for 518 kHz to receive international NAVTEX messages and another is selectable from 490 or 4209.5 kHz for domestic or local NAVTEX messages. These messages include a variety of safety information such as Navigational Warnings, Meteorological Warnings, Search and Rescue (SAR) information and other information for ships sailing within the reach of each service station’s coverage. The broadcast station can be selected automatically according to own ship position when the NX700 is connected with a GPS navigator. Every incoming message is stored in non-volatile memory and is displayed on a clear 5" silver bright LCD. Three different font sizes are available and can be selected from the menu.

High sensitivity antenna requires no grounding

The NX700 has a low profile, stylish display, receiver and antenna unit. An external Serial (RS-232) printer can easily be connected for message printing. The compact, umbrella-type H-field antenna requires no grounding. In addition, the antenna incorporates a high-performance preamp within the compact body, which gives reliable and uninterrupted reception without an extra whip antenna.

  • Product Consists Of
  • Cables
  • Related Products
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$975.00
DISPLAY UNIT NX700
$1,280.00
RECEIVER UNIT NX700
$195.00
Navtex Antenna Coupler without Cable

Cables

Cables

$120.00
Antenna Cable Assembly, 06S4168, 20 Meters
$125.00
Antenna Cable Assembly, 06S4168, 30 Meters
$280.00
CBL 10M DISP TO RX DB25 NX700
$350.00
CBL 15M DISP TO RX DB25 NX700
$135.00
Cable Assembly, Display to Receiver, 3 Meters
$160.00
CBL 5M DISP TO RX DB25 NX700
$110.00
CBL 04S4168 10M ANT FAX/NAVTEX*
$145.00
CBL 04S4168 20M ANT FAX/NAVTEX*
$145.00
CBL 04S4168 30M ANT FAX/NAVTEX*
$165.00
CBL 04S4168 40M ANT FAX/NAVTEX*
$210.00
50M ANT CBL ASSY 06S4168 NX7

Related Products

Related Products

$975.00

Rectifier, AC to 24 VDC

$195.00
Navtex Antenna Coupler without Cable

Miscellaneous Accessories

Miscellaneous Accessories

$95.00
Flush Mounting Kit, OP08-20, NX700
$20.00
Display Mounting Knob (2 Pieces Required)
$35.00
Display Mounting Bracket

Manuals

Manuals

$50.00
Operator's Manual, NX700
$7.00
Operator's Guide, NX700

Recommended Additions

  • FAR2127

    Call For Price

    25 kW Transmitter, 96 NM Radar System with 19" Color LCD Display, less Antenna

    Details
  • FM8900S

    $1,995.00

    25W VHF Semi Duplex Radiotelephone w/DSC, GMDSS Compliant

    Details
  • FCV1150

    $5,195.00

    12.1 Inch Color LCD Sounder, Less Transducer

    Details
  • CI68BB

    Call For Price

    Black Box Current Indicator 244 kHz

    Details
  • DS80

    $10,495.00

    1 mHz, IMO Compliant Doppler Speed Log with Transducer and Flush Mounting Tank

    Details

NX700 and NX700P Brochure

For more information, including dimensions and product specifications, download the brochure.
