FELCOM18

MSRP: $4,995.00

Inmarsat-C Ship Earth Station terminal for GMDSS applications. Full GMDSS compliance with optional printer and AC/DC power supply.

Display Size10.4 inches

Display TypeColor LCD

Power Usage12-24 VDC

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FELCOM18

Inmarsat-C Mobile Earth Station terminal for GMDSS application

The FELCOM18 is FURUNO's new Inmarsat-C Mobile Earth Station. It provides a high quality two-way telex and data link between ships and other parties at sea or on land. All functions and services of the Inmarsat-C system are provided: EGC (Safety NET/FleetNET), distress message handling, two-way digital store-and-forward messaging including polling, data reporting, E-mail, etc. Distress alert are initiated by the remote distress alert unit. The distress message including own ship's position is easily edited. A PC can be used for editing the message via Ethernet when it is supplied with dedicated software.

Fully incorporated SSAS and LRIT capabilities

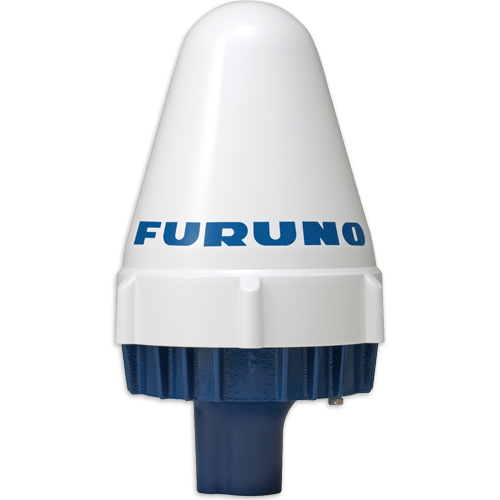

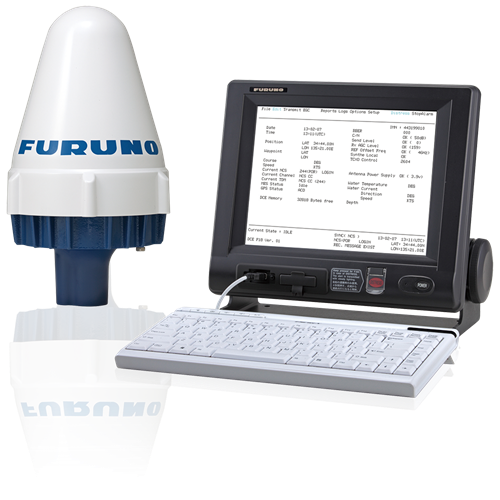

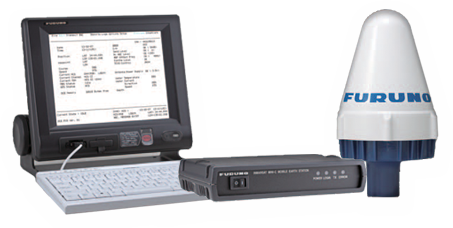

The FELCOM18 consists of an antenna and display unit with keyboard. The display unit embodies a 10.4" color LCD and processor unit. The distress alert button is incorporated in the display for emergency. Data files and utility program on SD Memory Cards are easily loaded into the processor through the front loading card slot in the display unit. The compact design of display unit and omni-directional antenna unit offer space-saving installation. An optional GPS module is available for position reporting without operator's intervention. GMDSS compliance can be achieved by adding a printer and a AC/DC power supply unit.

  • Product Consists Of
  • Cables
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

$2,585.00
ANT UNIT W/30M CBL FELCOM18*
$3,135.00
Terminal/Communications Unit, FELCOM18
$275.00

Junction Box FELCOM18/19

Cables

Cables

$13.00
TTYCSLA-1 ONE PAIR LOW SMOKE, PRICED PER METER
$25.00
TTYCSLA-4 FOUR PAIR LOW SMOKE
Call For Price
ANT CABLE 100M FELCOM18/19
$395.00
INST MATS 50M CBL FELCOM18
$950.00
ANT CBL ASSY 50M SC50 SC110*
$185.00
PRINTER CABLE ASSEMBLY 05S9486-1
$145.00

CBL ASSY .4M TNC PLUG FELCOM15

Miscellaneous Accessories

Miscellaneous Accessories

$1,195.00

PRINTER 24VDC GMDSS

$250.00
Distress Alert / Received Call Unit
$295.00
SSAS Alert Button (USA Version)
$295.00
SSAS Alert Button (International Version)
$590.00
SSAS MOD KIT FOR FELCOM18 USA*
$590.00
SSAS MOD KIT FOR FELCOM18 INT*
$2,340.00
ANT UNIT LESS ANT CBL FELCOM18
$550.00
ANTENNA BRACKET FELCOM18
$50.00
FLUSH MOUNT KIT FELCOM16
$975.00

Rectifier, AC to 24 VDC

$100.00

KEYBOARD FELCOM18 IB585 - GOTO 000-178-800-11

$450.00
GPS KIT OP16-62 FELCOM18
$420.00
INSTALLATION MATERIALS CP16-05521(40M/50M)
$40.00
BLANK 2GB SD MEMORY CARD *
$40.00
INST MANUAL FELCOM18
$50.00
OPERATOR MANUAL FELCOM18

Felcom18 and Felcom19 Brochure

For more information, including dimensions and product specifications, download the brochure.
