FAR1523

MSRP: $9,420.00

25kW Transmitter, 96 NM Black Box Radar System, less Antenna and Cable

Antenna Size4 ft or 6 ft

Antenna TypeOpen Array

BandX-Band

Display SizeBlack Box

Display TypeSupplied Separately

Power Usage24 VDC

Power Output25 kW

Range96 nm

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FAR1523

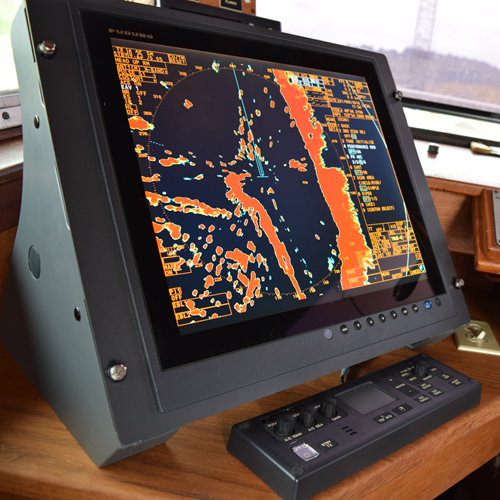

Excellent target detection and improved user interface!

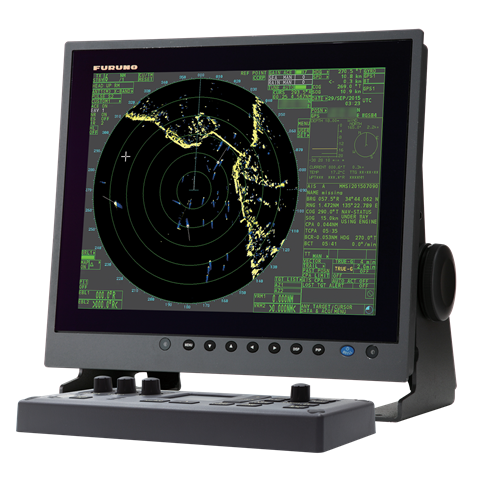

This new Radar has it all! Its compact and easy-to-use control unit includes individual knobs for gain/sea/rain clutter suppression, as well as a RotoKey and touch panel for simple, efficient operation. An optional trackball unit can also be connected.

Automatic Clutter Elimination (ACE) for unprecedented echo clarity

Quickly adjust the Radar image with the push of a single button. With ACE activated, the system automatically adjusts clutter reduction filters and gain control according to sea and weather conditions selected by the user (calm/ rough sea/hard rain).

Target Analyzer and Fast Target Tracking

The Target Analyzer function displays moving target, stationary targets, rain, sea surface and targets closing in on your vessel in different colors. You can immediately spot hazardous targets directly, simply by the color they are displayed in. Target Analyzer can increase safety as well as improve situational awareness.

After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessels course and speed is made easier.

  • Product Consists Of
  • Choose an Antenna Array
  • Cables
  • Marine Monitors
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

$3,690.00
PROCESSOR UNIT FOR FAR1523
$590.00

CONTROL UNIT

$6,695.00
ANT GEARBOX 25KW 24RPM FR8255

Choose an Antenna Array

Choose an Antenna Array

$1,275.00

Antenna, 4 Foot Open Array

$1,775.00

Antenna, 6 Foot Open Array

$320.00
Radar Antenna Cable for FAR1523, 10 Meter, RW00225
$340.00
Radar Antenna Cable for FAR1523, 15 Meter, RW00225
$520.00
Radar Antenna Cable for FAR1523, 20 Meter, RW00225
$670.00
Radar Antenna Cable for FAR1523, 30 Meter, RW00225

Cables

Cables

$225.00
CBL LAN FR-FTPC-CY 10M W/O CON*
$430.00
CBL LAN FR-FTPC-CY 20M W/O CON*
$470.00
CBL LAN FR-FTPC-CY 30M W/O CON*
$320.00
Radar Antenna Cable for FAR1523, 10 Meter, RW00225
$340.00
Radar Antenna Cable for FAR1523, 15 Meter, RW00225
$520.00
Radar Antenna Cable for FAR1523, 20 Meter, RW00225
$670.00
Radar Antenna Cable for FAR1523, 30 Meter, RW00225
$55.00
LAN CBL ASSY 2M RJ45XRJ45 4P
$65.00
LAN CBL ASSY 5M RJ45 X RJ45 4P
$100.00
LAN CBL ASSY 10M RJ45XRJ45 4P
$200.00
CBL ASSY 3COX-2P-6C 10M CSH5L
$135.00
RGB VIDEO CABLE 5M
$795.00
10M DVI-D/D 03S9658 CBL ASSY

Marine Monitors

Marine Monitors

$6,295.00

15" Color LCD Monitor w/o Bracket

$7,295.00

19" Color LCD Monitor without bracket

$4,495.00

19" Color LCD Monitor without bracket

$6,495.00

23.1" Color LCD Monitor w/o Bracket

Miscellaneous Accessories

Miscellaneous Accessories

$400.00
Trackball Control Unit, FMD3100
$675.00
Step-Down Transformer, 380/440VAC to 110VAC
$975.00

Rectifier, AC to 24 VDC

$1,075.00
Rectifier 110/220VAC to 24VDC, 7 Amps
$1,275.00
Rectifier, 110/220VAC to 24VDC, 16 Amps
$1,475.00

Rectifier, 110/220VAC to 24VDC, 20 Amps

$2,295.00

External Rectifier Unit with Automatic AC to Battery Switching

$595.00
Interswitch Hub
$5,140.00
NOT INTRODUCED YET
$495.00
Flush Mount Kit, front-mounting type for MU150HD
$535.00
HOOD ASSY MU150HD
$895.00
JUNCTION BOX RJB-002
$795.00
MTG BKT W/ KNOBS MU150HD

Recommended Additions

  • FA170

    $3,995.00

    Class A AIS Transponder w/ 4.3" Color LCD Display

    Details
  • SC70

    $5,295.00

    High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

    Details
  • FCV1150

    $5,195.00

    12.1 Inch Color LCD Sounder, Less Transducer

    Details
  • NAVPILOT 711C

    $2,995.00

    Self-Learning, Adaptive Autopilot - Single-Din Size Color Display

    Details
  • LH5000

    $1,095.00
    30 Watt Loudhailer with LCD
    Details

FAR15x3 Brochure

For more information, including dimensions and product specifications, download the brochure.
