FA50

MSRP: $1,300.00

Black Box Class B AIS Transponder

Display SizeBlack Box

Display TypeSupplied Separately

Power Usage12-24 VDC

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FA50

Accurate information exchange for collision avoidance

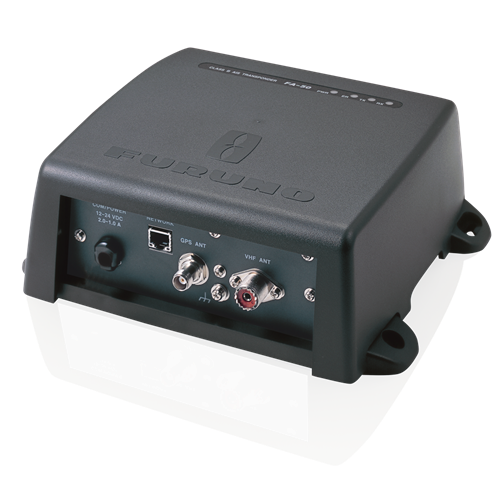

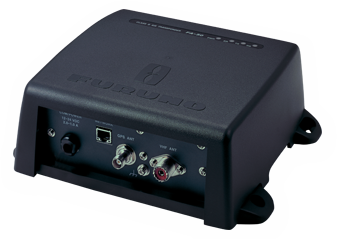

The Furuno FA50 is a Class B AIS (Automatic Identification System) capable of exchanging navigation and ship data between own ship and other ships or coastal stations. It complies with IMO MSC. 140(76) Annex 3, A.694, ITU-R M.1371-2 and DSC ITU-R M.825-3. It also complies with IEC 60945 (EMC and environmental conditions). The FA50 consists of a transponder unit with GPS antenna. A VHF antenna is required and should be supplied separately. The transponder contains a VHF transmitter, two TDMA receivers on two parallel VHF channels, interface, communication processor, and internal GPS receiver. The internal GPS is a 12-channel all-in-view receiver with differential capability. It also gives position, COG and SOG.

  • Cables
  • Miscellaneous Accessories
  • Related Products
  • Manuals

Cables

Cables

$50.00
2 Meter Lan Cable Assembly, RJ45
$95.00
10 Meter Lan Cable Assembly, RJ45
$70.00
1 Meter Cable, RJ-45 to 6 Pin
$145.00
10 Meter Cable, RJ-45 to 6 Pin
$185.00
20 Meter Cable, RJ-45 to 6 Pin
$220.00
30 Meter Cable, RJ-45 to 6 Pin
$85.00
Antenna Cable Assembly, 2 x TNC-P, 15 Meters
$650.00
ANT CBL ASSY 30M SC50 SC110*
$950.00
ANT CBL ASSY 50M SC50 SC110*
$80.00
PC Adaptor Cable (RJ45 to 6-Pin), 5-Meter Cross-Over
$650.00
Antenna Cable Assembly, 30 Meters, N-Type Connector (Male Plug) On One End
$50.00
Power / Data Cable Assembly

Miscellaneous Accessories

Miscellaneous Accessories

UAIS rated VHF Antenna is required option - use FAB-151D or purchase locally. If an aftermarket antenna is used, it must be capable of transmitting at 156.025 - 162.025 mHz.
$460.00

VHF WHIP ANTENNA

$195.00
Stainless Steel Antenna Mount, Angled
$395.00
Stainless Steel Antenna Mount, Handrail, 7/8" or 1" Tubing
$175.00
RIGHT ANGLE ANT MOUNT GPA017
$125.00
Stub Mast Mounting Kit
$100.00
ANTENNA FIXING BRKT CP05-14001
$195.00

Interface Converter NMEA200-NMEA0183

$1,670.00

The GVA100/DB1 is a GPS/VHF combination antenna with DB1 Junction Box. This product does not include the required VHF antenna. A UAIS rated VHF Antenna is a required option - use FAB-151D or purchase locally.

Note: If used GPA017S/S is not required. List Price Credit for GPA017S/S is $105.00

Related Products

Related Products

$495.00

AIS Interface Unit - FR8xx2

$1,670.00

The GVA100/DB1 is a GPS/VHF combination antenna with DB1 Junction Box. This product does not include the required VHF antenna. A UAIS rated VHF Antenna is a required option - use FAB-151D or purchase locally.

Note: If used GPA017S/S is not required. List Price Credit for GPA017S/S is $105.00

$975.00

Rectifier, AC to 24 VDC

Manuals

Manuals

$50.00
OPERATORS MANUAL FA50
