CSH5LMK2

MSRP: Call For Price

MUST ADD SONAR SHAFT AND MOTION SENSOR

Black Box Full-Circle Scanning Sonar, 55 kHz, less shaft and motion sensor

Display SizeBlack Box

Display TypeBlack Box

Frequency55 kHz

Power Usage100-115-120-220-230 VAC

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products CSH5LMK2

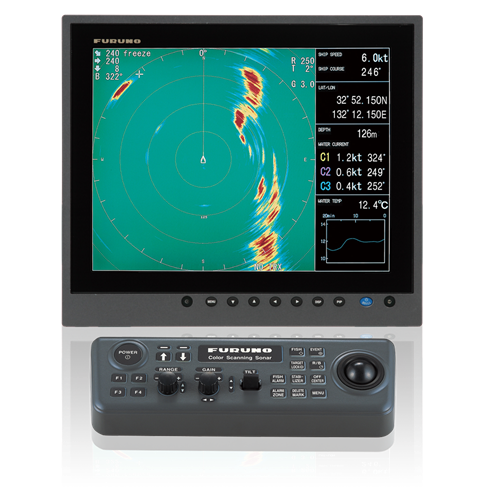

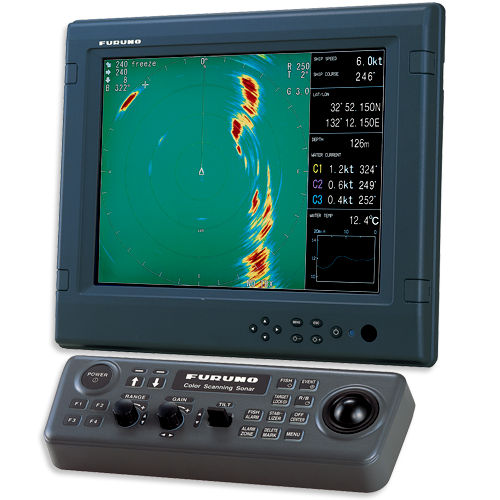

A compact, mid-frequency Sonar with revolutionary fish and seabed discrimination

The CSH5LMK2 is a full-circle scanning sonar that can rapidly detect schools, individual fish and changing underwater conditions around a vessel. Fish distribution and seabed conditions are displayed in 16 colors, 360 degrees around your vessel. The CSH5LMK2 is considered a mid-frequency sonar at 55 KHz. Its wider beam width coupled with its enhanced target identification capabilities make it ideal for searching deeper waters. Fish and bottom echoes are clearly separated and bait fish are more easily tracked. With automatic tilt scanning as a standard feature, the CSH5LMK2 is suitable for both midwater trawlers and purse seiners.

The Sonar’s compact keyboard and Black Box configuration helps make for a flexible installation. Other components consist of either a 400 or 600mm stroke hull unit, a transceiver unit, and a processor unit. A variety of monitors are available to suit your installation and operational requirements. FURUNO’s MU-series displays are specially designed to meet the requirements of marine professionals around the world. For a second station, an additional display and a small remote controller can be simply plugged into the processor unit.

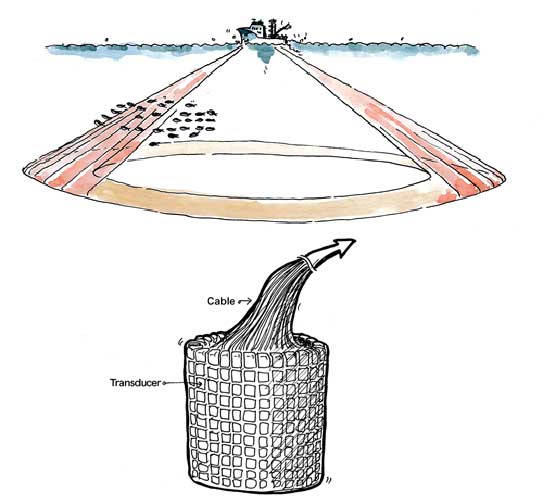

What is Scanning Sonar?

The transducer arrangement consists of layers of elements. Each element is pointed in a slightly different direction which allows the Sonar to transmit 360 degrees simultaneously without rotating the transducer. The targets are redrawn on the display instantaneously according to the latest echo received from the transducer. Because this sonar scans quickly, it greatly improves the fishing operation, especially when searching for or following fast swimming fish.

On a 1000ft range Sonar updates the display 360 degrees every 0.54 seconds, while the conventional PPI sonar takes 32 seconds to train full circle under the same range/conditions. For the same range, Scanning sonars are capable of providing information that is about 60 times more comprehensive than PPI sonars. Faster target updating lessens the chance of missing a small change in underwater conditions. This is especially helpful when range and tilt require frequent adjustment while fishing, offering no frustration on redrawing time.

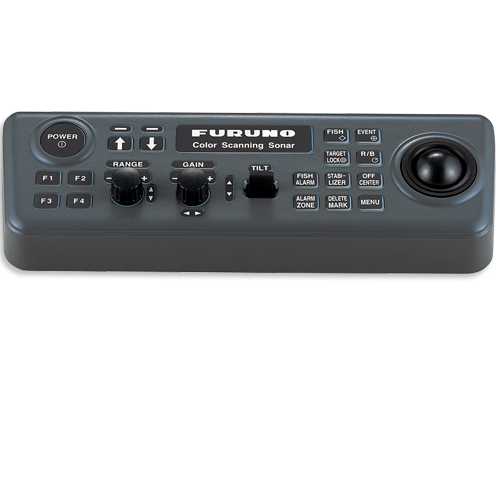

User-friendly, ergonomic controller

The control unit combines ergonomics and function in a user-friendly, comfortable configuration. All controls respond quickly to the operator’s command and the associated reaction can be seen on the screen immediately. Four user-defined functions can be assigned to Function keys (F1 to F4), providing for rapid setup and operation. An optional handheld remote controller allows for control of tilt, range and gain functions.

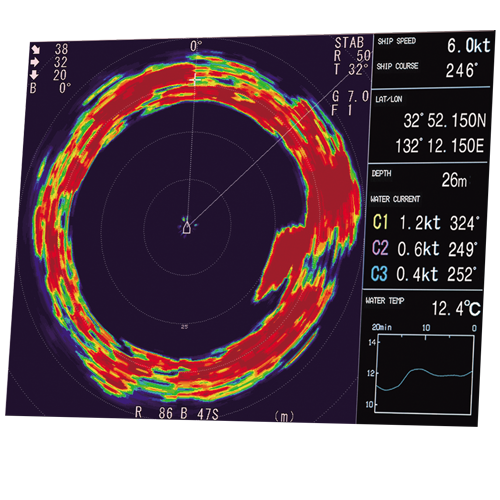

Traditional Sonar display

Navigation data can be displayed in the text window, with connection of appropriate sensors. The operator can place Event Marks on targets to better help tracking schools of fish or other objects of interest.

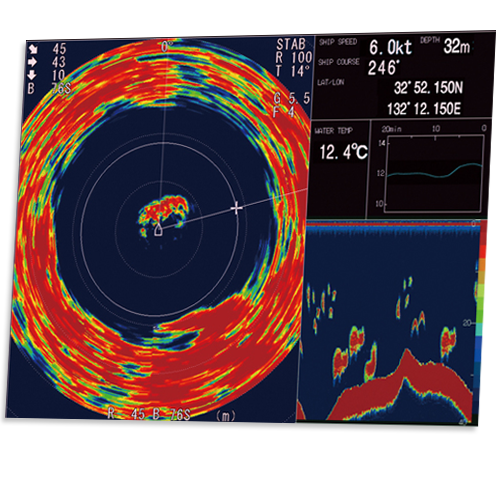

Sonar + Echo Sounder display

The Sonar picture appears on the left and the signal fed from the Echo Sounder at the lower right side of the screen. This mode is suitable for judging fish school concentration.

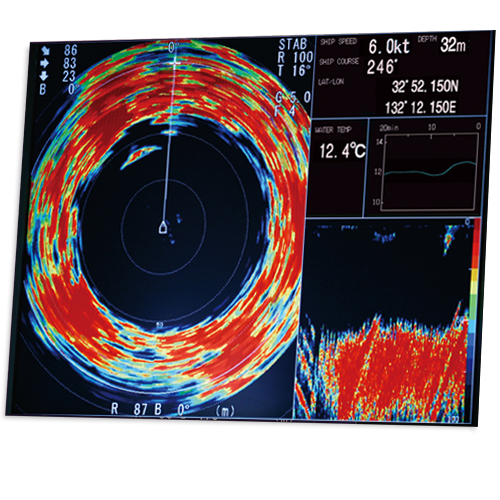

Sonar + Audio display

The Sonar picture appears on the left and the Audio display at the lower right side of the screen. This mode is useful for analyzing echoes in a desired area

  • Product Consists Of
  • Cables
  • Sonar Shafts And Hull Tubes
  • Marine Monitors
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

MUST ADD SONAR SHAFT AND MOTION SENSOR
$135.00
RGB VIDEO CABLE 5M
$1,195.00
Cable Assembly, Display/Processor to Transceiver (S10-6-30), 30 Meters
$2,350.00
CBL SET CP10-05301 5M CSH5LBB*
$4,650.00
HULL UNIT ASSY PARTS CSH5LBB*
$5,995.00
PREAMPLIFIER UNIT CSH5LMK2
$3,225.00
HOIST UNIT 600MM TRVL CSH5LMK2
Call For Price
TRANSCEIVER UNIT FOR CSH5LMK2
$7,495.00
PROC/CONT CSH5LMK2 CSH8LMK2
Call For Price
55kHz Soundome with 6500mm Cable

Cables

Cables

$170.00
Signal Cable Assembly, MS100 & BS704, 10 Meters
$225.00
Signal Cable Assembly, MS100 & BS704, 15 Meters
$275.00
Signal Cable Assembly, MS100 & BS704, 30 Meters
$375.00
Signal Cable Assembly, MS100 & BS704, 50 Meters
$200.00
CBL ASSY 3COX-2P-6C 10M CSH5L
$2,490.00

Rx Cable Assembly, Transceiver to Pre-Amplifier (Cable #2), 10 Meters

$3,210.00

Rx Cable Assembly, Transceiver to Pre-Amplifier (Cable #2), 15 Meters

$630.00

Cable Assembly, Transceiver to Pre-Amplifier (Cable #1), 10 Meters

$795.00

Cable Assembly, Transceiver to Pre-Amplifier (Cable #1), 15 Meters

$760.00
Cable Assembly, Display/Processor to Transceiver (S10-6-15), 15 Meters
$1,195.00
Cable Assembly, Display/Processor to Transceiver (S10-6-30), 30 Meters
$1,990.00
Cable Assembly, Display/Processor to Transceiver (S10-6-50), 50 Meters
$495.00

Cable Assembly, Transceiver to Pre-Amplifier (Cable #1), 5 Meters

$2,350.00
CBL SET CP10-05301 5M CSH5LBB*
$2,790.00
10M CBL CP10-05302 CSH5LMK2
$3,750.00
15M CBL CP10-05303 CSH5LMK2

Sonar Shafts And Hull Tubes

Sonar Shafts And Hull Tubes

MUST ADD SONAR SHAFT
$1,150.00
SHAFT 945MM CSH5L/8LMK2 3.1FT*
$2,950.00
2350mm Stainless Steel Soundome Shaft
$2,950.00
4065mm Stainless Steel Soundome Shaft
$1,700.00
Steel Hull Tube, 190mm ID x 1.0m L.O.A.
$1,950.00
Steel Hull Tube, 190mm ID x 1.8m L.O.A.
$4,350.00
Steel Hull Tube, 190mm ID x 3.5m L.O.A.
$6,000.00
Aluminum Hull Tube, 190mm ID x 1.0m L.O.A.
$2,200.00
FRP Hull Tube, 190mm ID x 1m L.O.A.
$2,400.00
FRP Hull Tube, 190mm ID x 1.8m L.O.A.

Marine Monitors

Marine Monitors

$5,295.00

15" Color LCD Monitor w/o Bracket

$6,195.00

19" Color LCD Monitor without bracket

$5,795.00
15" Color LCD Marine Monitor
$6,795.00
19" Color LCD Marine Monitor

Miscellaneous Accessories

Miscellaneous Accessories

$1,575.00

Motion Sensor with 10 Meter Cable Assembly

$1,510.00

Gyro Analog to Digital Converter, Digital Heading Repeater (External)

$650.00

Clinometer with 10 Meter Cable Assembly

$540.00
REMOTE CONTROL UNIT HH CSH5LBB
$4,600.00
Processor Unit
$4,595.00
DC to AC Power Inverter
$525.00
External Echosounder Interface Unit
$395.00
VIDEO INTERFACE VGA CSH8LMK2*
$115.00
SPEAKER/EXTERNAL TYPE SEM-21Q
$465.00
Waterproof Shaft-Top Attachment Set

Recommended Additions

  • MU150HD

    $5,295.00

    15" Color LCD Monitor w/o Bracket

    Details
  • MU190HD

    $6,195.00

    19" Color LCD Monitor without bracket

    Details
  • SC50

    $4,995.00

    4.5 Inch Monochrome LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.8 degree Heading Accuracy) (If used with NavNet TZtouch, IF-NMEA2K2 is required)

    Details
  • DS60

    Call For Price

    IMO Compliant 3-axis Doppler Sonar that outputs the required information for berthing

    Details
  • MU152HD

    $5,795.00
    15" Color LCD Marine Monitor
    Details
View All

CSH5LMK2 Brochure

For more information, including dimensions and product specifications, download the brochure.
