CH37/113

No Longer Available

MSRP: Call For Price

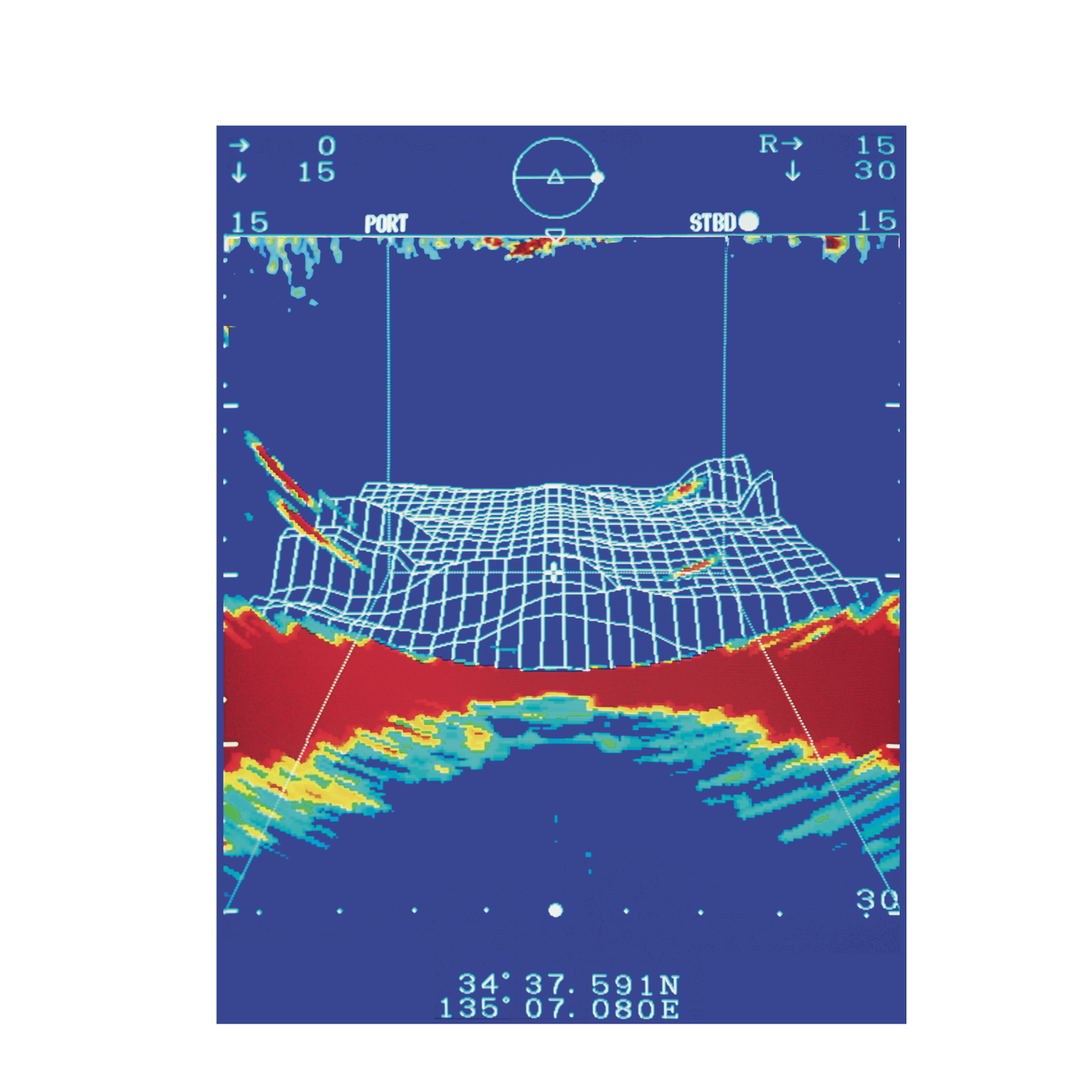

113 kHz Sector Scan Sonar System with 15 Inch Color CRT Display

Display Size15 inches

Display TypeColor CRT

Frequency113 kHz

Power Usage24 VDC

Power Output1.3 kW

Range6000 ft

Prices and Specifications Subject to Change Without Notice.

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products CH37--113
  • Product Consists Of
  • Cables
  • Sonar Shafts And Hull Tubes
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

BLSHAFT7
$600.00
7 Foot Stainless Steel Soundome Shaft. (2.2 Meters)
CH341/113
$7,275.00
113kHz Tranceiver
CH3421/113
$8,475.00
113kHz Hoist Unit with 400mm Shaft Travel
CH3422/113
$12,750.00

113kHz Soundome with 3.7 Meter Cable Assembly

CH370
$10,470.00

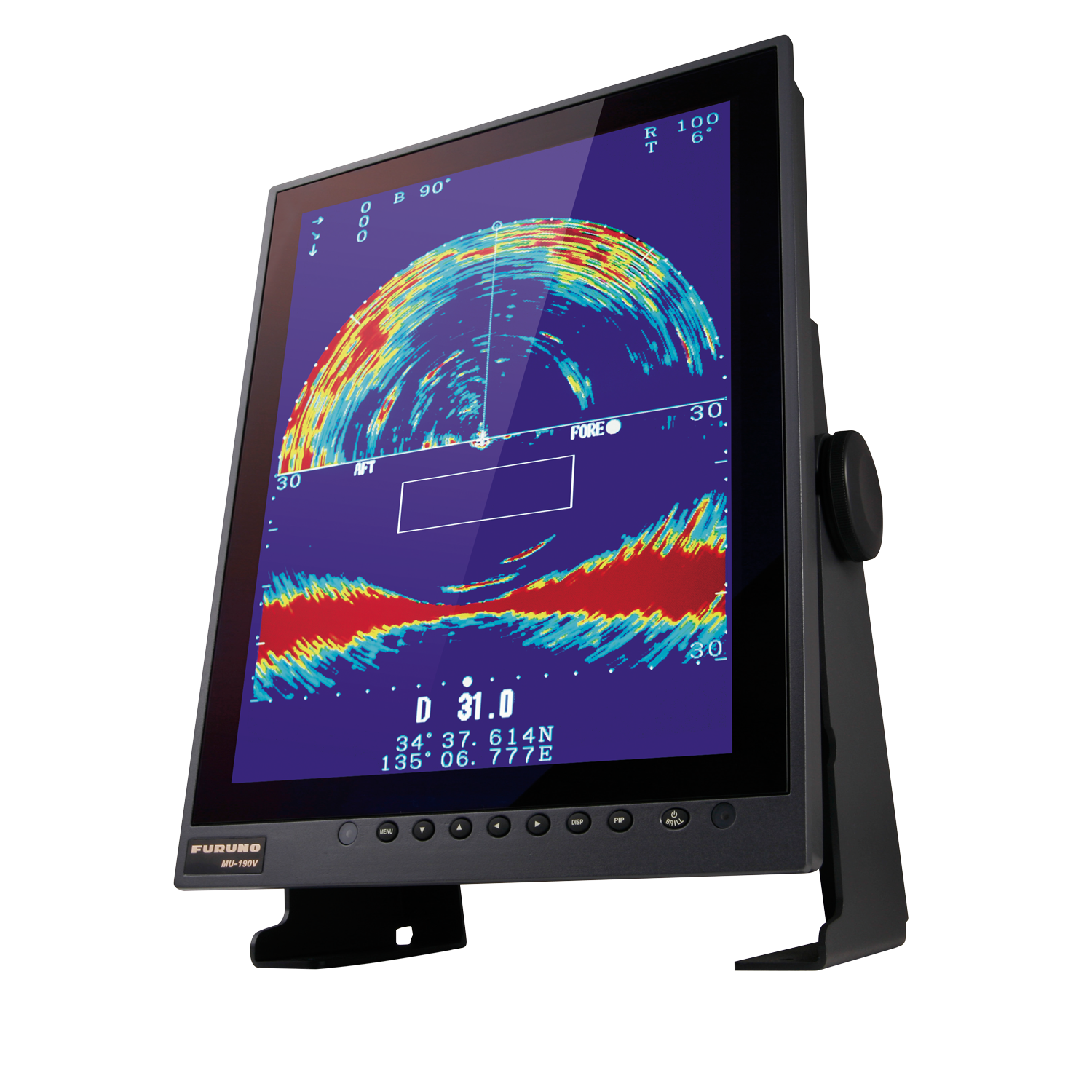

15 Inch Color CRT Display with Standard Accessories

CH37INST
$1,175.00
Standard Installation Materials with 15 Meter Signal Cable
CHINST/6
$1,275.00
Flange, Hull Unit Installation Material and Soundome Oil
MS100
$1,575.00

Motion Sensor with 10 Meter Cable Assembly

Cables

Cables

MS1-CBL-50M
$375.00
Signal Cable Assembly, MS100 & BS704, 50 Meters
000-141-035
$550.00
Cable Assembly, Display to Hull Unit, 30 Meters
000-141-034
$325.00
Cable Assembly, Display to Hull Unit, 15 Meters
000-141-036
$850.00
Cable Assembly, Display to Hull Unit, 50 Meters
MS1-CBL-30M
$275.00
Signal Cable Assembly, MS100 & BS704, 30 Meters
000-126-159
$600.00
Cable Assembly, Transceiver to Hull Unit, 5 Meters
MS1-CBL-15M
$225.00
Signal Cable Assembly, MS100 & BS704, 15 Meters
000-154-054
$55.00

NMEA Cable, 1 x 6 Pin Connector, 5 Meters

Sonar Shafts And Hull Tubes

Sonar Shafts And Hull Tubes

TUBE/S1901
$1,700.00
Steel Hull Tube, 190mm ID x 1.0m L.O.A.
BLSHAFT4
$390.00
4 Foot Stainless Steel Soundome Shaft. (1.1 Meters)
TUBE/F1901
$2,200.00
FRP Hull Tube, 190mm ID x 1m L.O.A.
BLSHAFT7
$600.00
7 Foot Stainless Steel Soundome Shaft. (2.2 Meters)
TUBE/F1918
$2,400.00
FRP Hull Tube, 190mm ID x 1.8m L.O.A.
BLSHAFT13
$1,200.00
13 Foot Stainless Steel Soundome Shaft. (3.8 Meters)
TUBE/A1901
$6,000.00
Aluminum Hull Tube, 190mm ID x 1.0m L.O.A.
TUBE/S1935
$4,350.00
Steel Hull Tube, 190mm ID x 3.5m L.O.A.
TUBE/S1918
$1,950.00
Steel Hull Tube, 190mm ID x 1.8m L.O.A.
BLSHAFT10
$990.00
10 Foot Stainless Steel Soundome Shaft. (3 Meters)

Miscellaneous Accessories

Miscellaneous Accessories

BFEG1500
$1,095.00
Color Sonar Target Simulator
BS704
$650.00

Clinometer with 10 Meter Cable Assembly

CH343
$495.00
Handheld Remote Control with 7 Meter Cable Assembly
CH3422/113L
$12,750.00
113kHz Soundome with 5.3 Meter Cable Assembly
RU1746B-2
$1,275.00
Rectifier, 110/220VAC to 24VDC, 16 Amps
VI1100A
$525.00
External Echosounder Interface Unit
000-068-455
$400.00
External Echosounder Interface PCB
000-136-156
$285.00
External Trumpet Speaker
000-506-703
$24.00
Power Connector Plug, 3-Pin(F)
000-824-033
$80.00
Sonar Soundome Oil, 4 Liters
001-532-970-00
$2,590.00
PCB 06P0190 TXA 113KHZ CH37
001-532-980-00
$2,650.00
PCB 06P0190C(LF) TXA
002-007-280
$185.00
Display, Viewing Hood Assembly
008-423-420
$95.00
Display, Side Handgrip Set (Two Piece Set)

Manuals

Manuals

OMS-130-30Z
$50.00
Operator's Manual in Spanish, CH37
IME-130-30Z
$40.00
Installation Manual, CH37
OME-130-30Z
$50.00
Operator's Manual, CH37
