CH300BBL/325

No Longer Available

MSRP: Call For Price

Black Box Searchlight Sonar, 60/153 kHz, 24 VDC, 250mm Hull Unit

Display SizeBlack Box

Display TypeSupplied Separately

Frequency60 and 153 kHz

Power Usage24 VDC

Power Output1 kW

Range4000 ft

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products CH300BBL--325

World's first dual frequency Sonar!

The FURUNO CH300, the worlds first dual-frequency searchlight sonar, is designed for a wide range of commercial or sport fishing vessels. Its operating frequency can be selected from either 60/153 or 85/215 kHz, and the transducers are incorporated in one soundome. The high frequency of 153 and 215 kHz gives a highly detailed search near and all around the vessel. The lower frequency, 60 and 85 kHz, enables long-range searches of over 500 m. With advantages of both high and low frequency, the CH300 helps to search on a rough seabed and to greatly enhance fish school detection.

Numerous, versatile presentation modes

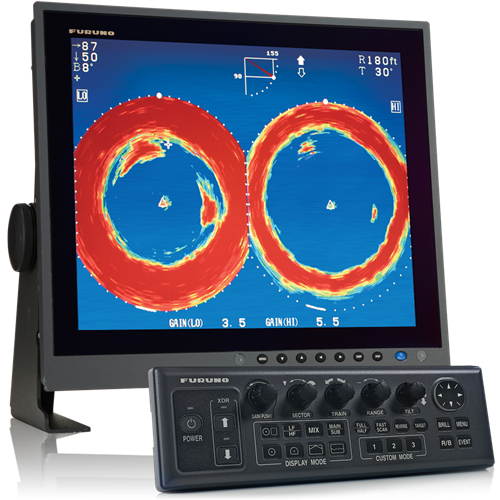

A variety of presentation modes are available: horizontal and vertical scan, echo sounder and the combination mode displaying horizontal and vertical scan/historical/plotter presentations. The combination of horizontal and vertical scan helps evaluate the distribution of fish schools in both the horizontal and vertical planes simultaneously.

The CH300’s unique mix mode operates on the principle that high frequency beams receive stronger echoes from smaller fish, compared with low frequency beams. By comparing the returned echo intensity of both frequencies, this mode picks out the echoes of small fish and displays them in discriminating colors. Other echoes are displayed in the weakest color. This helps to discriminate small fish, such as bait fish, from the rest of your catch.

Target Lock and Beam Stabilization

The CH300 provides two target lock modes to track a fish echo or a stationary position, such as a fish shelter or reef. Target Lock automatically tracks the chosen fish school. In position track, the beam is locked onto the L/L position specified by the target marker.

Using the ship's pitch and roll information, such as from a Satellite Compass, Motion Sensor or Clinometer, the Sonar beam is kept at the required tilt angle, even in rough seas.

Compact Hull Unit for space saving installation

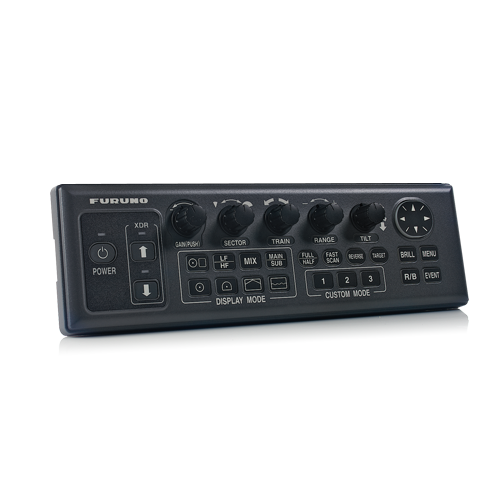

The Black Box configuration consists of a control unit, transceiver and compact hull unit. This separated system configuration provides a flexible and space saving installation where the operator may choose their own display. A standard configuration with 10.4" LCD monitor is also available. The hull unit, whose travel or stroke can be selected at either 250 mm or 400 mm, will fit any boat where a 190 mm (7.5") internal diameter hull tube is available. A previously installed CH250 can be changed to the CH300 without dry-docking since both models use the same size hull unit.

  • Product Consists Of
  • Cables
  • Sonar Shafts And Hull Tubes
  • Miscellaneous Accessories
  • Manuals

Product Consists Of

Product Consists Of

$600.00
7 Foot Stainless Steel Soundome Shaft. (2.2 Meters)
$1,510.00
Sonar Oil and Flange with Installation Materials
$2,295.00
CH302 CONT HEAD & IF8000 I/F
$4,460.00
XCVR 60/153K OR 85/215K CH300
$7,210.00
SOUNDOME 60/153K 5.2M CBL
$3,875.00
CH300 HOIST 60/153K 24V/250MM
$1,575.00

Motion Sensor with 10 Meter Cable Assembly

$465.00
15M CABLE 06S4080 CH250 CH300
$395.00
Cable Assembly, Processor to Display or IF8000, 5 Meters

Cables

Cables

$225.00
Signal Cable Assembly, MS100 & BS704, 15 Meters
$275.00
Signal Cable Assembly, MS100 & BS704, 30 Meters
$375.00
Signal Cable Assembly, MS100 & BS704, 50 Meters
$170.00
Signal Cable Assembly, MS100 & BS704, 10 Meters
$140.00
NMEA Cable, 2 x 6 Pin Connector, 5 Meters
$55.00

NMEA Cable, 1 x 6 Pin Connector, 5 Meters

$150.00
CBL ASSY MJ-A10SPF0002-0.15M
$160.00
Cable Assembly MJ-A10SPF0002 1.5M
$170.00
Signal Cable Assembly, Control Unit to Display or IF8000, 5 Meters
$555.00
CBL ASSY 06S4078 10M CH250
$695.00
30M CABLE 06S4080 CH250 CH300*
$1,195.00
50M CABLE 06S4080 CH250 CH300

Sonar Shafts And Hull Tubes

Sonar Shafts And Hull Tubes

$1,700.00
Steel Hull Tube, 190mm ID x 1.0m L.O.A.
$1,950.00
Steel Hull Tube, 190mm ID x 1.8m L.O.A.
$4,350.00
Steel Hull Tube, 190mm ID x 3.5m L.O.A.
$6,000.00
Aluminum Hull Tube, 190mm ID x 1.0m L.O.A.
$2,200.00
FRP Hull Tube, 190mm ID x 1m L.O.A.
$2,400.00
FRP Hull Tube, 190mm ID x 1.8m L.O.A.
$390.00
4 Foot Stainless Steel Soundome Shaft. (1.1 Meters)
$600.00
7 Foot Stainless Steel Soundome Shaft. (2.2 Meters)
$990.00
10 Foot Stainless Steel Soundome Shaft. (3 Meters)
$1,200.00
13 Foot Stainless Steel Soundome Shaft. (3.8 Meters)

Miscellaneous Accessories

Miscellaneous Accessories

$650.00

Clinometer with 10 Meter Cable Assembly

$950.00

MOD FLANGE 1" NPT HOLE/PLUG *

$60.00

SHAFT GUIDE SHIM SET CH250*

$330.00
Handheld Remote Control with 5 Meter Cable Assembly
$980.00
CONTROL HEAD CH300
$2,295.00
CH302 CONT HEAD & IF8000 I/F
$1,050.00

Black Box Interface Unit (Less Signal Cable Assembly)

$1,495.00

Black Box Interface Unit, Modified for Dual Display (Less Signal Cable Assembly)

$1,575.00

Motion Sensor with 10 Meter Cable Assembly

$1,275.00
Rectifier, 110/220VAC to 24VDC, 16 Amps
$125.00
Sonar Soundome Oil, 4 Liters
$370.00
SPEAKER SC-05WR 4 OHM CH250
$590.00
SHAFT GUIDE ASSY CH250 CH300*
$430.00
Table-top Mounting Kit for Control Unit (CV1202)
$110.00
Flush Mounting Kit for Control Unit
$55.00
Black Box Keyboard Snap-On Front Cover

Manuals

Manuals

$40.00
Installation Manual, CH300
$50.00
Operator's Manual, CH300
