DS60

MSRP: Call For Price

IMO Compliant 3-axis Doppler Sonar that outputs the required information for berthing

Display Size8.4 inches

Display TypeColor LCD

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products DS60

Real-time information for safe berthing and docking

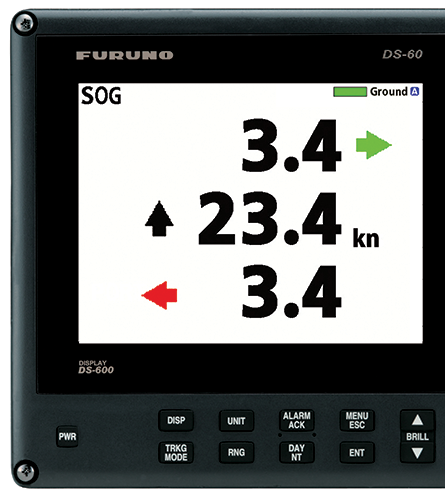

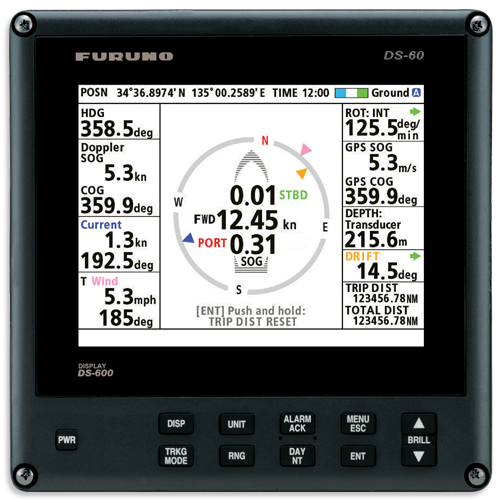

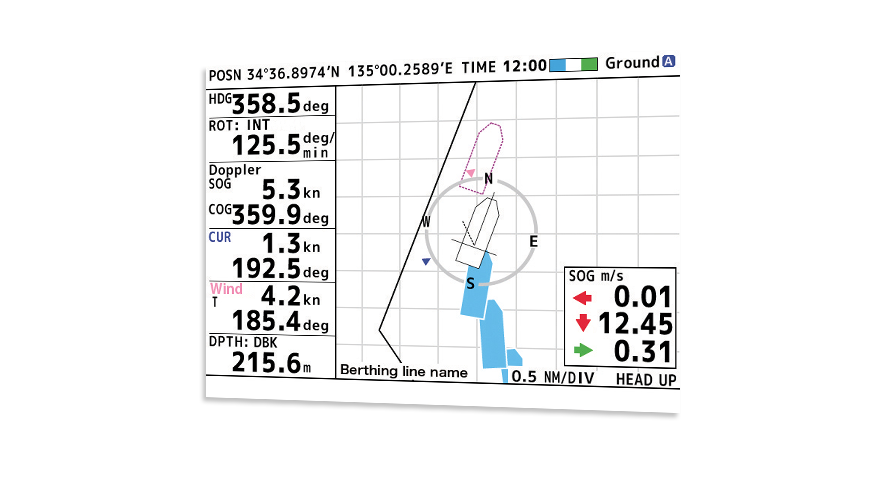

The DS60 is a precision, 3-axis Doppler Sonar designed to output the required information for berthing and docking operation of vessels. It complies with IMO MSC.36(63), MSC.96(72), A.694(17) and A.824(19), designed for the vessels of 50,000 GT and greater, such as container vessels, VLCC and other tankers. The 8.4-inch color LCD display shows information in both alphanumerics and graphics. It offers three display modes: 3-axis speed, berthing and NAV data. The modes can be switched with the optional remote controller. For wing installation, IP56 waterproof box for the display is available (optional supply).

Precision docking and safe navigation in narrow channels or straits

The DS-60 provides accurate information of ship's speed over a wide range. Speeds are detected relative to the ground or water for both fore-aft and port-starboard directions. The measurement capability at dead slow speed is vital for precise docking of huge tankers to oil loading/unloading facilities, as well as safe navigation in narrow channels or straits. Operation at high speed assists economical cruising in open seas.

Reduced size for simplified installation

While retaining the measurement accuracy of the DS30, the DS60 provides a greatly downsized transducer unit. This means that the time for installation and space required for installation will be reduced. The compact, high-frequency transducer measures ship's longitudinal (fore-aft) and transverse (port-starboard) speed, as well as water speed and direction under the hull.

The DS60 comes standard with the DS661 gate valve and tank. If a tank without gate valve is desired, the DS661 may be replaced with the DS660 tank without flange.

  • Product Consists Of
  • Cables
  • Related Products
  • Transducers
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

$2,525.00

DS60 Display unit without bracket

$6,670.00

Distribution Unit

$9,750.00

Transceiver Unit

$7,700.00

Transducer with 30 Meter Cable

Call For Price

Gate Valve and Tank

Cables

Cables

$9.00
TTYCSLA-1 ONE PAIR LOW SMOKE, PRICED PER METER
$40.00
4PR .75MM SHLD CBL 250V, priced per meter
$10.00
2PR.75MM DATA/DC CBL DS600, priced per meter

Related Products

Related Products

$2,525.00

DS60 Display unit without bracket

$1,150.00

Red LED Remote Display without Bracket

$2,095.00

8.4” Color LCD remote display that displays a wide variety of data

Transducers

Transducers

$7,700.00

Transducer with 30 Meter Cable

$8,500.00

Transducer with 40 Meter Cable

$9,300.00

Transducer with 50 Meter Cable

$10,100.00

Transducer with 60 Meter Cable

$6,350.00
XDCR W/O CBL UNDERWATER CONN
$9,250.00
Transducer with 30 Meter Cable, waterproof/underwater connector for in-water installation
$10,050.00
Transducer with 40 Meter Cable, waterproof/underwater connector for in-water installation
$10,850.00
Transducer with 50 Meter Cable, waterproof/underwater connector for in-water installation
$11,650.00
Transducer with 60 Meter Cable, waterproof/underwater connector for in-water installation

Miscellaneous Accessories

Miscellaneous Accessories

$2,890.00
Waterproof Display POD
$1,250.00
Junction Box
$13,380.00

Tank without Flange

$14,100.00

Tank with Flange

Call For Price

Gate Valve and Tank, Anticorrosive

$14,400.00
DS60 BALL VALVE DNV
$14,400.00
DS60 BALL VALVE ABS
$330.00
Remote Controller
$320.00
Dimmer Controller
$375.00
Mounting Bracket and Knobs
$32.00
CBL 0.6/1KV TPYC-4 FR2800
Call For Price
ANALOG INDICATOR FL-200S-1W

Recommended Additions

  • GS100

    $8,620.00

    Satellite Speed Log less antenna cable

    Details
  • FAR3220BB

    Call For Price
    FAR3000 Series Black Box Chart Radar with Performance Monitor, 25kw X-Band, 96 NM
    Details
  • FE800

    $5,795.00

    Color IMO Navigation Echo Sounder

    Details
  • FMD3200

    Call For Price

    Electronics Chart Display and Information System (ECDIS) w/19" Display

    Details

DS60 Brochure

For more information, including dimensions and product specifications, download the brochure.
