1815

MSRP: $2,495.00

4 kW Transmitter, 36 NM Radar System with 8.4" Color LCD display and 19" Radome

Antenna Size19 inches

Antenna TypeRadome

BandX-Band

Display Size8.4 inches

Display TypeColor LCD

Power Usage12-24 VDC

Range36 nm

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products 1815

Use Up To 3 Stations With One Dome

The multi-station configuration allows up to three RDP-157 (MODEL1815 displays) to be connected to a single antenna, via an ethernet hub, without the need to install individual antenna units on each display. This configuration provides a cost saving and dynamic setup for situations requiring the ability to monitor the Radar from different locations on the ship.

Affordable color radar with advanced features

The Furuno 1815 is a standalone Radar package that features an 8.4” color LCD screen and stylish, low-profile 4kW radome antenna. It is designed for a wide variety of vessels, including pleasure craft, workboats and small fishing boats that require an easy-to-use, true color Radar at an affordable price point.The unit allows you to select from several adjustable display colors to ensure that it can be viewed in a variety of conditions. The gimbal mount allows the display to swivel when desktop mounted, allowing the user to adjust the display angle for optimal viewing comfort. Overhead mounts are available for added flexibility or you can flush mount it with a simple 5” hole saw.

Automatic gain reduction ensures a sharp picture

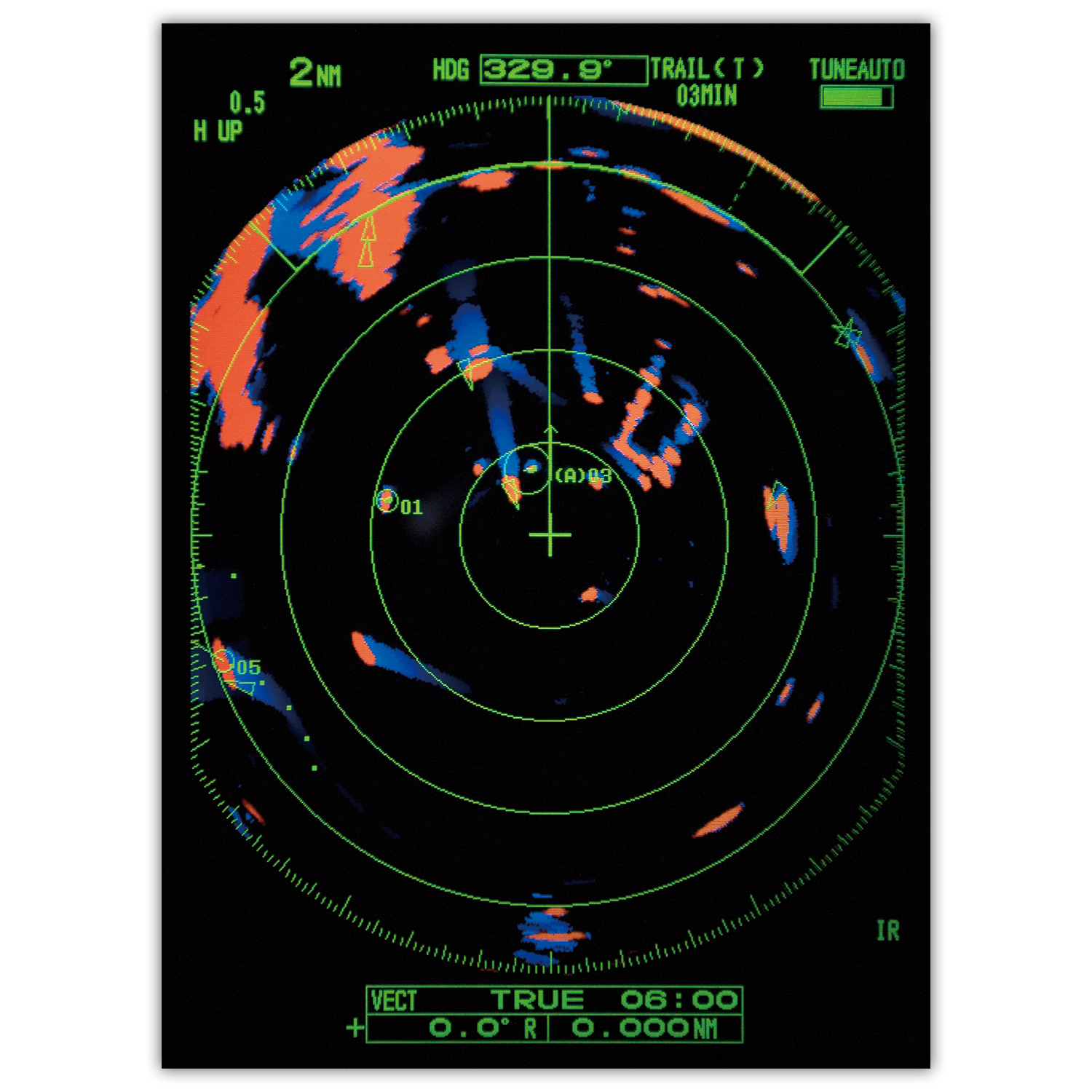

The automatic gain reduction on the 1815 makes use of algorithms that have been refined over many decades of Furuno experience and innovation. This means the 1815 is second to none in clutter rejection. With no input from the user, this Radar will automatically eliminate unnecessary echoes and present a clear display image with every sweep of its antenna. This ensures that you will be able to acquire other vessels, buoys and objects on the sea surface in good weather, or when sudden fog and storms make the visibility poor. Other display modes include Off Center, allowing own ship's position to be shifted to a pre-registered point on screen, and Zoom, which will expand and display a selected target up to 2x in a zoom window.

Fast Target Tracking and other new Furuno features

Furuno’s Fast Target Tracking (TT) function allows the user to manually or automatically track up to 10 targets. After selecting a target, it takes only seconds for a speed and course vector to be displayed, making quick work of determining the safety of approaching or moving targets. When using Furuno’s proprietary True Trail mode, moving objects will show a gradation of target trails in their wake, making it possible to gauge the movement of targets at-a-glance. When connected to a Furuno AIS, up to 100 targets can be tracked and displayed on the screen, allowing the operator to instantly gather important information about other AIS-equipped vessels nearby.

The 1815 also utilizes Furuno’s True View mode to make reading the display more intuitive. For example, when your vessel is turning, the echoes stay consistent on the display, so you can constantly see the targets on the screen, without waiting for them to update after the turn. This mode proves to be especially useful when you are turning to avoid hazardous targets.

  • Product Consists Of
  • Cables
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

$1,335.00
1815 DISPLAY UNIT
$2,095.00
DOME ANT UNIT 4KW 1815 *
$150.00
SIGNAL CABLE 10M 1815

Cables

Cables

$150.00
SIGNAL CABLE 10M 1815
$225.00
SIGNAL CABLE 15M 1815
$295.00
SIGNAL CABLE 20M 1815
$450.00
SIGNAL CABLE 30M 1815
$95.00
POWER/DATA CABLE 1815
$108.00
SIGNAL CABLE 5M 1815

Miscellaneous Accessories

Miscellaneous Accessories

$1,335.00
1815 DISPLAY UNIT
$2,095.00
DOME ANT UNIT 4KW 1815 *
$85.00

Swivel Mounting Display Bracket

$110.00
FLUSH MOUNT KIT 1815 OP03-242
$1,980.00
TRANSCEIVER UNIT RTR-120
$15.00
Knob for Display Bracket FCV585 and FCV620
$2.50
KNOB B FOR MODE FCV585/587
$12.00
BRACKET COVER FCV585
$27.00
HARD COVER FCV585
$20.00
FLUSH MOUNTING GASKET FCV585
$15.00
LCD CLEANING CLOTH
$55.00

Overhead Display Mount for FCV585, FCV587, FCV588, FCV620, FCV627, FCV628

$320.00

Interface Converter NMEA2000-NMEA0183

$230.00
ASSY/RADOME UPPER DRS2D

Recommended Additions

  • NAVPILOT 711C

    $2,895.00

    Self-Learning, Adaptive Autopilot - Single-Din Size Color Display

    Details
  • GP33

    $745.00

    GPS/WAAS Navigator with 4.3" Color LCD, w/6M NMEA2000 Cable

    Details
  • FA50

    $1,300.00

    Black Box Class B AIS Transponder

    Details
  • LH5000

    $995.00
    30 Watt Loudhailer with LCD
    Details

1815 Brochure

For more information, including dimensions and product specifications, download the brochure.
