FMD3100

MSRP: $5,995.00

Electronic Chart Display and Information System (ECDIS) w/ 24" LCD Display

Chart TypeRaster or Vector or C-Map Professional Plus

Display Size24 inches

Display TypeColor LCD

Power Usage115 or 230 VAC or 12-24 VDC

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FMD3100

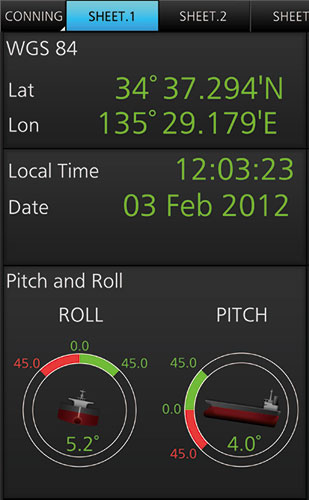

Direct connect sensors

Navigation sensors can be directly interfaced with the ECDIS processor’s 4 serial I/O ports. In order to integrate onboard sensors into the navigation network, the sensor adapter may be interfaced with the switching hub HUB3000, from which distribution of the sensor data throughout the network is possible. Alternatively, multiple sensor adapters may be interfaced via Ethernet to integrate onboard sensors for use in the shipboard network. The FMD3100 can interface with existing FAR21x7/FAR28x7 series Radar for Radar overlay, target track info, route and waypoint exchange via Ethernet.

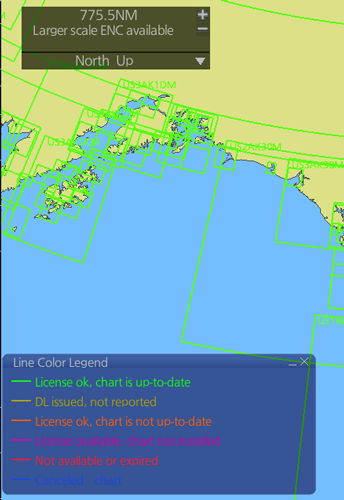

FMD3200 Chart Engine

Cutting-edge chart engine and intuitive controls

The FMD3100 utilizes cutting edge chart-drawing engine that delivers instantaneous chart redraw with seamless zooming and panning, making operation stress-free. Moreover, its operation philosophy is based upon the same familiar logic as the control scheme of a PC mouse, and all operations can be controlled with the use of trackball of the control unit by means of left-clicking, right-clicking and using a thumbwheel. A full QWERTY style keyboard is available in the ECDIS control unit for easy route, event and waypoint naming.

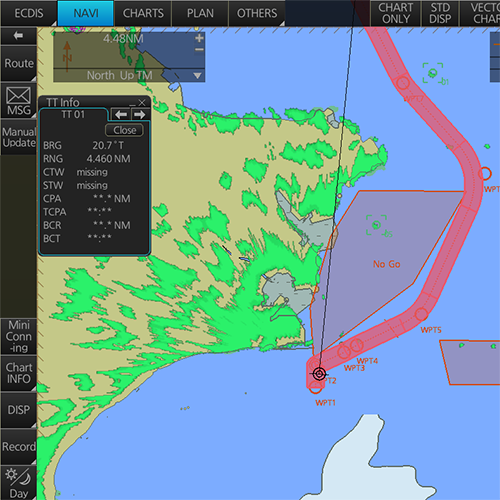

FMD3200 Status Bar

Simplified operation with the Status Bar and InstantAccess Bar

The FMD3100 provides the operator with quick access to the tasks and functions to be performed in the midst of vessel operation. This new ECDIS employs two new, intelligently arranged Graphic User Interface elements: Status Bar and InstantAccess Bar, that deliver task-based operation scheme to give the operator direct access to necessary operational procedure. The Status Bar at the top of the screen provides operating status, including modes of operation and presentation. The InstantAccess Bar on the left edge of the screen provides quick access to functions available in each of the ECDIS operating modes. The contents of the InstantAccess Bar change according to the operating modes selected on the Status Bar. This combination of the Status Bar and InstantAccess Bar covers virtually the entire operation, providing the operator with quick and easy access to the tasks to be performed. Subsequently, the need for delving into intricate menu trees to reach necessary tasks has become a thing of the past. The FMD3100 has streamlined the navigation monitoring procedure, reducing the risk of confusion and erroneous operation as well as enhancing situation awareness.

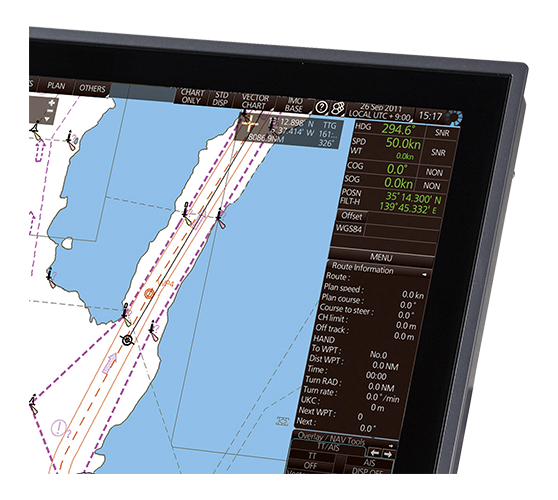

FMD3200 Chart Management Left

Fast, intuitive route planning and navigation monitoring

The FMD3100 delivers great enhancement in terms of user interface as well as functionality. Fully complying with the performance standard of ECDIS stipulated in IMO resolution MSC.232(82), the FMD3100 is a suitable candidate designated for new installation as well as retrofit to fulfill ECDIS mandatory carriage that is phasing in from July 2012 onward. The new FMD3100 ECDIS delivers a streamlined chart management scheme providing easy chart management independent of the chart providers. The FMD3100 is compatible with Jeppesen Dynamic Licensing and it supports the Admiralty Information Overlay (AIO). What is more, its network expandability fully satisfies provisos for paperless operation of vessels.

  • Cables
  • Miscellaneous Accessories

Cables

Cables

$295.00
CABLE 5M MJ-A10SPF0020A
$375.00
CABLE 10M MJ-A10SPF0020A
$550.00
CABLE 20M MJ-A10SPF0020A
$650.00
CABLE 30M MJ-A10SPF0020A
$25.00
CABLE ASSY MC1.5-W-L600
$35.00
CABLE ASSY MC1.5-W-L1000
$65.00
CABLE ASSY MC1.5-W-L2000
$85.00
CABLE ASSY MC1.5-W-L3000
$150.00
DVI-D/D S-LINK 5M CABLE ASSY
$210.00
CABLE 10M CP24-02900 FMD3100
$475.00
CABLE 20M CP24-02910 FMD3100
$575.00
CABLE 30M CP24-02920 FMD3100

Miscellaneous Accessories

Miscellaneous Accessories

$255.00
E TOKEN PRO 72K FMD3100
$140.00
CABLE CLAMP PCU3000
$1,295.00
CRIMPING TOOL FMD3100
$110.00
FLUSH MOUNT KIT RCU030
$135.00
KEYBOARD PCU3000
$650.00
HOOD PCU3000
$15.00
CASE GASKET MC3020D/3030D
$15.00
CASE GASKET MC3000S
$825.00
MOUNTING BRACKET FMD3100 MU240T
$2,975.00
RADAR CONNECTION BOX FOR ECDIS
$0.00
ECDIS CPU TRAINING DVD CBT*
$300.00
ECDIS CPU TRAINING LICENSE CBT*

Recommended Additions

  • FAR2127BB

    Call For Price

    25 kW Transmitter, 96 NM Black Box Radar System, less Antenna

    Details
  • FAR3220BB

    Call For Price
    FAR3000 Series Black Box Chart Radar with Performance Monitor, 25kw X-Band, 96 NM
    Details
  • FA170

    $3,995.00

    Class A AIS Transponder w/ 4.3" Color LCD Display

    Details
  • BR500

    $1,695.00

    Bridge Navigational Watch Alarm System

    Details

FMD3100 Brochure

For more information, including dimensions and product specifications, download the brochure.
