FAR1518

MSRP: $10,125.00

12 kW Transmitter, 96 NM Black Box Radar System, less Antenna and Cable

Antenna Size4 ft or 6.5 ft

Antenna TypeOpen Array

BandX-Band

Display SizeSupplied Separately

Display TypeSupplied Separately

Power Usage100-115 VAC or 220-230 VAC

Power Output12 kW

Range96 nm

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FAR1518

Excellent target detection and improved user interface!

This new Radar has it all! Its compact and easy-to-use control unit includes individual knobs for gain/sea/rain clutter suppression, as well as a RotoKey and touch panel for simple, efficient operation. An optional trackball unit can also be connected.

Automatic Clutter Elimination (ACE) for unprecedented echo clarity

Quickly adjust the Radar image with the push of a single button. With ACE activated, the system automatically adjusts clutter reduction filters and gain control according to sea and weather conditions selected by the user (calm/ rough sea/hard rain).

Target Analyzer and Fast Target Tracking

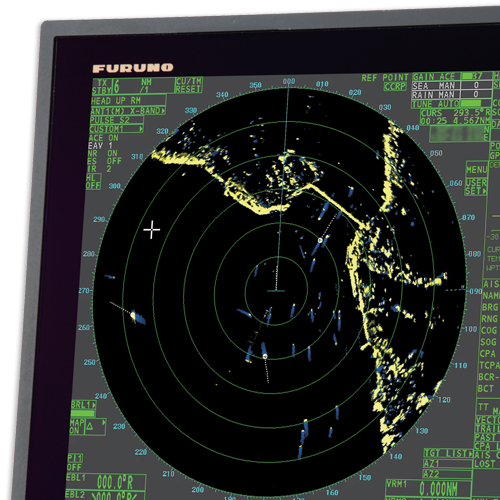

The Target Analyzer function displays moving target, stationary targets, rain, sea surface and targets closing in on your vessel in different colors. You can immediately spot hazardous targets directly, simply by the color they are displayed in. Target Analyzer can increase safety as well as improve situational awareness.

After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessels course and speed is made easier.

  • Product Consists Of
  • Choose an Antenna Array
  • Cables
  • Marine Monitors
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

$4,350.00
PROCESSOR UNIT FOR FAR1518 AC
$730.00

CONTROL UNIT

$5,045.00
ANT GEARBOX 12KW 26RPM FAR1518

Choose an Antenna Array

Choose an Antenna Array

$2,440.00

Antenna, 4 Foot Open Array

$2,950.00

Antenna, 6.5 Foot Open Array

$3,950.00

Antenna, 8 Foot Open Array

Cables

Cables

$55.00
LAN CBL ASSY 2M RJ45XRJ45 4P
$65.00
LAN CBL ASSY 5M RJ45 X RJ45 4P
$100.00
LAN CBL ASSY 10M RJ45XRJ45 4P
$150.00
LAN CABLE 10M FR-FTPC-CY DRU'S
$430.00
CBL LAN FR-FTPC-CY 20M W/O CON*
$250.00

LAN CABLE 20M FR-FTPC-CY DRU'S

$400.00
LAN CABLE 30M FR-FTPC-CY DRU'S
$750.00
RW0030 29 CORE CBL 15M FAR1518
$990.00
RW0030 29 CORE CBL 20M FAR1518
$1,510.00
RW0030 29 CORE CBL 30M FAR1518
$795.00
10M DVI-D/D 03S9658 CBL ASSY
$200.00
CBL ASSY 3COX-2P-6C 10M CSH5L
$135.00
RGB VIDEO CABLE 5M

Marine Monitors

Marine Monitors

$2,395.00
15" Marine Display
$5,295.00

15" Color LCD Monitor w/o Bracket

Note: The MU150HD Marine Monitor meets SOLAS carriage requirements for CAT3 vessels <500GT

$6,195.00

19" Color LCD Monitor without bracket

$4,495.00

19" Color LCD Monitor without bracket

Note: The MU190 Marine Monitor meets carriage requirements for CAT2 vessels from 500-10000GT.

$7,290.00

23.1" Color LCD Monitor w/o Bracket

$5,795.00
15" Color LCD Marine Monitor
$6,795.00
19" Color LCD Marine Monitor

Miscellaneous Accessories

Miscellaneous Accessories

$930.00
PERFORMANCE MONITOR FAR15X8
$630.00
HOOD ASSY MU150HD
$291.00
Flush Mount Kit OP26-36 MU152
$860.00
Step-Down Transformer, 380/440VAC to 110VAC
$1,010.00
JUNCTION BOX RJB-002
$810.00
Interswitch Hub
$795.00
MTG BKT W/ KNOBS MU150HD
$520.00
Trackball Control Unit, FMD3100
$2.00
BLIND SEAL FAR15X3 FAR15X8
$50.00
OP MANUAL FAR1518
$50.00

Guide for FAR15x3/15x8/BB

Recommended Additions

  • FA170

    $3,795.00

    Class A AIS Transponder w/ 4.3" Color LCD Display

    Details
  • SC70

    $4,995.00

    High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

    Details
  • NAVPILOT 711C

    $2,895.00

    Self-Learning, Adaptive Autopilot - Single-Din Size Color Display

    Details
  • FCV1150

    $4,895.00

    12.1 Inch Color LCD Sounder, Less Transducer

    Details
  • LH5000

    $995.00
    30 Watt Loudhailer with LCD
    Details

FAR15x8 Brochure

For more information, including dimensions and product specifications, download the brochure.
