FCV38

MSRP: Call For Price

Black Box Sounder, Less Transducer

Display SizeBlack Box

Display TypeBlack Box

Frequency38 kHz

Power Output4 kW

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FCV38

High power Fish Finder displays multiple frequencies simultaneously

The FCV38 features a unique multi-directional split-beam transducer, providing information on the location of target fish in five directions relative to the vessel. Operating at a low 38 kHz native frequency and with a power output of 4 kW, the FCV38 penetrates the deepest water, clearly showing fish targets down to 700m and seabed down to over 1,5000m. When connected to an external Furuno Network Fish Finder, such as the high-power DFF3, the FCV38 allows for the viewing of up to three separate echo images from multiple frequencies simultaneously, allowing you to utilize the perfect combination of frequencies for the best possible view of seafloor, structure, and fish targets.

New, innovative tools for fishermen

The FCV38 introduces new, innovative features such as the target location graph, allowing the operator to track fish targets easily. Furuno's exclusive Stabilizer Technology, built into the RX and TX beams independently, allows the FCV38 to stabilize the display against the effects of pitching and rolling, ensuring the echo image and fish size measurement are accurate. When connected to a Satellite Compass™, the effects of ship's heave on displayed echoes can also be eliminated. Net sensor information can be displayed for trawlers when connected to compatible equipment, such as the popular Marport TE-155 and Imaginex TS-337A systems. The FCV38 can also output scientific and calibration data in netCDF4 format, allowing for the contribution and review of detailed fish stock assessment information.

The Furuno features that fishermen love

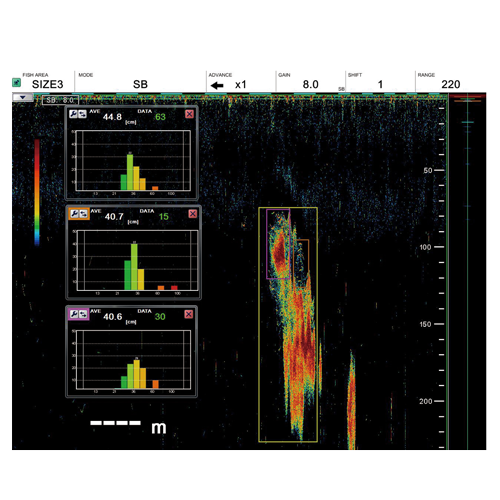

The FCV38 includes many of the Furuno features fishermen have come to rely on. A hardness and roughness graph allows for the determination of seafloor composition, and the improved ACCU-FISH function displays up to three independent, accurate fish size estimation graphs using calculations from a newly updated algorithm. Past echoes displayed on the screen can be scrolled back, allowing you to review a history of received echoes. Changes made to the gain function are instantly applied to the entire screen, so the operator can dial in the perfect gain setting as conditions change. Recordings can be saved to an external device for later review of the data, and a simple screen grab function is also available for instant capture and preservation of important information.

Powerful features that are easy to use

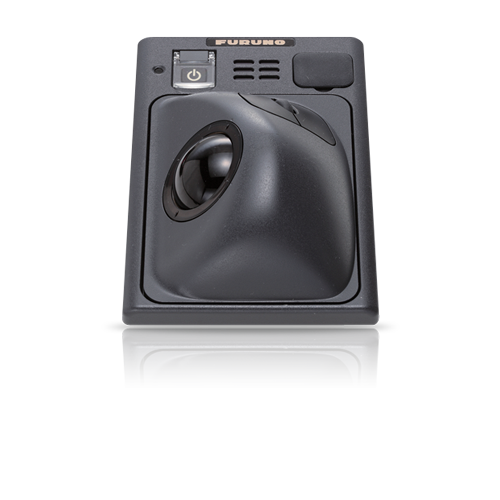

The FCV38 can be operated by its simple, ergonomic trackball. Range, Shift, Sensitivity, Image Feed, and Display Mode menus can all be accessed quickly and easily. The InstantAccess bar™ provides access to the most commonly used functions immediately, eliminating the need to navigate through cumbersome menus. Separate processor and transceiver units make installation aboard large vessels a breeze. The FCV38 is compliant with RoHS10 standards.
