DRS25AX/4

MSRP: $7,470.00

25kW, 96 n.m., UHD Digital Radar with 4' antenna

Antenna Size4 ft

Antenna TypeOpen Array

BandX-Band

Beam Width1.9 degrees

Power Usage24 VDC

Power Output25 kW

Range96 nm

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products DRS25AX--4

X-Class = a whole new class of Radar!

Pushing the boundaries of what is possible with conventional Radar technology, X-Class Radar marks yet another leap forward for FURUNO. Improved in almost all aspects, X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

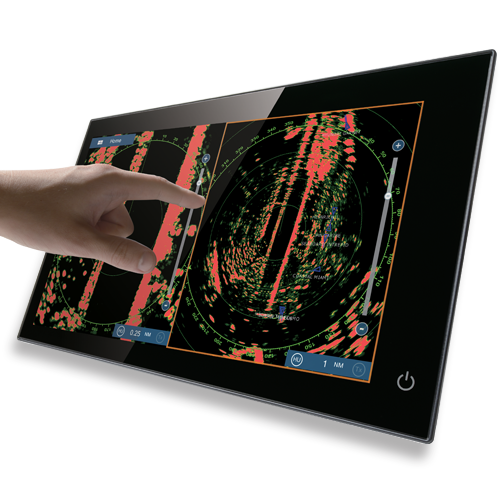

X-Class Radars are compatible with NavNet TZtouch, TZtouch2, TZtouch3, TZtouchXL, and the FR10/FR12 Radar Series.

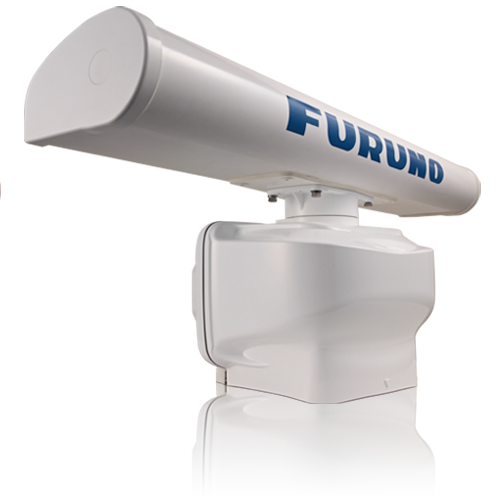

Lower noise and lighter gearbox

The newly redesigned pedestal unit is 20% lighter than previous models, and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking

Fast Target Tracking™, a function adopted from our commercial Radar FAR3000, is available on the X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Spot flocks of birds from far away

Bird echoes can be distinctly and automatically separated from nearby vessels. While a vessel in motion shows a straight and clear echo trail, bird echoes are identifiable by their random motion. With Bird Mode activated, bird echoes are distinct and clear, and can easily be distinguished from other targets. With Echo Trails on, it is even possible to discern the movements of individual birds!

  • Product Consists Of
  • Cables
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

$6,195.00

25kW, 96 n.m., UHD Digital Radar, less 3.5', 4’ or 6’ antenna and cable

$1,095.00

Antenna, 4 Foot Open Array

$180.00
DRS AX and NXT Signal/Power Cable, 15 Meter

Cables

Cables

$55.00
DRS Signal/Power Cable, 0.5 Meter
$140.00
DRS AX and NXT Signal/Power Cable, 10 Meter
$180.00
DRS AX and NXT Signal/Power Cable, 15 Meter
$230.00
DRS AX and NXT Signal/Power Cable, 20 Meter
$350.00
DRS AX and NXT Signal/Power Cable, 30 Meter
$140.00
5M SIGNAL POWER CBL DRS

Miscellaneous Accessories

Miscellaneous Accessories

$800.00
DC CONVERTER 12V-24V 16 AMPS
$1,395.00
MG5436 25kW FAR1528/2127/3220
$15.00
10 Amp Blade Fuse for DRS25AX
$670.00
MOTOR DJ8G-23B48HA
$370.00
ANTENNA TURNING GEAR HI-SPEED
