SCX21

MSRP: $1,395.00

Compact Dome Satellite Compass™ (1.0 Heading Accuracy), NMEA0183® Certified

Data TypeNMEA0183

Display TypeSupplied Separately

Power Usage12-24 VDC

Receiver TypeGLONASS or GPS or Galileo or QZSS or SBAS

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products SCX21

Revolutionary Baseline Architecture

Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX20 and SCX21 set a new standard for reliable and accurate heading for all of your marine electronics. Traditionally, a Satellite Compass™ calculates heading using one baseline between two antennas; the SCX20/21’s four antennas can calculate heading information using any one of the six baselines drawn between the four antennas.

The unprecedented quad-antenna design of the SCX20 and SCX21 makes them capable of calculating extremely accurate heading, pitch, roll, and heave information. They are the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.

Experience superior accuracy

The SCX20 and SCX21 enhance the performance of on-board equipment such as Radar, Fish Finders, Sonar, and Autopilots. Accurate heading information empowers your NavPilot to keep a better course, saving time, fuel, and money on every voyage; meanwhile, precise pitch, roll, and heave information stabilizes the display for many Furuno Fish Finders and Sonars, allowing for an accurate presentation even in the roughest of seas.

Distribute Precision Data with 3X NMEA0183 Programmable Output Ports

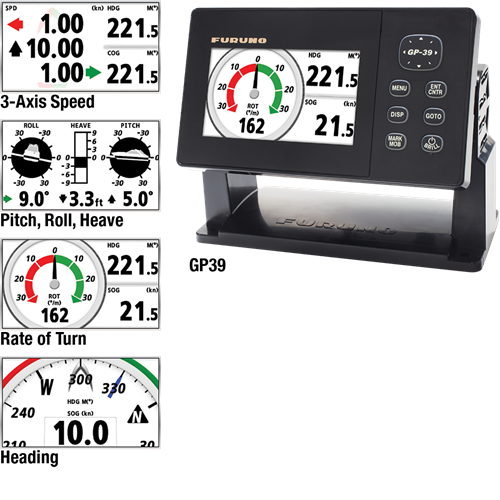

Directly connect any Furuno or compatible NMEA0183 equipment to distribute high speed and accurate heading, position, speed, roll, pitch and heave as well as air temperature and barometric pressure. Connect a Furuno GP39 Display to control and configure the flexible SCX21 Output ports. Select 4800 low speed/38400 high speed data and enable, disable, or control the repetition interval of the individual strings of the individual output ports.

Radar echo trail zig-zag domination!

When connected to Furuno SCX20/21, the Radar’s echo trails hold steady and clearly depict an accurate echo trail thanks to the SCX20/21’s amazing accuracy. Company A’s satellite compass fails to uphold a steady heading, making echo trails virtually unintelligible. Company B’s heading accuracy fluctuates by +/- 3˚ with a slower update, causing an echo trail that has a wide zig-zag pattern. Company C’s heading accuracy fluctuates by +/- 5˚ with a faster update, causing an echo trail that is indistinguishable and confusing.

SCX20/SCX21 First Look

Take a First Look at the SCX20/SCX21 Satellite Compass

  • Miscellaneous Accessories

Miscellaneous Accessories

Miscellaneous Accessories

$270.00
L-ANGLE MNT BASE NO.13-QA310*
$140.00
CABLE FRU-CF-F30M SCX21 15M
$250.00
CABLE FRU-CF-F30M SCX21 30M
$180.00
POLE MNT CP20-04603 SCX20/21
$280.00
MAST FIXING MTRL CP20-04605
$120.00

RS-422 TO USB CONVERTER 1M CBL*

SCX20/21 Brochure

For more information, including dimensions and product specifications, download the brochure.
