FAR1416

MSRP: $11,620.00

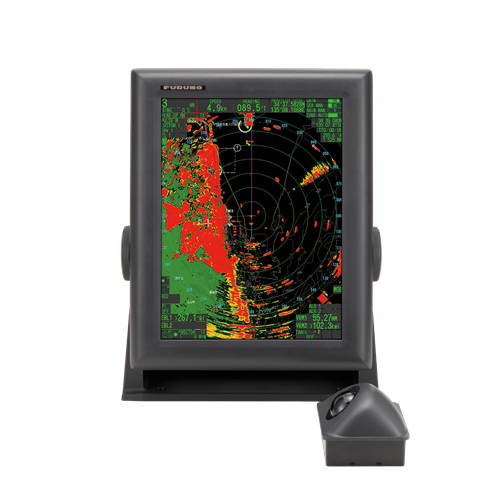

12 kW Transmitter, 72 NM Radar System with 15" Color LCD Display (Portrait or Landscape), less Antenna and Cable

Antenna Size4 ft or 6 ft

Antenna TypeOpen Array

BandX-Band

Chart TypeVector

Display Size15 inches

Display TypeColor LCD

Beam Width1.9 degrees or 1.4 degrees

Power Usage24 VDC

Power Output12 kW

Range72 nm

View Support/Tech Info Find a Dealer

All prices shown are in USD. Prices are valid in US and Canada only.

Home Products FAR1416

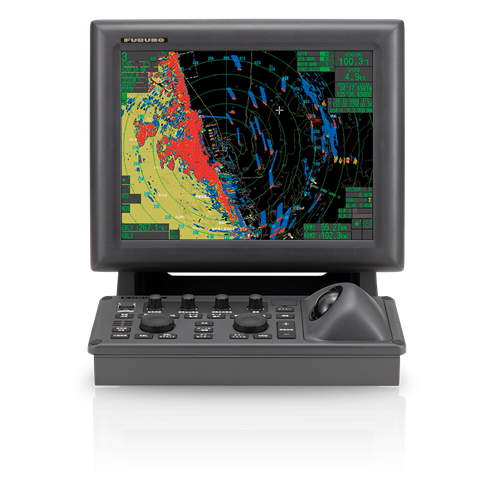

High-Performance Marine Radar with Chart Plotter

The FAR14x6 Radars are high-performance Radars with a 15" display that can be utilized in either a portrait or landscape orientation to fit your preference. When the Chart Radar presentation and chart map are overlaid, North-Up, Course-Up, and Head-Up direction modes are available. By overlaying Radar with high-quality MapMedia vector charts, you can easily recognize coastlines and buoys at a glance. Records of your vessel’s track points and waypoints will help memorize fishing points.

The FAR14x6 Radars utilize MapMedia vector charts including MapMedia C-Map, MapMedia Navionics, and MapMedia Fishing charts. Click here to view a refined search of compatible charts.

Simplified Installation and Straightforward Operation

The FAR14x6 Radar provides space-saving and straightforward installation, with the processor built into the display, offering superb rendering performance which enables smoother screen zooms and cursor movement. Straightforward operation can be achieved using a trackball and wheel menu selector, and simple operation is assured with “point-and-click” menu functionality.

Furuno's Legendary Performance and Safety-Enhancing Features

Fast Target Tracking enables instant speed vector displays for tracked targets, making accurate estimation of a targets course and speed a breeze. Furuno's Target Analyzer function instantly alerts you to dangerous targets, improving situational awareness by displaying these targets in easy-to-see colors, while ACE (Automatic Clutter Elimination) drastically improves sea and rain clutter removal.

  • Product Consists Of
  • Choose an Antenna Array
  • Cables
  • Miscellaneous Accessories

Product Consists Of

Product Consists Of

$4,400.00
15" CLR LCD RDR DISP FAR14X6
$1,900.00

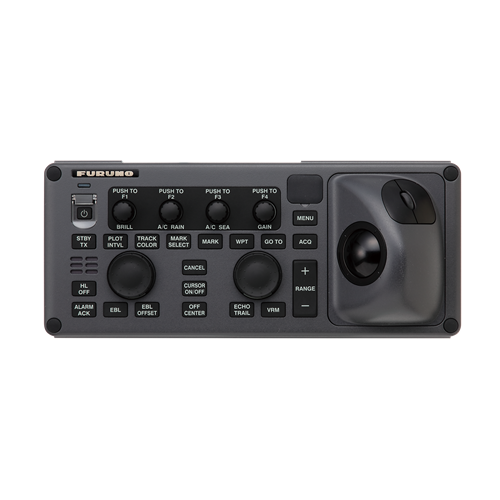

KBD/TRKBL/ CTRL UNIT FAR14X6
$5,320.00
ANT GEARBOX 12KW 24RPM FR8125

Choose an Antenna Array

Choose an Antenna Array

$1,095.00

Antenna, 4 Foot Open Array

$1,695.00

Antenna, 6 Foot Open Array

Cables

Cables

$140.00
NMEA Cable, 2 x 6 Pin Connector, 5 Meters
$125.00
NMEA Cable, 2 x 6 Pin Connector, 10 Meters (Null)
$55.00

NMEA Cable, 1 x 6 Pin Connector, 5 Meters

$105.00
6 PIN NMEA CBL ASSY 15M
$86.00
NMEA2000 Heavy Cable, 1 Meter, Male-Female connectors
$110.00
NMEA2000 Heavy Cable, 2 Meter, Male-Female connectors
$180.00
NMEA2000 Heavy Cable, 6 Meter, Male-Female connectors
$60.00
NMEA2000 Heavy Cable, 1 Meter, Female connector + Pigtail
$62.00
NMEA2000 Heavy Cable, 2 Meter, Female connector + Pigtail
$150.00
NMEA2000 Heavy Cable, 6 Meter, Female connector + Pigtail
$390.00
Radar Antenna Cable for FAR1513, 10 Meter, RW00224
$410.00
Radar Antenna Cable for FAR1513, 15 Meter, RW00224
$630.00
Radar Antenna Cable for FAR1513, 20 Meter, RW00224
$820.00
Radar Antenna Cable for FAR1513, 30 Meter, RW00224
$55.00
NMEA2000 Micro Cable, 1 Meter, Female Connector + Pigtail
$80.00
NMEA2000 Micro Cable, 2 Meter, Female Connector + Pigtail
$70.00
CBL NMEA2K MICRO-F 6M S-END
$50.00
NMEA2000 Micro Cable, 1 Meter, Male-Female connectors (straight)
$60.00
NMEA2000 Micro Cable, 2 Meter, Male-Female Connector
$80.00
NMEA2000 Micro Cable, 6 Meter, Male-Female Connector

Miscellaneous Accessories

Miscellaneous Accessories

$225.00
Handheld Remote w/ 5 Meter Cable
$520.00
Trackball Control Unit, FMD3100
$365.00
FLUSH MOUNT KIT OP03-240 RDP155

Recommended Additions

  • FA170

    $3,795.00

    Class A AIS Transponder w/ 4.3" Color LCD Display

    Details
  • NAVPILOT 711C

    $2,895.00

    Self-Learning, Adaptive Autopilot - Single-Din Size Color Display

    Details
  • LH5000

    $995.00
    30 Watt Loudhailer with LCD
    Details
  • GP33

    $745.00

    GPS/WAAS Navigator with 4.3" Color LCD, w/6M NMEA2000 Cable

    Details
  • SC70

    $4,995.00

    High accuracy Satellite Compass with a compact 2-sensor antenna. Uses GPS, Galileo and/or GLONASS satellite systems to ensure the highest precision and coverage. 0.4 degree course accuracy

    Details

FAR14x6 Brochure

For more information, including dimensions and product specifications, download the brochure.
