SS60-SLTD/20
MSRP: $400.00

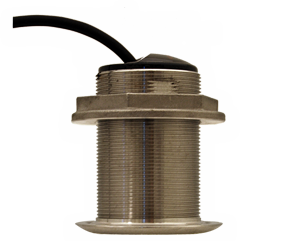

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element
Beam Angle45 and 12 Degrees
Frequency50 and 200 kHz
Housing TypeStainless Steel
Install TypeThru Hull
Power Rating600 W
Prices and Specifications Subject to Change Without Notice.
All prices shown are in USD. Prices are valid in US and Canada only.
Transducer Features
If a thru-hull flush-style transducer is called for, the Tilted Element SS60-SLTD/20 will accommodate a deadrise angle between 16° and 24°. This transducer compensates for deadrise by angling the element inside the housing. The transducer is labeled with an arrow on top of the housing that should point towards the keel, whether it is installed to port or starboard. This ensures that the tilted element within the housing is given the correct orientation.
Standard Features
- 600 Watts
- 50/200 kHz
- 45/12 degree Beam Angles
- Stainless Steel Thru Hull with Temperature
- 30 Foot Cable with 10-Pin Connector
